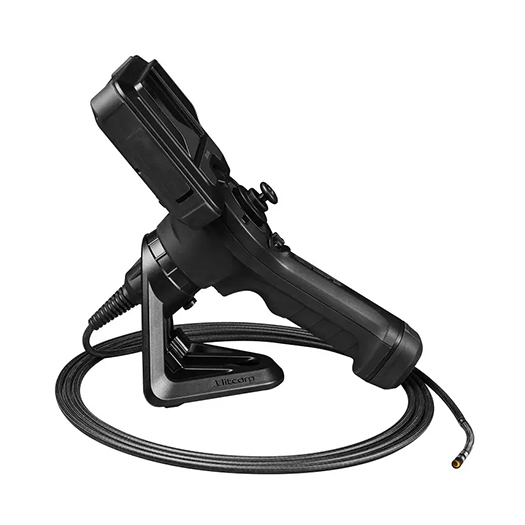

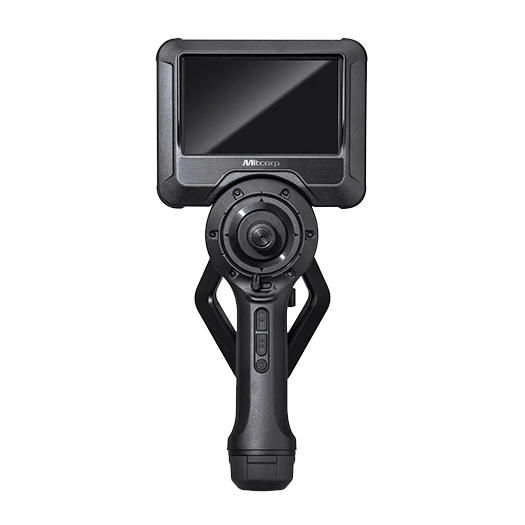

X750 Articulated Industrial Videoscope

X750 is a High-Performance Industrial Articulated Video Borescope for demanding customers who need Articulated probes with Flexibility and Power on the go.

X750 Industrial videoscope is used for Inspection of Automotive, Aircraft, Aerospace, Process Industries, Power Generation, Wind turbines, Boiler Inspections, Construction & Security / Rescue. It is lightweight, rugged, and provides high-resolution images and advanced imaging functions that allow workers to fulﬁll their tasks in even the most challenging environments.

The X750 High-performance Articulated Videoscopes are in association with MITCORP, Taiwan - used by worlds leading manufacturers, oil/gas sector, automotive, wind farms, Industrial MRO , amongst other users.

All X750 Articulated Insertion Probes are tungsten braided, resistant to heat up to 100°C and are corrosion resistant. Tungsten braided probes are also scratch & abrasion resistant and waterproof upto 1-meter depth for 30 minutes with an IP67 environmental rating.

The X750 control console includes a powerful Backside Camera with 2560x1440 pixels giving you the ability to take photos from distances of objects being inspected and for record keeping for situation analysis & reporting.

The X750 Video Borescope can link with mobile devices via the Videoscope Now Mobile App. The app lets you control the X750 remotely and download photos and videos directly onto your mobile device.

The built-in GPS function allows you to tag images and map them out in our Insight software, for outdoor use. As an example, in large areas being inspected such as wind farms or transformer installation sites, allows categorization and Indexing of difficult inspections.

Features

Flexibility- Interchangeable probes improve productivity and give you the necessary ﬂexibility for even the most complex applications
360° Articulated Probes, Bending Angle upto 140°. Super Resolution & Fine Image Quality
One-Handed Operation- The handy design, the shoulder straps, & the roll-up tubes of the X750 allow for one-handed operation.
Rechargeable Li-ion Batteries
Wi-Fi, HDMI, USB type C output supported
Videoscope Mobile App for remote viewing
GPS mark on photos
5” full-touch screen
Additional Backside camera with GPS for capture of objects being inspected
Advanced file management through X750 software.

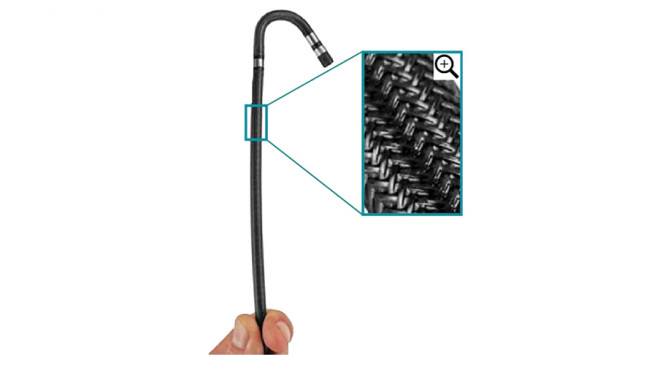

Temperature & Scratch Resistant Tungsten Braided Probes

All X750 Articulated Insertion Probes are tungsten braided, resistant to heat upto 100°C and corrosion resistant. Tungsten braided probes are also scratch & abrasion resistant and waterproof upto 1 meter depth for 30 minutes with an IP67 environmental rating

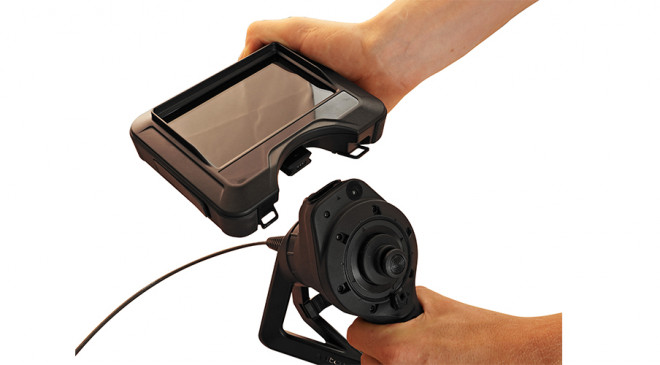

Flexibility

Interchangeable probes improve productivity and give you the necessary flexibility for even the most complex applications. Interchangeable probe options include 3.9mm & 6.0mm dia probes in various configurations.

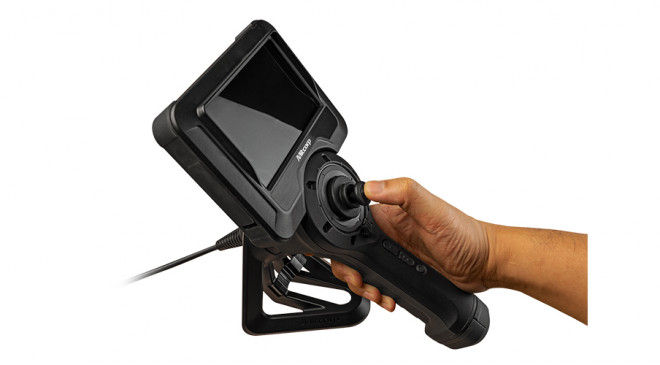

One Handed Operation

The handy design, the shoulder straps, & the roll-up tubes of the X750 allow for one-handed operation. Joystick Control for 360° Probe Operation

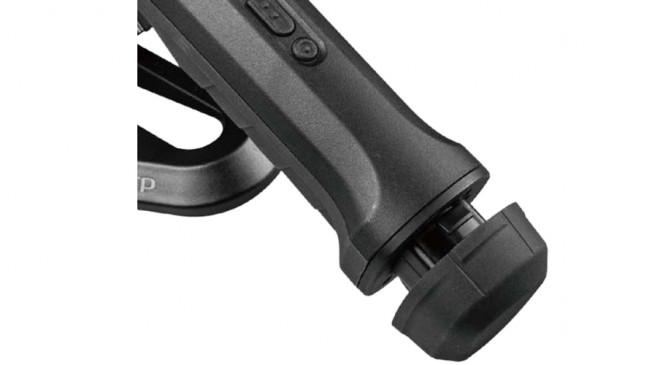

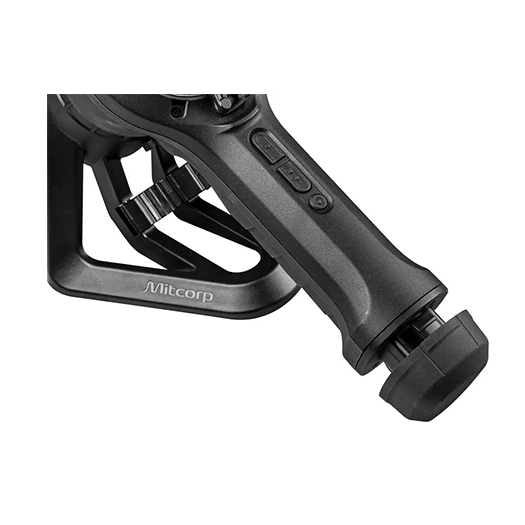

Rechargeable Li-ion Batteries

2 x 3 hours operation per battery Interchangeable. 1 Mains + 1 Spare Battery provided

Specification

X750 Control Console Unit
Dimension (LxWxH)	327.5mm x 152.8mm x 201.3mm
Weight	1230g (based on 2 m tungsten tube)
Water Resistance	IP54 (whole set assembled)
Display	5 inches / detachable touchscreen / 800x480 resolution
Function Buttons	Power; Reset (pin button)

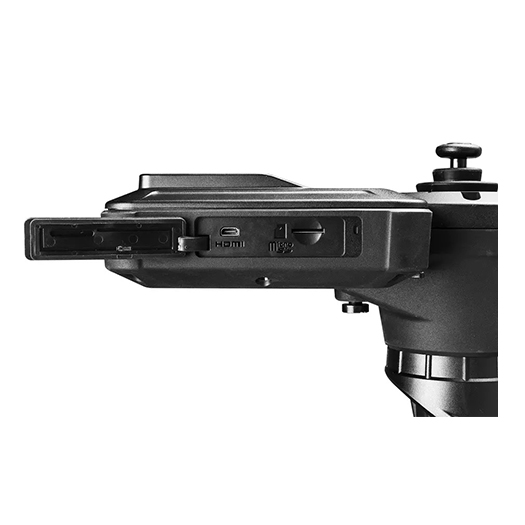

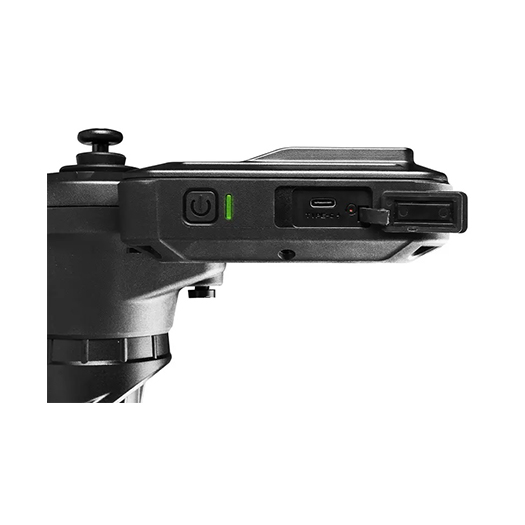

I/O Port	Micro-SD memory card slot USB Type-C (power in /data out) Mini-HDMI (AV output)
Tip Temperature on screen	60°C / 80°C / 100°C - 3 Level Warning
Wi-Fi	802.11b/g/n
Mobile App	VideoscopeNow
LED Indicators	Green - working / fully recharged, Red - low power / recharging
Microphone	Built - in (on/off switch in settings menu)
Backside Light	LED
Backside Camera	2560x1440.JPG
GNSS	GPS, GLONASS Dual Mode
Joystick
Articulation	Full ways mechanical control (4 way)
Function Buttons	4 Buttons: Brightness + / Brightness - / Snapshot /Record / Custom Self - Deﬁnition
Articulation Control	Joystick/ Lock - Stop & Go
Battery (One Piece)	4900 mAh replaceable Li - ion Battery
Working Time	3 Hours of Operation (with 2m / 3m ; decreases with longer probes)
Working Temperature	Battery powered : -10°C~45°C. Battery charging: 0°C~40°C
Battery /Charger Set included
Dimension	117.5x 76.8x 69.7mm
Weight	Full Set (Batteries w/Charger Set): 393g; Battery 113g; Charger Set: 165g
Charging Time	6 Hours for 2 Batteries / 3 Hours for 1 Battery
LED Indicator	Red: Charging / green: Full Charged
# of Batteries included	2

360° Articulation Probes
Option Items	60D4W-F-TU-M	60D4W-F-TU-F	39D4W-F-TU-M	39D4W-FS-TU-M
Probe head diameter	6.0mm	6.0mm	3.9mm	3.9mm
Probe head length	19.3mm	19.3mm	13mm	21.6mm
Direction of View	Front view	Front view	Front view	Dual View: Front view + 90o Side view
Illumination	Front / Side LEDs	Front / Side LEDs	Front LEDs	Front + Side LEDs
Field of View (FOV)	90°	90°	120°	120°
Depth of Field (DOF)	10mm ~100mm	25mm~∞	5mm~100mm	5mm ~100mm
Still image resolution (.jpg)	2560x1440		1600x1600
Video resolution (.mov)	2560x1440		1600x1600
Length Options:	3meter (Default) Options : 2m/5m/7m - Build to Order		3 meter (Default) Option 2 : 1.5 meter
Articulation	4 way
Articulation angle	2m / 3m: Full way» 120° : 5m / 7m: Full way >80°		Full way >140°	Full way >120°
Mirror Set	Side Mirror Dual Mirror		N/A
Probe head material	Stainless steel
Probe material	Tungsten braided
Joystick console dimensions	(WxDxH) 139.4x193x84.2mm (w/o SR and insert tubes)
Joystick buttons	Brightness +, Brightness -, Snapshot / Record
Lock move	Joystick / Unlock switch on console
Operating temperature	In Air:-10~100°C, In water: 10~30°C
Dust and water proof	Joystick console: IP 54; Probe : IP67 , Insert Tube: under water 1m for 30 minutes
Relative humidity	Max 95% non-condensing
Liquid resistance	Operable when exposed to machine oil, light Oil or 5% saline solution
Storage temperature	10°C~70°C

FAQ

Do you have a question which we can answer for you? Click here if Yes

How many probes are offered with X750 Articulated Industrial Videoscope?

2 probes are offered with X750; 6.0mm probe & 3.9mm probe.
What is the size of the display?

X750 features a 5" high-resolution LCD touch- screen
What is the battery operation time?

X750 comes with 2 batteries ( 1 Mains + 1 spare battery provide) & each battery provides 3 hrs of operation.
