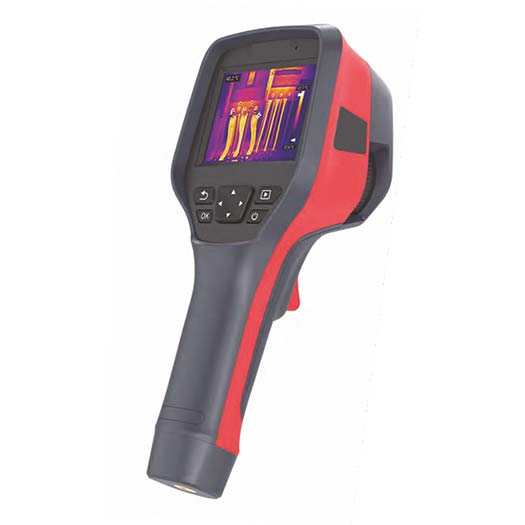

S300 Handheld Thermal Imaging Camera

S300N-M Manual Focus Thermal Imaging Camera

S300N-M Manual Focus Thermal Camera is a powerful tool for proactive maintenance in Power Distribution Networks. With 256×192 thermal resolution and 24.8°×18.7° FOV, S300N can display rich details at distances upto 12meters, An ideal instrument for Breaker panels , automotive and equipment inspection and relatively smaller sized objects/targets - to check for abnormality in temperature.

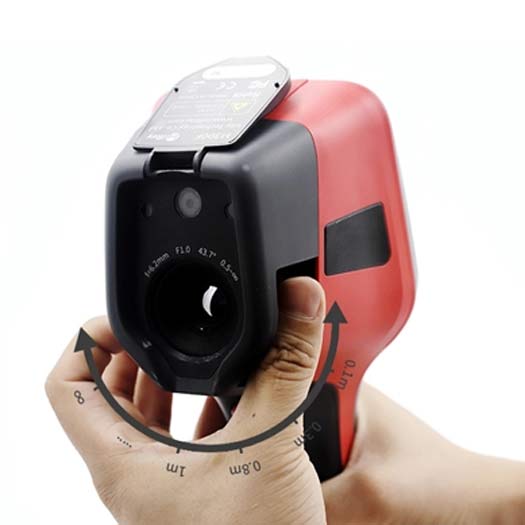

• Manual focusing provides clear images of targets from far to near, Especially for observing tiny near targets so the lens equipped on S300N thermal imaging camera is close to the quasi macro level, tiny targets at the
size of 1 mm (at the distance of 0.1m) can be distinguished.
• Both IR & visible camera images acquired together with temperature data
• Digital 4 x zoom

S300N IR thermal camera offers Auto Central spot measurement with hot & cold spot tracing. S300N infrared camera is offered with PC analysis software to perform real-time monitoring of thermal imaging using device directly on PC by connecting through USB cable. Data can also be downloaded for further analysis.

Comes with a built-in 5MP camera, S300N thermographic camera provides amazing image quality & allows enlarging & cropping the image without loosing the actual quality at extent.

Features

Resolution- 384X288
Larger Screen Size
Thermal Sensitivity (NETD)- <35mK
Video Capturing
4 Imaging modes- Thermal imaging, Thermal fusion, PIP, visible imaging
7 color Pallets
5 MP Camera
Temperature measurement range: -20℃~550℃

Specification

Model	S300N-M
Detector Type	Uncooled VOx infrared detector
Detector Resolution	256x192
Spectral Band	8~14 μm +/-0.5mm
Pixel Size	12μm
Thermal Sensitivity (NETD)	<40mK
IFOV	1.71mrd
FOV	24.8°×18.7°
Frame Rate (In Hz)	25
Focal Length (In mm)	7
Focusing Mode	Manual focusing
Measurement Range	Range 1: -20 to +150 ℃ ; Range 2: 100 to 550 ℃
Measurement Accuracy	±2°C or ±2%
Measurement Resolution	0.1℃
Measurement Mode	Central spot measurement/Hot and cold spot tracing and temperature display
Custom Measurement of Points, Lines, and Areas	10 points/10 lines/10 areas/highest point, lowest point tracking/center point
Measurement Units	°C, °F, Kelvin
Emissivity Setting	0.01~1.00, step size 0.01
Distance Setting	0.5~12m, step size 0.5m
Image Mode	IR/Visible light/PIP/Dual-spectrum fusion
Palette	10
Alarm Mode / Temperature Alarm	Image alarm/Support temperature alarm
Visible Light Camera / Laser Pointer	Support Laser Pointer
Visible Camera Resolution	5 MP
Digital Zoom	1x, 2x, 4x
Photo/Video Storage Function	IR JPG picture + Visible Light JPG picture with temperature data; video without data
Voice annotation	Yes
Image naming	Auto/manual input, QR code scanning
Display Screen Size (Inch), Resolution	3.5-inch touch screen (640×480)
Data Storage	Standard 32GB Micro SD card
Battery Type	Rechargeable and dismountable lithium-ion battery
Power Supply	USB Type C
Connection Type	Type-C; WiFi
Battery Operation Time	4h
Charging Time	About 3h
Power Management	Automatic shutdown: 5 min, 10 min, 20 min, non-automatic shutdown
Analysis Software	PC & APP
Operating Temperature \| Storage \| RH %	-10~+50°C \| -20~+60°C \| 10%~95% RH
Environmental \| Drop Protection	IP54 \| 2m
Impact and Vibration	Impact 25g (IEC 60068-2-27); vibration 2.5g (IEC60068-2-6)
Dimensions (HxWxD) \| Weight	258.4 × 105.1 × 102.3 (mm) \| 660g
Product Supply includes	Power adapter, Charging bay, Battery (1 mains +1 spare), Data cable, SD card, User manual

Experience

Nimble Machines Uses S300N-M Manual Focus Thermal Imaging Camera
Thermal error prediction in CNC hobbing machine. ...

Read More

Adani Electricity Mumbai uses S300N Thermal Imaging Camera
Adani Electricity Mumbai required a handheld solution that could detect hotspots quickly, accurately, and in real-time, to ensure the safety and reliability of their power distribution network. They needed a portable device that could be easily used by LT & HT engineers to perform spot checks on bus bars, panels, and junction boxes. ...

Read More

FAQ

Do you have a question which we can answer for you? Click here if Yes

What is the screen size of S300?

3.5’’ LCD touch screen
What is the field of View (FOV) of the instrument?

56°×42.2°
What is the temperature range of S300?

The temperature range of the S300 infrared thermal camera is -20~550℃
What is the IR resolution of the device?

384×288 pixels
Is the instrument drop proof?

Yes, This device is 2m drop proof.
What is thermal sensitivity of S300?

<35mK
How many image modes are available?

4 Image Modes- Thermal imaging, fusion, PIP visible imaging,
