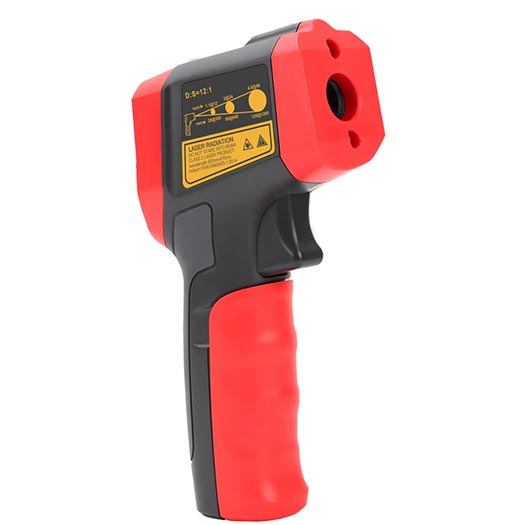

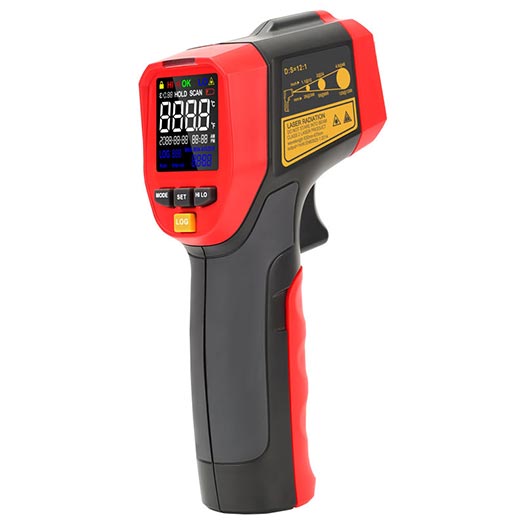

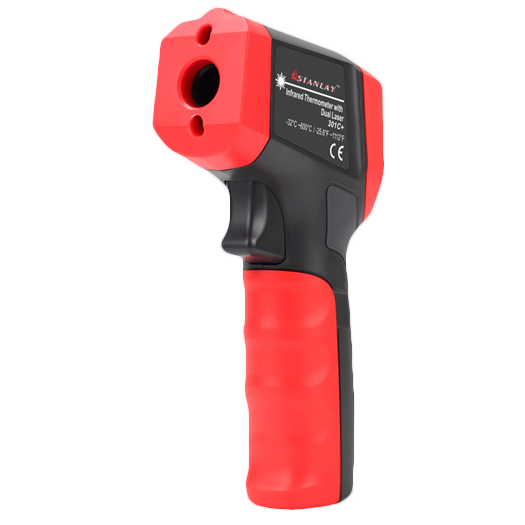

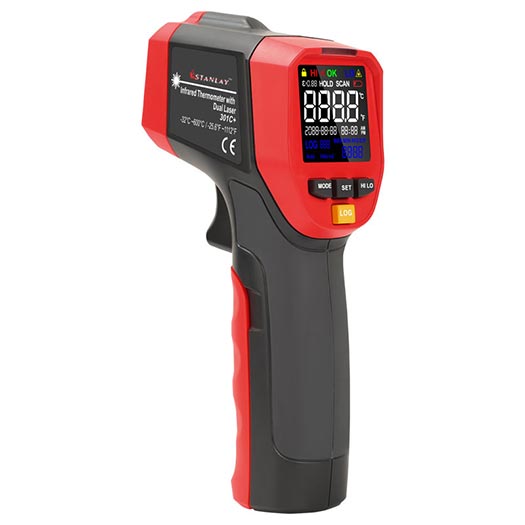

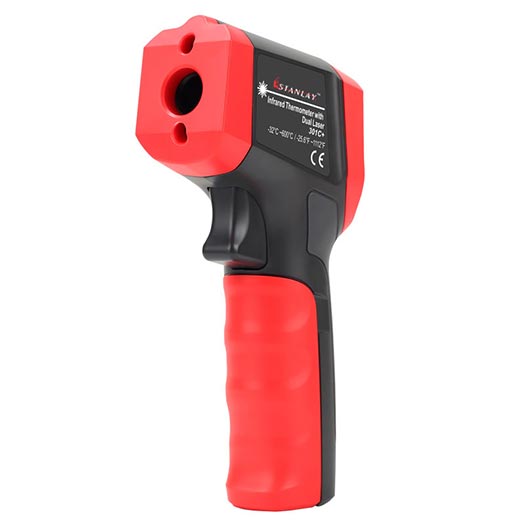

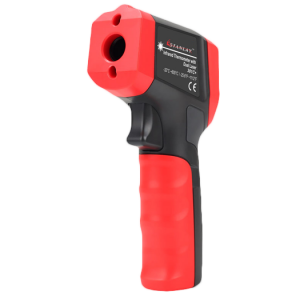

301C Plus Digital Infrared Thermometer

301C+ infrared thermometer is a durable infrared thermometer with high accuracy/energy repeatability. 301C+ has intelligent features such as adjustable high and low temperature, alarm and fast response time of 250ms to quickly find out anomalies and scheduled measurements to allow mount on tripod for continuous measurements. 301C+ is applied to power distribution/transportation equipment inspection, HVAC/equipment maintenance and vehicle troubleshooting.

Specifications
Product Specification

Model

300C+

Temperature range

-32~600°C

Accuracy

±1.5% or ±1.5°C

D:S ratio

12:1

Response time

≤250ms

Emissivity

0.1~1 Adjustable

Spectral response

8-14μm

Laser type

Class2

Laser Power

<1mW

Laser wavelength

630~670nm

Backlight Display

30mm x 30mm

Display Type

LCD EBTN Color

Features

Temperature Data Hold

√

Max/Min/Diff/Avg

√

High/Low LED & Audio Alarm

√

Data Storage

99 data sets

USB Interface

√

Scheduled measurement

√

Tripod mounting hole

√

General Characteristics

Power

9V battery

Product weight

204g

Product Size

160mm x 74mm x 48mm
Features
Features
  • 12:1 D:S ratio
  • Adjustable emissivity 0.1~1.0
  • ±1.5 0C temperature measurement accuracy
  • User defined visual and audio alarm
  • High contrast EBTN color display
  • MAX/MIN/AVG/DIFF/Hold modes
  • Dual lasers
  • Temperature recording up to 99 groups
  • Date/time display
  • Time scheduled measurement


Product Info Downloads
Product Info Downloads

Product Information files contain the essential technical detail you need to make informed decisions on any particular product. Simply click on a title to download a PDF copy of that file. If you wish a hard copy of a brochure, technical advice on any product or a demonstration then please contact us. We're always happy to help!

Title
File Type
File Size
Last Uploaded
Product Datasheet
application/pdf
481.61 KB
August 13 2019 10:51:41
