RIS Hi -Pave

  • Product Description
  • Specifications
  • Features
  • Software

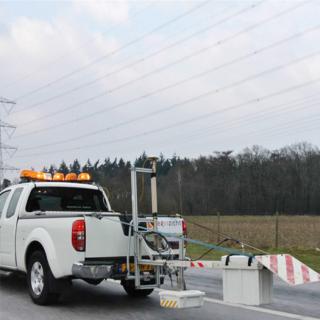

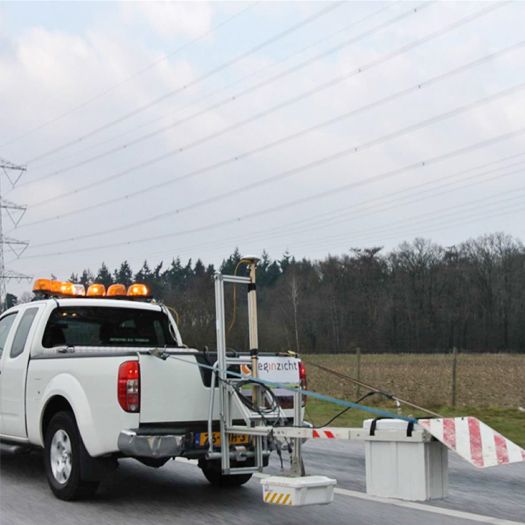

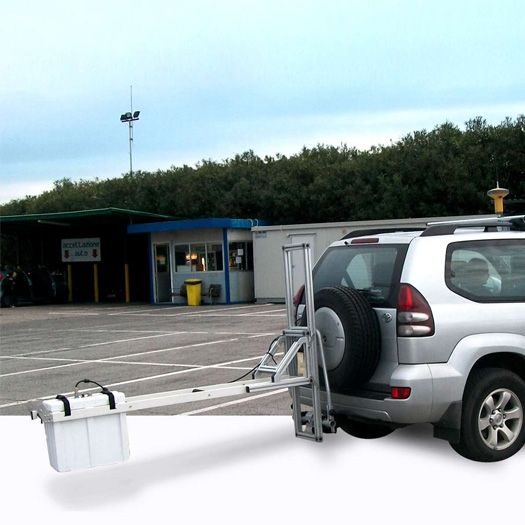

RIS Hi-Pave, is a ground penetrating radar solution for high speed complete Road  & Runway Assessment Survey, operating with a single or several antennas  at the same time. Provides  complete asessment of road conditions, such as:



  • Pavement thickness measurement
  • Surface, base and sub-base road course assessment
  • Detection of cavities, voids and delamination
  • Location of cracks
  • Detection of wet areas
  • Airport runway condition assessment.


Used with GRED 3D an advanced processing software designed for easy and efficient 3D interpretation of data. It allows easy and fast interpretation of a road & runways structure, different road layers, core samples and underground anomalies. The GPR data can be saved together with a GPS file to match a radar scan with absolute coordinates. The GPS positions can be easily loaded onto software such us Google Earth

Technical Specifications :
Data Logger Panasonic CF-19 (or alternatively any user's Windows PC with Ethernet LAN interface)

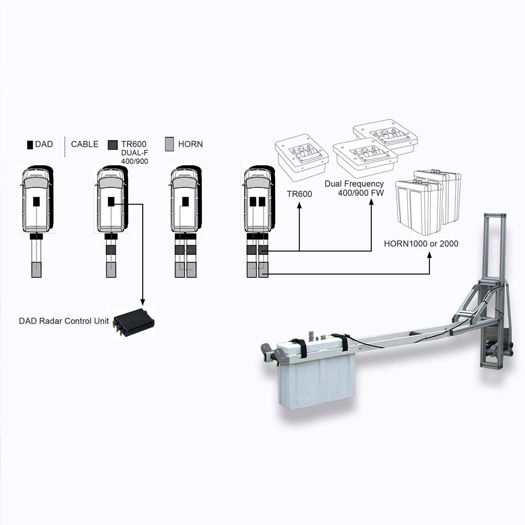

Radar Control Group • Standard configuration: 1xDAD MCh FastWave
• Fast configuration : 2xDAD MCh FastWave + Synchro Unit
Number of Channel Up to 4
Antenna Frequency • Air Launched Antenna : HR1000 (1000 MHz)
• Air Launched Antenna : HR2000 (2000 MHz)
• Dipole Antenna : TR600 (600 MHz)
Antenna Weight (Kg) HR1000 or 2000;6.5
TR600:3
Antenna Dimensions (L x W x H) Air Launched antenna; 53 x 23 x 50 cm
Dipola Antenna ; 20 x 26 x 20 cm
Positioning Metric wheel and/or GPS Interface
Collection Speed Up to 250 Km/h @ 10 scan/meter, 512 samples
Video Camera Synchronized radar and video data
Environment IP 65
Software Specifications :
Processing Software GRED 3D includes:
• 3D view (B-scan and C-scan)
• Layers analysis and view
• Manual or automatic layer tracking
• Core insertion
• GPS positioning from any NMEA CGA output
• CAM View
• Automatic and Manual data processing
• Iso-surface map
• Graphic comments and parameters
• Color scale/palette
• Propagation velocity estimation
• Data Processor with all the basic filters
Output Data Excel, ASCII, HDF5, jpg, bmp

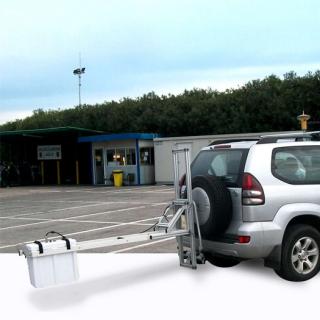

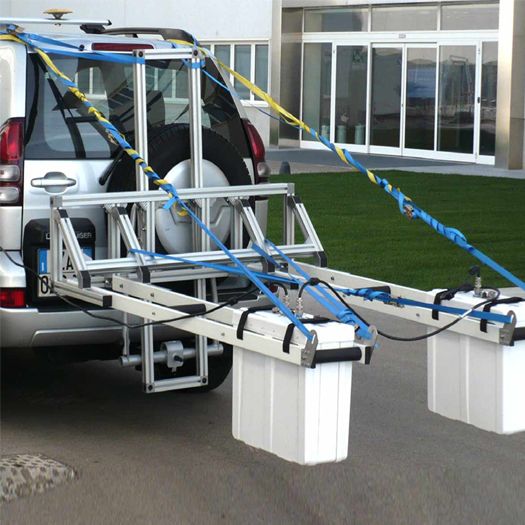

  • Horn Antennas: Hi-Pave is equipped with air launched horn antennas that can be used without contact with the surface. As a result the operator is able to achieve high speeds without damaging the antenna.

  • Speed: Hi-Pave is the fastest ground penetrating radar for road evaluation. It can reach up to 260 Km/h with a single antenna configuration and 10 cm data sampling or 130 km/h with a dual antenna configuration and 10 cm data sampling. This is 3 times more than the nearest competitor.

  • Semi-automatic procedure for layer recognition: The post processing software uses a semi-automatic procedure to collect information of road subsurface layers.

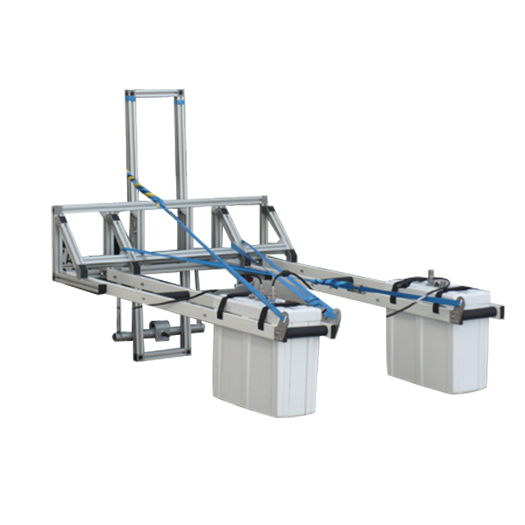

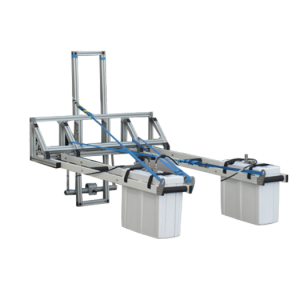

  • Modular: Hi-Pave can operate with up to 8 antennas in a chain connection using the same control unit. This can also include lower frequency antennas (typical 600 MHz) for grade and subgrade evaluations.



GRED is an advanced processing software specifically designed for the easy and efficient 3D interpretation of IDS GPR data. It includes special tools which allows an easy and fast interpretation of a road’s structure, such as

  • automatic or manual layers insertion
  • core sample insertion for data calibration and thickness confirmation
  • 2D and 3D tomography for an immediate visualization of buried objects (e.g.: buried pipes and utilities, cavities etc.).





GRED’s windows clearly show radar maps, different road layers, core samples and underground anomalies.

The GRED processing software allows simultaneous viewing of different radar maps and enables the sections to scroll automatically. The software can identify the various layers using both automatic and manual procedures, defining the layer thickness which can be verified and confirmed by inserting core samples.

IDS radar data is compatible with the RoadDoctor software supplied by Roadscanners and with GPRSlice.

The GPR data can be saved together with a GPS file to match a radar scan with absolute coordinates. The GPS positions can be easily loaded onto software such as Google Earth.
