The STANONE RPIC2 Pipe Inspection camera system is a ruggedized, professional video inspection camera equipped with a 7'' LCD monitor with DVR and 20m rotatable cable reel.
|
Suitable for Pipe, Inner dia (mm) |
Ø30m to Ø150m |
|
Traverse through 90 d bends of dia |
50mm or higher |
|

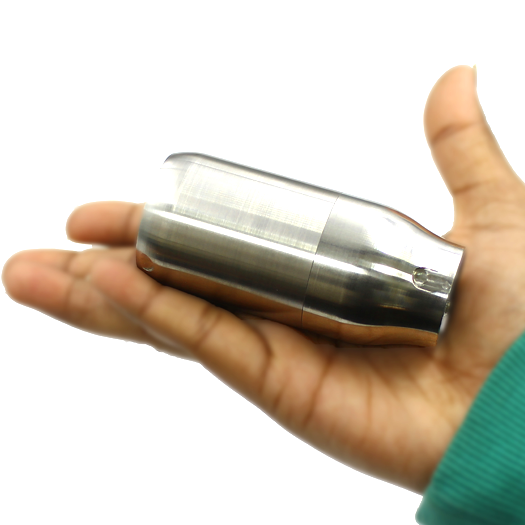

Camera Head |
|
|
Self-leveling Camera |
Yes |
|
camera Head Size |
Ø23mm* 45mm (Main body) |
|
Camera Type |
Sony CMOS, 420 TV- lines |
|
View Angle |
120 ÌŠ |
|
Focus Distance |
20cm |
|

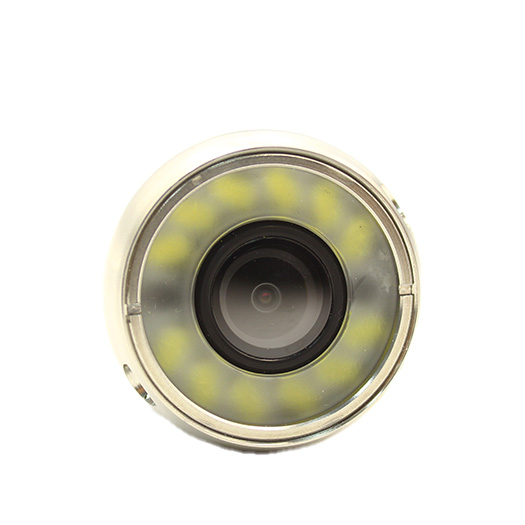

Front Lens |
Sapphire Glass |
|
Waterproof, Environmental Rating |
IP68 Up to 20m under water |
|
LED’s |
12 High bright LEDs |
|

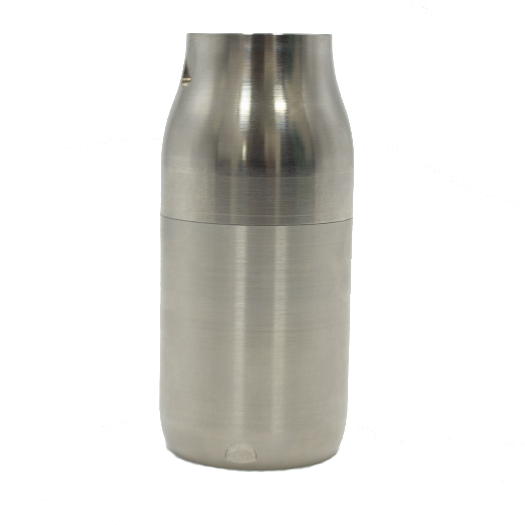

Camera Material |
Stainless Steel #304 |
|
Roller Skid |
Mini roller skid dia 46mm Universal Roller skid dia 80mm |
|
Cable Wheel |
|
|
Rod Material |
Fiberglass rod |
|
Wheel Material |
Stainless steel wheel |
|
Rod Length options |
20m, 30m |
|
Distance meter count |
Built in encoder |
|
Rotation (on screen display) |
Slip Ring |
|
Rod Diameter |
Ø6.8mm |
|
LCD Display and DVR |
|
|
LCD Size |
7- inch 16:9 Super bright HD color LCD screen |
|
LCD Resolution |
800 x 480 pixel |
|
Mirror and Flip |
Support image mirror and flip |
|
Video Resolution |
PAL 720 x 576 25fps Max. |
|
Video Encoding |
H.264 |
|
Wireless Keyboard (For Data entry) |
Yes |
|
Monitor Installation |
N/A |
|
Photograph / Snapshot |
Yes |
|
Video & Audio Recording |
Yes |
|
Output |
TV and Audio Output |
|
External Memory |
SD Card (up to 32GB) |
|
Data Output |
USB 2.0 to PC |
|
LED driver |
Built in dimmer |
|
Playback |
Photo, Video and Audio |
|
Language |
English + 8 Languages |
|
General Characteristic |
|
|
Power Supply |
12V DC charger |
|
Battery Capacity |
Li-on battery, 5200mAH, 7.4V |
|
Operating Time |
5 hours |
|
Power Adaptor |
Input: 110VAC~240V AC, Output: 12V DC 1200mA |
|
Gross Dimension & Weight |
55 x 44 x 35cms &17kg+/- 1.5kg |
Visual inspection of high pressure semi-flexible corrugated steel pipes used for oil & gas industries. Schlumberger...
Read More >>
Visual inspection of galvanized pipes to check welding defects inside the pipes in the range of...
Read More >>

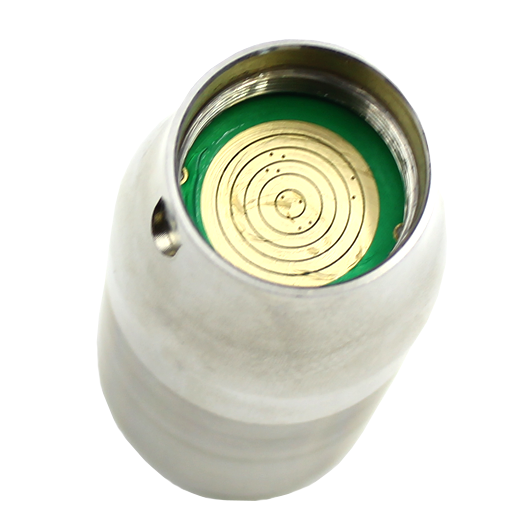

RPIC2 Upgrade kit: 38mm Camera
The RPIC2 camera can be updated from a 23mm camera to a 38mm camera self leveling.
