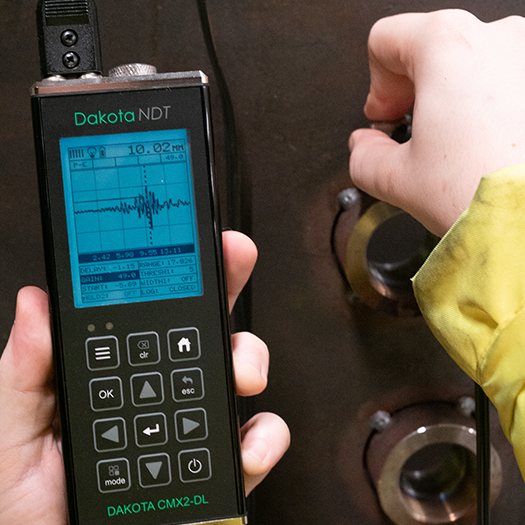

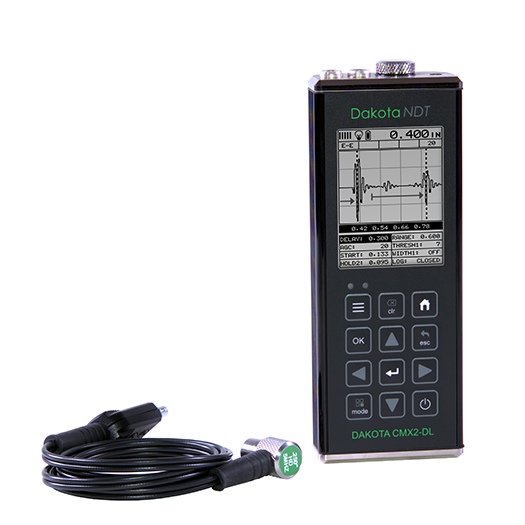

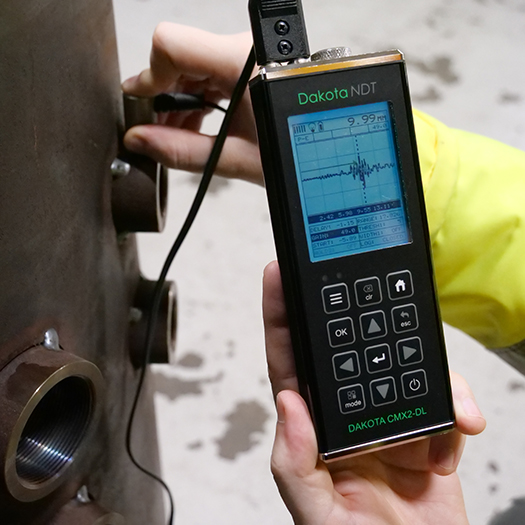

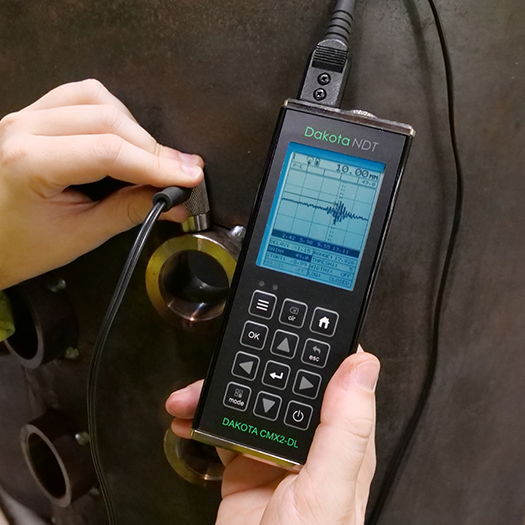

The Dakota CMX2-DL is a high-performance ultrasonic thickness gauge designed for accurate measurement of both material and coating thickness in a wide range of industrial applications. Engineered with advanced A/B scan technology, it provides detailed waveform and cross-sectional views, enabling precise inspection and reliable flaw detection.
Built on a powerful 100MHz DSP platform, the CMX2-DL delivers fast, consistent, and highly accurate readings, even in demanding environments. Its dual-channel pulser and receiver system ensures enhanced signal processing, while features like automatic gain control (AGC) and adjustable time-dependent gain improve measurement clarity and stability.
The device supports multiple measurement modes, including pulse-echo, echo-echo (thru paint), and coating-only measurement, making it a versatile solution for industries such as automotive, heavy engineering, manufacturing, and quality control.
Designed for field use, the CMX2-DL features a rugged, compact aluminum body, intuitive interface, and long battery life. With support for various transducer types and 4GB internal memory for data storage, it enables efficient inspection, documentation, and analysis on the go.
|
Features
|
CMX2-DL |  |
| Display Type | Grayscale | |
| Screen Resolution | 240 × 160 (1/8 VGA) | |
| Screen Refresh Rate | 25 Hz | |
| Visualization | Standard A/B Scan | |
| User Experience | Basic | |
| Battery Life | Up to 35 hrs | |
| Platform | 100 MHz DSP | |
| Channels | Dual Pulser & Receiver | |
| Pulse Repetition Rate | Up to 250 Hz | |
| Measurement Modes | P-E, PECT, E-E, E-EV, CT, PETP | |
| Gain Range | 110 dB with AGC | |
| Memory | 4 GB | |
| Transducer Support | Dual/Single (1–20 MHz) | |
| Connectivity | USB-C | |
| Build | Rugged Aluminum | |
| Best For | Standard industrial inspection |
The CMX2-DL is an advanced ultrasonic thickness gauge designed to simultaneously measure coating thickness and remaining metal thickness from a single side, making it ideal for corrosion monitoring, asset integrity management, and coating inspection.
Unlike standard gauges, the CMX2-DL can measure both coating thickness and substrate thickness in a single reading, eliminating the need for separate coating and thickness gauges.
Yes. Using Echo-Echo and Thru-Coat® technology, the CMX2-DL measures the actual metal thickness beneath coatings without removing paint or protective layers.
The CMX2-DL measures material thickness from approximately 0.63 mm to 500 mm (0.025" to 19.999"), depending on the material and transducer selected.
The instrument can accurately measure coating thickness while simultaneously displaying the remaining wall thickness of the base material, making it ideal for painted pipelines, tanks, and marine structures.
Yes. The CMX2-DL features a live A-Scan display, allowing inspectors to verify signal quality, validate measurements, and identify corrosion or coating-related anomalies.
A-Scan provides visual confirmation of ultrasonic echoes, helping inspectors distinguish between true readings, pitting corrosion, coating interfaces, and false signals.
Yes. The CMX2-DL includes extensive onboard data logging, allowing storage of thousands of readings, inspection routes, asset records, and historical corrosion data.
Yes. The instrument features high-speed Scan Mode (up to 100 readings per second), automatically capturing minimum thickness values to quickly locate corrosion hotspots.
Oil & Gas, Refineries, Petrochemicals, Offshore Platforms, Marine, Shipbuilding, Power Plants, Pipelines, Storage Tanks, and Asset Integrity Management sectors.
Yes. Its through-coating measurement capability makes it ideal for long-term corrosion monitoring programs and asset integrity inspections where coating removal is undesirable.

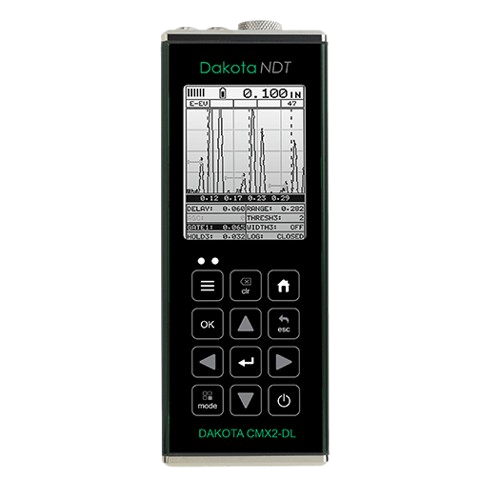

The CMX2-DL features a large backlit graphic LCD display that shows thickness values, coating thickness, A-Scan waveforms, inspection data, and setup parameters.
The instrument is typically supplied with a 5 MHz dual-element transducer, optimized for corrosion monitoring, coating measurement, and wall thickness inspection.
Yes. The combination of A-Scan visualization and Scan Mode enables accurate detection of pitting, erosion, and localized wall loss in critical assets.
The CMX2-DL combines coating thickness measurement, substrate thickness measurement, A-Scan verification, through-coating inspection, data logging, and corrosion monitoring into a single instrument, reducing equipment costs and inspection time.
