Oscilloscope

  • Product Description
  • Specifications
  • Features

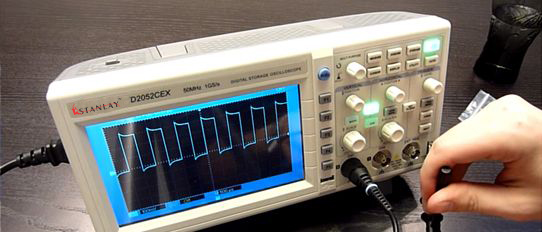

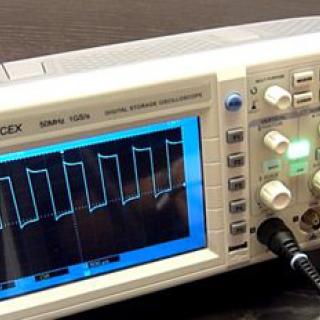

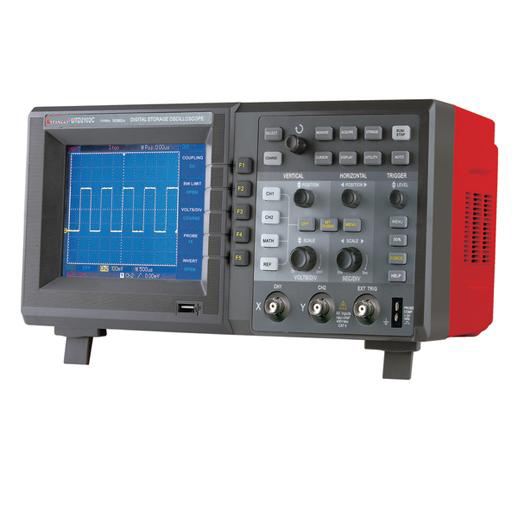

Oscilloscope is an electronic test instrument that allows observation of constantly varying signal voltages, usually as a two-dimensional plot of one or more signals as a function of time. Non-electrical signals such as sound or vibration can be converted to voltages and displayed.

Oscilloscopes observe the change of an electrical signal over time, such that voltage and time describe a shape which is continuously graphed against a calibrated scale. The observed waveform can be analyzed for such properties         as amplitude, frequency, rise time, time interval, distortion and others.

Dual trace Oscilloscopes having bandwidth of 100MHz allows observation of constantly varying signal voltage.

Ideal for use in R&D Activities, Testing House, Electronics Assembly lines, Electro Mechanical Equipments, Signals & telecommunications amongst others.

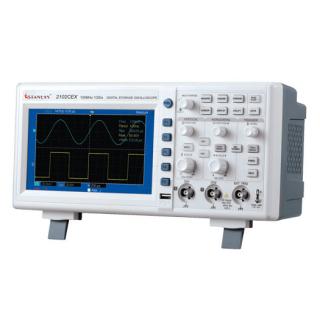

  ST-2042 CE ST-2062 CE  ST-2102 CE ST-2025CL  ST-2052CL
Channels 2 2 2 2 2
Bandwidth 40MHz 60MHz 100MHz 25MHz 50MHz
Rise Time  ≤ 8.7 ns ≤5.8 ns  ≤3.5 ns  ≤ 14ns  ≤ 7ns
Memory Depth 25kpts
Waveform Acquistion Rate ≥ 2000wfms/s
Sample Rate  1GS/s  250Ms/s 500Ms/s
Vertical Sensitivity  2mV ~ 5V/div 1mV ~ 20V/div
Scan Time Base 5ns/div ~ 50s/div  10ns/div ~ 50s/div  5ns/div ~ 50s/div
Storage Setup, Wave, Bitmap
Trigger Modes Edge, Pulse, Video and Alternate
Ports ,Interface Standard: USB Device, USB Host, PASS/FAIL. Optional : LAN USB OTG, Pass/Fail  USB OTG
Mathematics  Add, Subtract, Multiply Divide, FFT
Applications College Education, R&D, Electronic product assemble line, Industrial Control etc.
Display 5.7inches 64k, Full Color LCD 320 x 240  7inches 64k, Full Color LCD 320 x 240
Conforms to  EN 61010 -031 : 2008
  150V CAT II - 1 X Position
  300V CAT II - 10 X Position
  • Dual trace Oscilloscopes having bandwidth of 100MHz.
  • Allows observation of constantly varying signal voltage.
  • Ideal for use in R&D Activities.
  • Ideal for use in Testing House.
  • Ideal for use in Electronics Assembly lines.
  • Ideal for use in Electronics Electro Mechanical Equipments.
  • Ideal for use in Electronics Signals & telecommunications.
