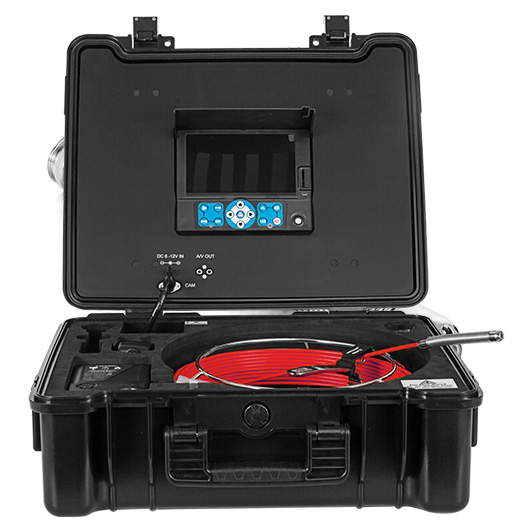

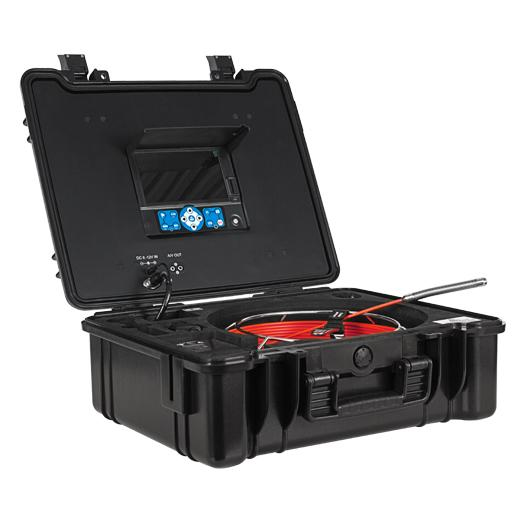

The STANONE IPC1 is a drain/pipe Inspection camera that comes with a mini 14mm camera head, a 7inch LCD monitor with DVR, a 20m rotatable cable reel with capability of being pushed into a 40mm dia. pipe and pass through 90 degree bend in a pipe for inspection of small pipes. It's widely used in video inspection of plumbing pipes, Drains, Duct, chimney, machinery and In-building ducting inspection. Suitable for smaller network of pipes.
|
Suitable for Pipe, Inner dia (mm) |
Ø20m to Ø40m |
|
Traverse through 90 d bends of dia |
35mm or higher |
|

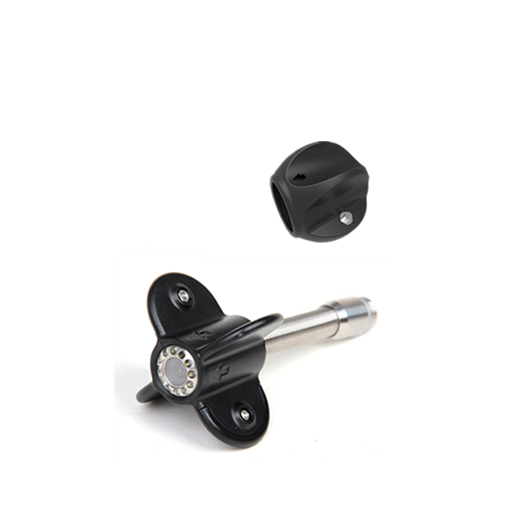

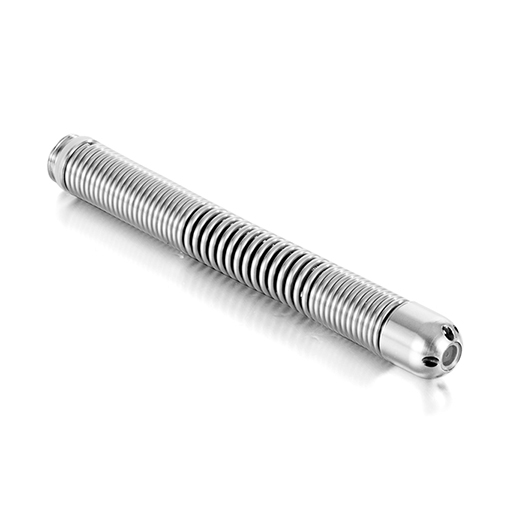

Camera Head |
|
|
Self-leveling Camera |
No |
|
camera Head Size |
Ø14mm* 14.5mm (Main body) |
|
Camera Type |
1/4" CMOS, 400 TV- lines |
|
View Angle |
90 ÌŠ |
|
Focus Distance |
10cm |
|
Front Lens |
Sapphire Glass |
|
Waterproof, Environmental Rating |
IP68 Up to 10m under water |
|
LED’s |
4 High bright LEDs |
|
Camera Material |
Stainless Steel #304 |
|
Roller Skid |
N/A |
|

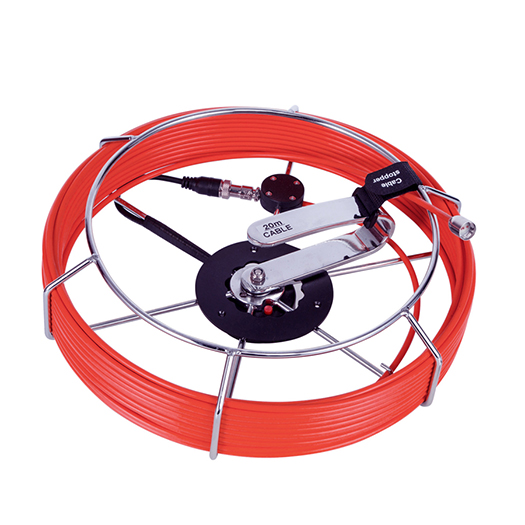

Cable Wheel |
|
|
Rod Material |
Fiberglass rod |
|
Wheel Material |
Stainless steel wheel |
|
Rod Length options |
20m |
|
Distance meter count |
Built in encoder |
|
Rotation (on screen display) |
Slip Ring |
|
Rod Diameter |
Ø4.8mm |
|

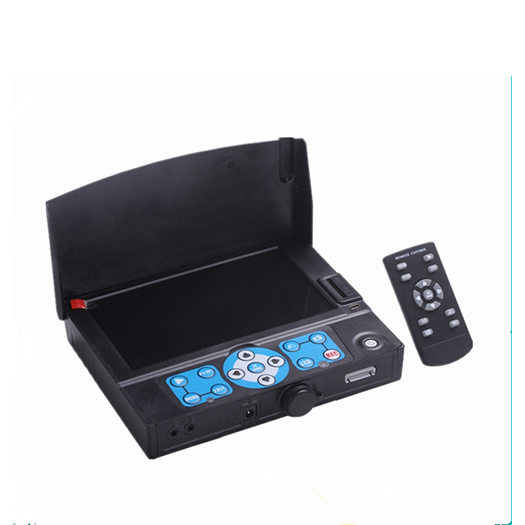

LCD Display and DVR |
|
|
LCD Size |
7- inch 16:9 Super bright HD color LCD screen |
|
LCD Resolution |
800 x 480 pixel |
|
Mirror and Flip |
Support image mirror and flip |
|
Video Resolution |
PAL 720 x 576 25fps Max. |
|
Video Encoding |
H.264 |
|
Wireless Keyboard (For Data entry) |
No |
|
Monitor Installation |
N/A |
|
Photograph / Snapshot |
Yes |
|
Video & Audio Recording |
Yes |
|
Output |
TV and Audio Output |
|
External Memory |
SD Card (up to 32GB) |
|
Data Output |
USB 2.0 to PC |
|
LED driver |
Built in dimmer |
|
Playback |
Photo, Video and Audio |
|
Language |
English + 8 Languages |
|
General Characteristic |
|
|
Power Supply |
12V DC charger |
|
Battery Capacity |
Li-on battery, 6600mAH, 7.4V |
|
Operating Time |
8 hours |
|
Power Adaptor |
Input: 110VAC~240V AC, Output: 12V DC 1200mA |
|
Gross Dimension & Weight |
53.5 x 23 x 47cms & 10kg |
The IPC1 is a professional pipe inspection camera designed for visual inspection of sewer lines, drainage systems, water pipelines, industrial pipes, ducts, and underground utility networks without excavation.
The IPC1 is suitable for inspecting pipes ranging from approximately 50 mm to 300 mm diameter, making it ideal for municipal, industrial, and commercial applications.
The IPC1 is equipped with a high-resolution waterproof camera head, providing clear images and videos for fault identification and condition assessment.
Yes. The camera head features high-intensity adjustable LED lights, ensuring clear visibility even in completely dark pipe environments.
The camera head is designed with IP68 waterproof protection, allowing operation in wet, submerged, and harsh sewer inspection environments.
The system features a 7-inch color LCD monitor, providing real-time viewing of inspection footage with clear image quality.
The IPC1 is available with 20 m, 30 m, and 50 m fiberglass push rod options, allowing inspection of both short and long pipeline sections.
The high-strength fiberglass rod provides excellent flexibility and durability, allowing smooth navigation through bends, elbows, and long pipe runs.
Yes. The system supports video recording and image capture, enabling documentation of pipe conditions, blockages, cracks, and maintenance reports.
Yes. Inspection videos and images can be stored on an SD card for later review, reporting, and customer documentation.
Yes. It is widely used for sewer inspections, drainage maintenance, stormwater systems, municipal pipelines, and industrial process lines.
Yes. The camera is ideal for locating blockages, root intrusion, cracks, joint failures, and pipe damage in underground utility networks.
The IPC1 operates on a rechargeable lithium battery system, allowing portable field operation without external power requirements.
The rechargeable battery typically provides 6–8 hours of continuous operation, supporting full-day inspection activities.
Key advantages include IP68 waterproof camera head, 7-inch LCD display, high-intensity LED illumination, video recording, SD card storage, 20–50 m push rod options, rechargeable battery operation, and suitability for sewer, drainage, and industrial pipeline inspections.
