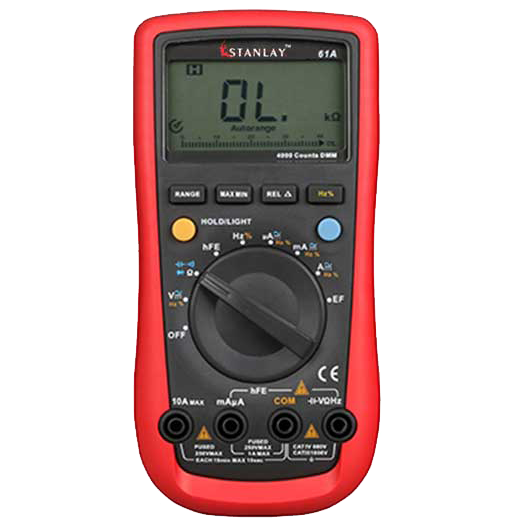

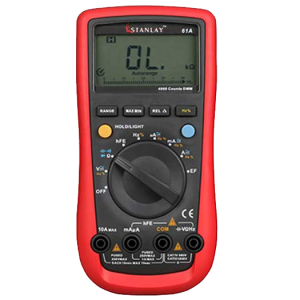

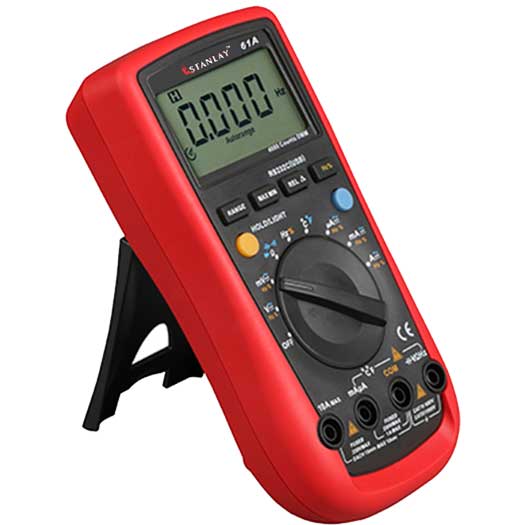

61A Auto Ranging Modern Digital Multimeter

61A Modern Digital Multimeter CAT IV safety rated multimeter is a feature rich auto ranging modern design digital multimeter which can serve both beginners & advanced electronic & electrical users.

Specifications
Product Specification

Model Selection

61A

Auto Range

True RMS

No

Display Count

4000

Analogue bar graph

41 segments

Bandwidth

45Hz-400Hz

Measurements

DC Voltage

400mV/4V/40V/400V/1000V

Accuracy

± (0.5% + 1)

AC Voltage

400mV/4V/40V/400V/750V


Accuracy

± (1%+3)

DC Current

400μA/4000μA/40mA/400mA/4A/10A



Accuracy

± (1%+2)

AC Current

400μA/4000μA/40mA/400mA/4A/10A



Accuracy

± (1.2%+5)

Resistance

400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ

Accuracy

± (1%+2)

Capacitance

40nF/400nF/4μF/40μF/400μF/4000μF



Accuracy

± (3%+5)

Frequency

10Hz-10MHz ± (0.1%+4)

Duty Cycle

0.1% ~ 99.9%

Diode Test

Continuity Buzzer

NCV

Transistor Test

Data/Transmission

RS-232 / USB

Features
Features

  • Auto power off
  • MAX/MIN/REL modes
  • Analog bar graph
  • NCV: EF (Electric Field) detection
  • Transistor measurement
  • Range: Auto or Manual
