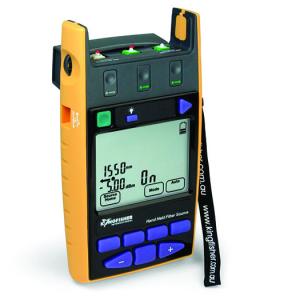

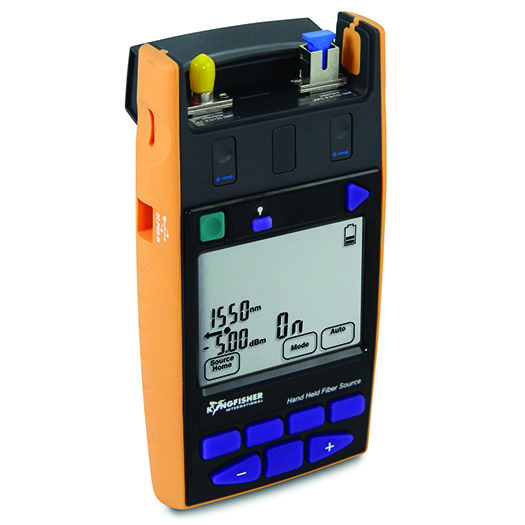

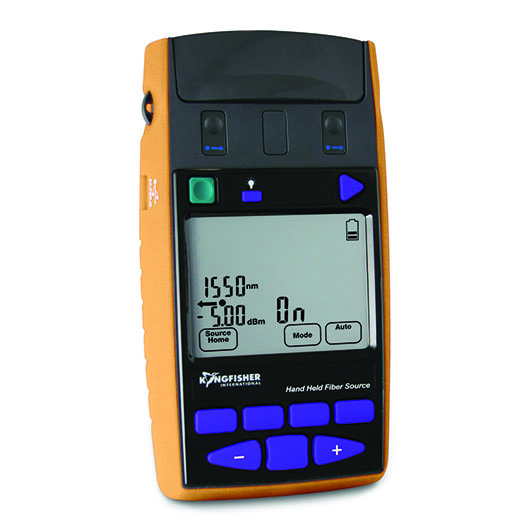

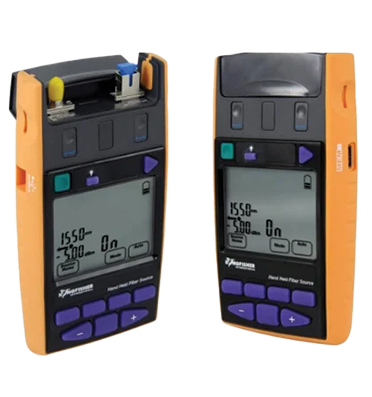

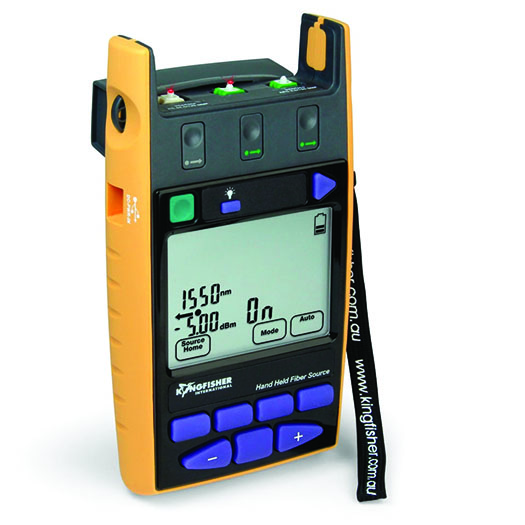

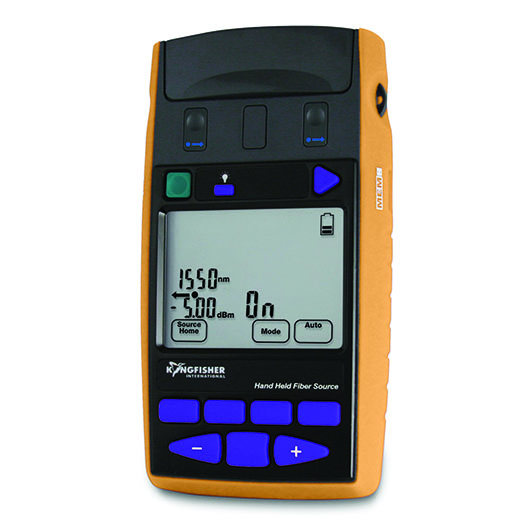

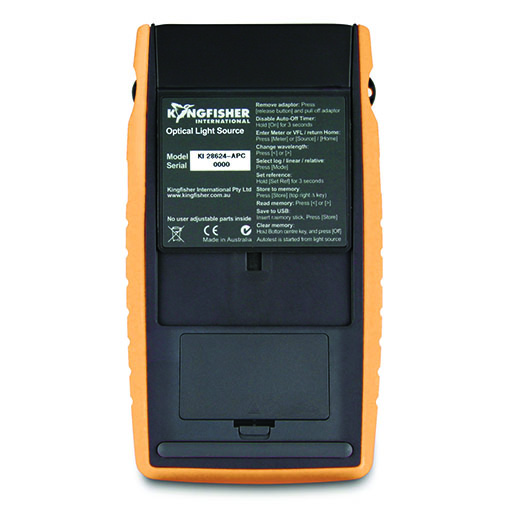

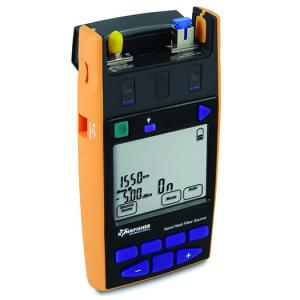

KI 2800 Handheld Optical Light Source

The Kingfisher (Now a Tempo Company) KI 2800 Handheld Optical Light Source is used with optical power meters for testing optical loss on single mode and multimode fibers. A Multi-Fiber tone feature makes for handy continuity / polarity testing and identification, also for use with clip-on traffic identifiers.

The KI2800 source provides excellent general test capability. With zero warm up, ultrahigh stability, and is unaffected by varying back reflection and the multimode LED sources are Encircled Flux (EF) standards compliant, to provide the most consistent and reliable testing results.

The innovative and unique VisiTester option mixes a laser VFL with Autotest, so at the power meter end, the active test fiber winks, making it obvious to the user. It also extends practical fault-finding options.

Power output is displayed on device & can be used with a compatible kingfisher optical power meter for auto testing with automatic identification. Instrument meets MIL PRF 28800F Class 2 requirements & is provided with ISO 17025 traceable calibration certificate.

Read more »
Request Quote
KI 2800 Handheld Optical Light Source
Features
  • Reliable, rugged & versatile
  • Ideal for mixed MMF & SMF testing
  • Up to 6 mixed LED, Laser & VFL sources
  • Excellent optical power stability
  • Excellent re-connection repeatability
  • LCD is large, clear, sunlight readable & backlit
  • Autotest compatibility with other instruments
  • Optical test tone with Multi-fiber ID function
  • VisiTester easily identifies active test channel
  • Interchangeable connectors with dust cap / tilt bail
  • Encircled Flux compliant multimode LED sources
  • Multimode sources supplied with mandrel wraps
  • KI 2400 series is ultra-stable with zero warm up
  • Long battery life
  • External power / charging via USB
  • ISO 17025 traceable calibration certificate
Specification

Optical Specifications:



1310/1490/15

50 nm Laser

CWDM

Laser

1625 nm

Laser

650 nm

VisiTester

850 / 1300

nm LED

1310/1550 nm

LED

470/520/660

nm LED

Short term stability (dB)

0.04

0.06

0.06

N/A

0.01

N/A

0.01

Stability over temp (dB)

0.6

0.6

0.6

N/A

0.35

N/A

0.35

initial tolerance (nm)

20

6.5

20

5

NA

20

15

width, nm

3

< 1

3

3

NA

35 / 48

25

nm/C

0.4

0.1

0.4

0.1

0.4

0.4

N/A

Mode Controlled

Source

N/A

N/A

N/A

N/A

Mode

controlled

N/A

N/A

Reconnection

repeatability4 dB

0.1

0.1

0.1

0.1

0.05

0.1

N/A

Blinking 2 Hz

270 Hz, 1 kHz, 2 kHz 􀀀 2 %, 12 Multi-Fiber ID tones, 2 Hz blink for VisiTester

Output power accuracy

1 dB (for Laser/eLED @ SMF, Multimode LED @ 62.5 μm, POF @ 1 mm)



General Specifications:

Parameters

Value

Operating / Storage

-15 to 55 °C / -25 to 70 °C

Relative Humidity

0 ~ 95%

Case

Polycarbonate / rubber edges & corners, moisture

resistance, 1-meter drop tested

Dust cap

Captive, functions as tilt bail when slid open

Power

2 Alkaline AAA cells

Battery life

Laser/LED source: 90/80 hours in Autotest, typical

Size

190 x 105 x 35 mm

Weight

420 gm
