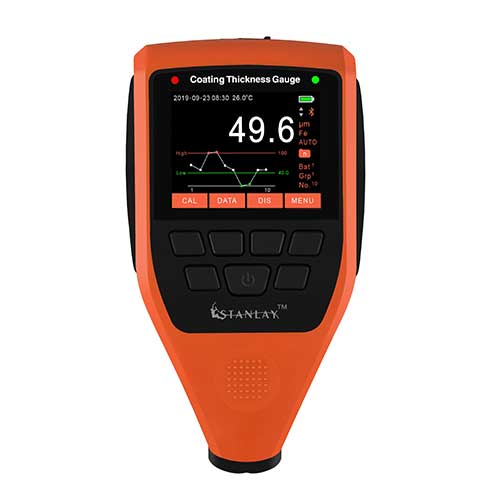

CT600 Advanced Coating Thickness Gauge

CT600 Advanced Coating Thickness Gauge

The CT600 is an advanced Fe/nFe coating thickness gauge which can perform non destructive measurement of DFT on both ferrous and non ferrous substrates. The CT600 will perform measurement of coating thickness on all metal types.

The CT600 utilises electromagnetic induction principle for thickness measurement of non-magnetic coatings on ferrous substrates such as steel and eddy current for non con-conductive coatings on non- ferrous substrates such as aluminium. Most common uses includes measuring thickness of paint, chrome , powder coating or galvanised layer on iron and  steel. Similarly, measuring thickness of paint or anodize coating over aluminium, stainless steel and copper.

The CT600 is offered in three models:
1. CT600 based on internal probe, with measuring range of 0 ~2000um.
2. CT600E based on an external probe design , with measuring range of 0 ~2000um.
3. CT600XE with extended range based on external probe, with measuring range of 0 ~5000um.

Why Measurement of DFT (Dry Film Thickness )  is Important
Coating on metal is done to ensure protection against corrossion. Also low quality coating results in nicks and erosion. Coating thickness inspection or Dry film thickness (DFT) is necessary if not mandatory for checking quality during application and inspection of protective coatings.

Why CT600 is an advanced Coating thickness Gauge



Features
Features
  • Automatic substrate detection, type (F or N)
  • Range (ST600 & ST600E) : 0~2000um
  • Range (ST600XE) : 0~5000um
  • Full Color Screen
  • Easy to use Touch button Menu interface.
  • Statistics Directly viewable on-screen including Trend, Curve & Histograms
  • Large LCD display with Auto rotate based on orientation of use.
  • Large 1300 Data set storage
  • USB Connectivity to download readings


FAQ
FAQ


Product Info Downloads
Product Info Downloads

Product Information files contain the essential technical detail you need to make informed decisions on any particular product. Simply click on a title to download a PDF copy of that file. If you wish a hard copy of a brochure, technical advice on any product or a demonstration then please contact us. We're always happy to help!

Title
File Type
File Size
Last Uploaded
application/pdf
1.41 MB
February 08 2021 11:51:26
