HV Insulation Testers 513A

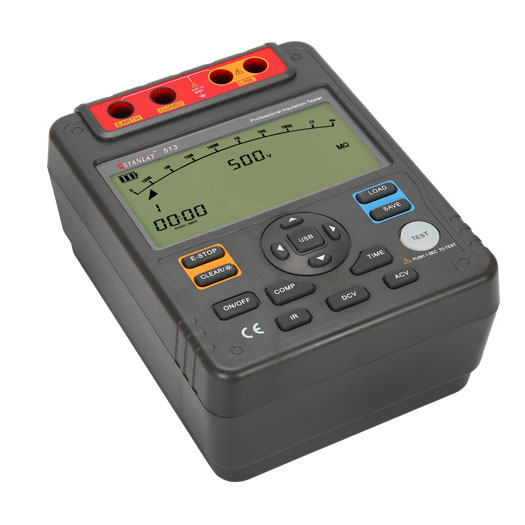

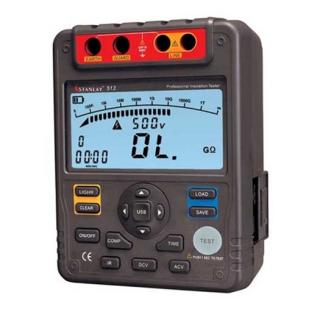

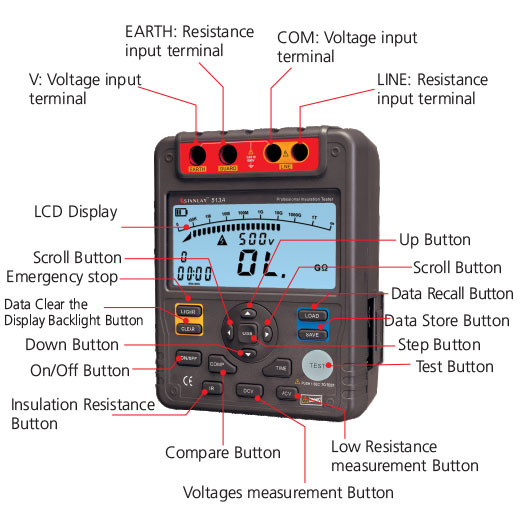

513A Insulation tester is a top professional high voltage insulation tester having four insulation voltages including 2500 Volts and 5000 Volts that can measure insulation resistance of large transformers, generators, high-voltage motors and more.

513A can also measure PI, DAR and other important specifications. Measured data can then be analyzed through PC software. 513A can produce test voltage up to 5kV.

Specifications
Product Specification

Auto Range

Measurements

Range

Accuracy



Insulation Resistance (Ω)

Test Voltages

500V~5000V

0%~20%

500V

0.5MΩ~20GΩ

± (3%+5)

1000V

1MΩ~40GΩ

± (3%+5)

2500V

2.5MΩ~100GΩ

± (3%+5)

5000V

5MΩ~1000GΩ

± (3%+5)

DC Voltage (V)

600V

± (2%+3)

AC Voltage (V)

600V

± (2%+3)

Short-Circuit Current

>3mA

Other Features:

Auto Power Off

Test Voltage Secondary Display

Low Battery Indication

Data Storage

18 Data Sets

Comparison Measurement

Polarization Index (PI)

Dielectric Absorption Ratio (DAR)

USB Interface

Analog Bar Graph

30

LCD Backlight

Over-Range Warning

High Voltage Indication

Timing Measurement

Category Safety Ratings

CAT III 600V

General Characteristics

Power

Dual Option: 230 VAC or 1.5V Battery (LR14) x 8

Display

123mm x 58mm

Product Net Weight

2kg

Product Size

202mm x 155mm x 94mm

Standard Accessories

2Pcs Of One Plug Test Lead To One Alligator Clip (Black And Green), 1Pcs Of Two Plugs Test Lead To One Alligator Clip (Red), Batteries, USB Cable, PC Software CD, Power Adaptor 230V 50/60Hz

Features
Features
  • Large 9999 display with 30-segment analog bar graph
  • Comparison, upper and lower limit functions
  • Continuous measurement mode, PI/DAR measurements
  • Auto power off, Power adapter, 18 Data Sets, Backlight
  • Auto current discharge and high-voltage output alarm
  • Time measurement mode, auto measure within 15 minutes
  • USB interface and PC software
  • Low battery and over range indications


FAQ
FAQ
Frequently Asked Questions (6 answered questions)
yes ,Test Voltage ranges include 500 ,1000,2500 & 5000 DC Volts

Person name: Asian

1000 Giga ohms

Person name: Asian

Polarization Index is ratio of 3 min to 10 insulation resistance measurement

Person name: Asian

CAT III 600 volts

Person name: Asian

it can be used to divert surface leakage current from the measuring circuit

Person name: Asian

yes

Person name: Asian
