KI 6610 Handheld Fiber Inspection Microscope

KI 6610 Handheld Fiber Inspection Microscope

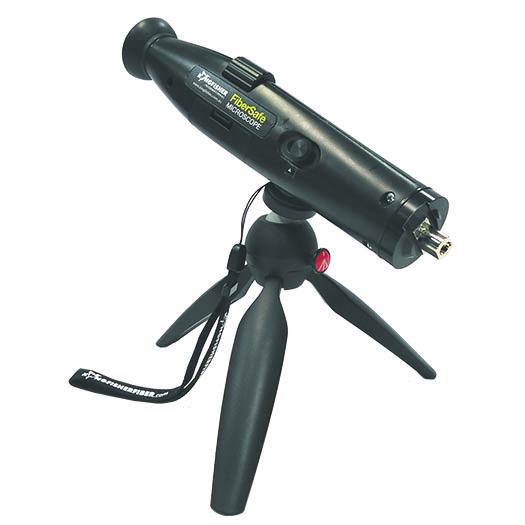

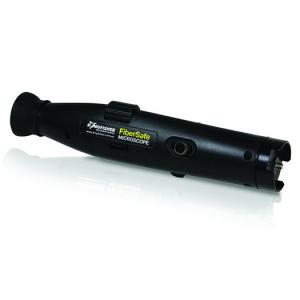

The Kingfisher (Now a Tempo Company) KI 6610 Handheld Fiber Inspection Microscope is the microscope of choice to check fiber optic connector end face quality. It provides the state of the art in eye safety.

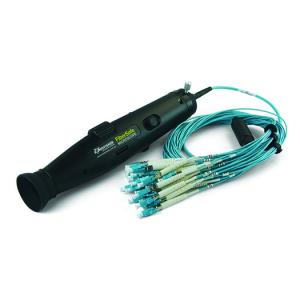

A combination of versatile and rugged design, easy operation, quality optics and durable construction ensures that this equipment will enhance the performanceof installation and maintenance staff. Options are suitable for all fiber types including SM / MM / MPO / POF, and many connector styles.

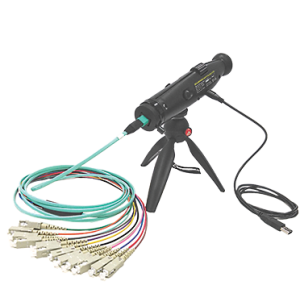

Power is either by 1 x AAA alkaline battery, with low battery indicator, or from external micro-USB. Illumination level is unaffected by battery voltage. When powered via micro-USB, illumination is on permanently, making the microscope ideal for bench & production applications.

The unique in-built eye safety filter blocks both red and infra-red light. This makes the microscope eye-safe with visual fault locators up to +20 dBm / 100 mW and at operational wavelengths up to +30 dBm / 1 Watt, power levels that are unlikely to be exceeded even under fault conditions.

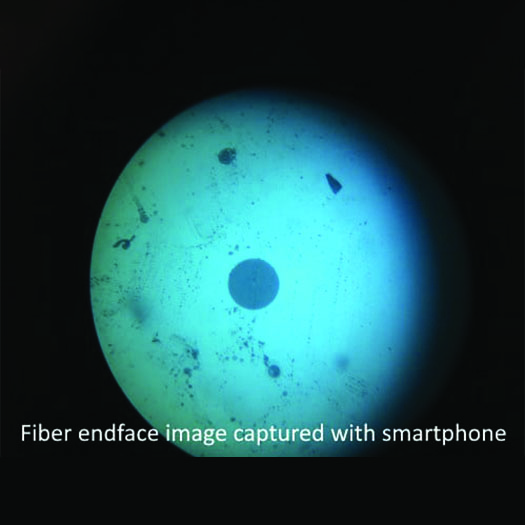

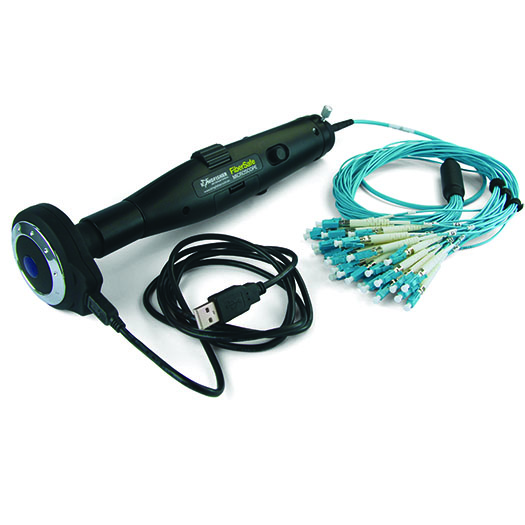

Viewing and storage of images on a computer is achieved by replacing the standard eyepiece with an optional 1.3M or 5.1M pixel digital camera.
