Cable Tiger Maxi Duct Rodder

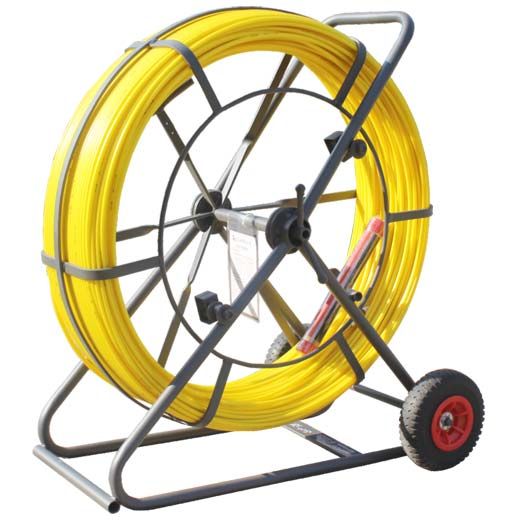

The Cable Tiger Maxi Duct Rodder is ideal for installation of optical fiber telecom cables in buried/underground HDPE ducts up to 300 meters in metro and congested city environments. The Cabletiger maxi duct rodder is also the most widely used equipment in OFC maintenance & where cable blowing method is not feasible.

Cabletiger

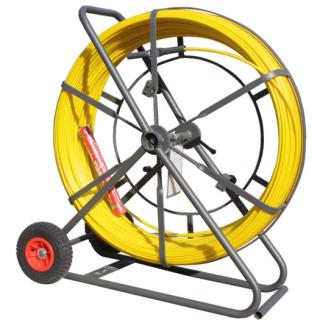

is a professional heavy duty cable pulling device based on 9mm dia. Composite fiberglass rod. Provided in galvanized metal frame with wheels & integral brake & M12 threaded rod ends at both ends.

Available in 200m and 300m length options.

Specifications

Product Specification

Length Options 200m(650') or 300m(1000')
Dimension 33"x20"x37" Maxi Frame "B" Type for 120~200m
  43"x20"x44" Super Maxi Frame "A" Type for 300 m
Rod Dia. 9.0mm (Nominal)
Product Supply Includes Cable Tiger Unit as per length ordered
Item Code ST-CD 200 for 200m & ST-CD 300 for 300m

Usage Illustration


Unlock the Cabletiger brake and check that the guide head is tight

Step 1 : Unlock the Cabletiger brake and check that the guide head is tight.
Insert the duct rod into the duct

Step 2 : Insert the duct rod into the duct.
Push the duct rod till it reaches the other end

Step 3 : Push the duct rod till it reaches the other end.
Rod reaches other open end of duct

Step 4 : Rod reaches other open end of duct.

Loop cable to be pulled into figure of eight for easy pulling

Step 5 : Loop cable to be pulled into figure of eight for easy pulling.
Insert cable into pullgrip accessory

Step 6 : Insert cable into pullgrip accessory.

Attach pullgrip to duct rodder guide head using the shackle bolt

Step 7 : Attach pullgrip to duct rodder guide head using the shackle bolt.
Pull duct rod  to install OFC cable inside duct

Step 8 : Pull duct rod to install OFC cable inside duct.
Length Options 200m(650') or 300m(1000')
Dimension 33"x20"x37" Maxi Frame "B" Type for 120~200m
  43"x20"x44" Super Maxi Frame "A" Type for 300 m
Rod Dia. 9.0mm (Nominal)
Product Supply Includes Cable Tiger Unit as per length ordered
Item Code ST-CD 200 for 200m & ST-CD 300 for 300m

Features

Features

Compact & easy to transport in a pickup jeep or small transport vehicles.
Durable. High Strength. Super tough.
Provided with an M12 male rod end to allow sonde or accessories to be attached.



Video

Video

Product Info Downloads

Product Info Downloads

Product Information files contain the essential technical detail you need to make informed decisions on any particular product. Simply click on a title to download a PDF copy of that file. If you wish a hard copy of a brochure, technical advice on any product or a demonstration then please contact us. We're always happy to help!
