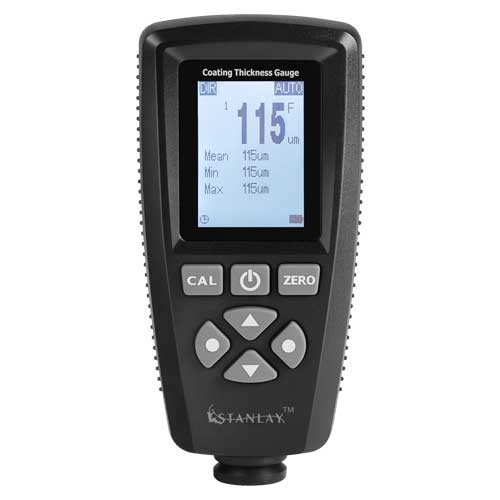

CT100 Coating Thickness Gauge

CT100 Coating Thickness Gauge

The CT100 is an economical Fe/nFe coating thickness gauge which can perform non destructive measurement of DFT on all metal types  i.e both ferrous and non ferrous substrates.

The CT100 dry film thickness meter is based on an internal probe for measuring coating including non magnetic coatings such as paint, enamel, chrome on steel and insulating coatings
on ferrous substrates and non conductive coatings such as paint and anodizing coatings on non ferrous substrates. Applications include Coating thickness testing measurement for car paint, electroplating, pipeline anti-corrosion coating, surface anti-corrosion on mechanical equipment and quality control.

Why Measurement of DFT (Dry Film Thickness) is Important
Coating on metal is done to ensure protection against corrossion. Also low quality coating results in nicks and erosion. Coating thickness inspection or Dry film thickness (DFT) is necessary if not mandatory for checking quality during application and inspection of protective coatings.


Features
Features
  • Automatic substrate detection, type (F or N)
  • Range : 0~2000um,accuracy±(2.5%±1)um
  • Unitoptional:um,mm and mils
  • Easy to use Touch button Menu interface

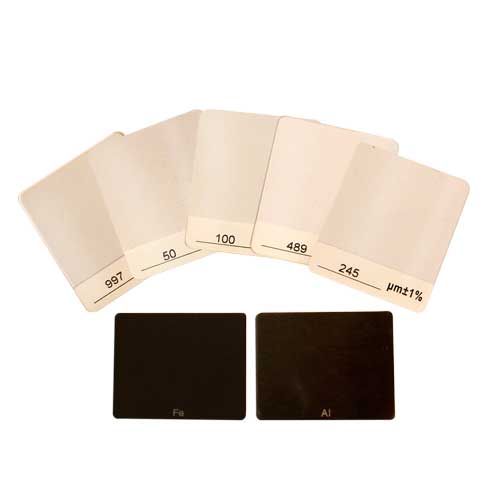

  • Easy zero calibration and support multi-point calibration
  • Large LCD display with Auto rotate based on orientation of use
  • LCD shows mean, maximum, minimum and standard deviation
  • Data storage to access measured values
  • USB Connectivity to download readings


Video
Video
FAQ
FAQ


Product Info Downloads
Product Info Downloads

Product Information files contain the essential technical detail you need to make informed decisions on any particular product. Simply click on a title to download a PDF copy of that file. If you wish a hard copy of a brochure, technical advice on any product or a demonstration then please contact us. We're always happy to help!

Title
File Type
File Size
Last Uploaded
application/pdf
1.36 MB
February 08 2021 11:41:50
