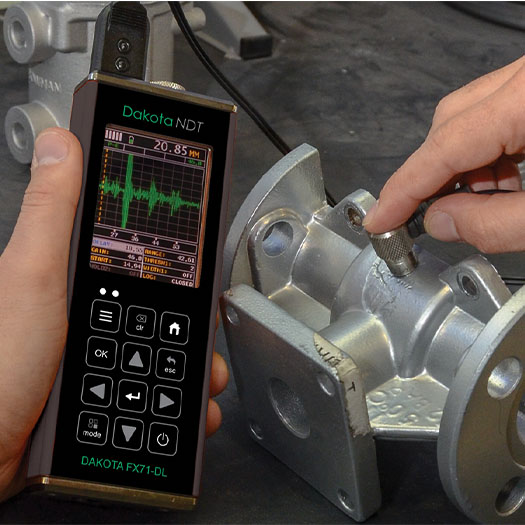

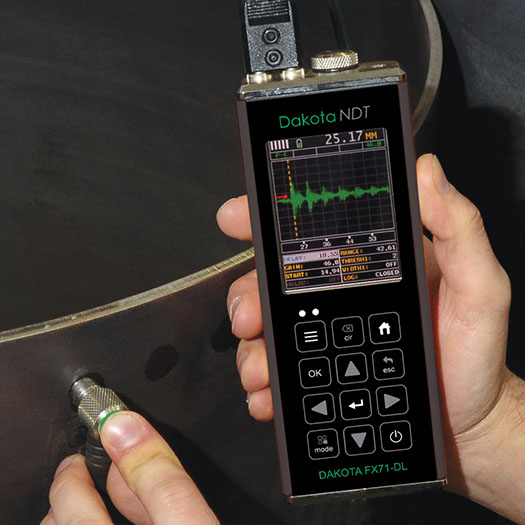

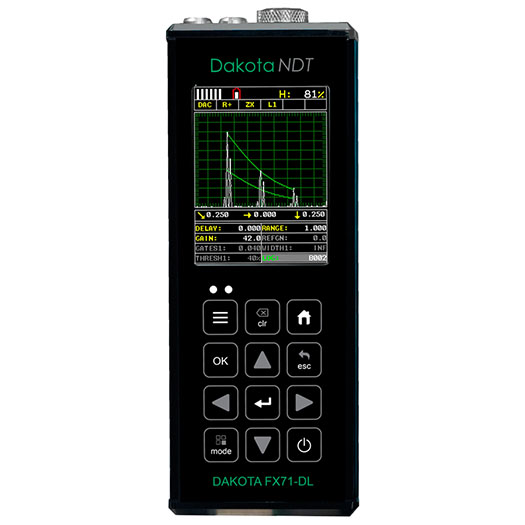

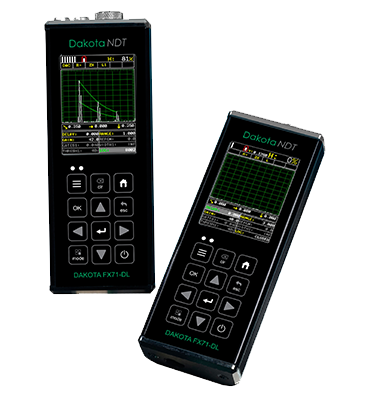

General |
Receiver |
|
Size: 2.5W x 6.5H x 1.24D in (63.5 x 165 x 1.5mm). |
Gain: 0 to 110dB with 0.2dB resolution. Manual and AGC control. |
Echo-Echo Mode (E-E) - (Thru Paint & Coatings) range 0.050 to 4.0 inches (1.27 to 102 millimeters). |
Weight: 14 ounces (.397kgs), with batteries. |
Damping: 50, 75, 100, 300, 600, & 1500 ohms. |
Single Delay Line - 0.007 to 1.00 in (.178 to 25.4 mm). Single Contact - 0.040 in to 10 ft. (1 mm to 305 cm). Will vary based on coating. |
Case: Extruded aluminum body with nickel plated aluminum end caps (gasket sealed). |

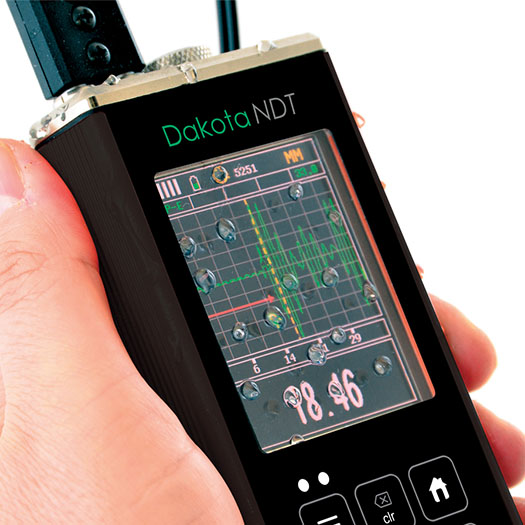

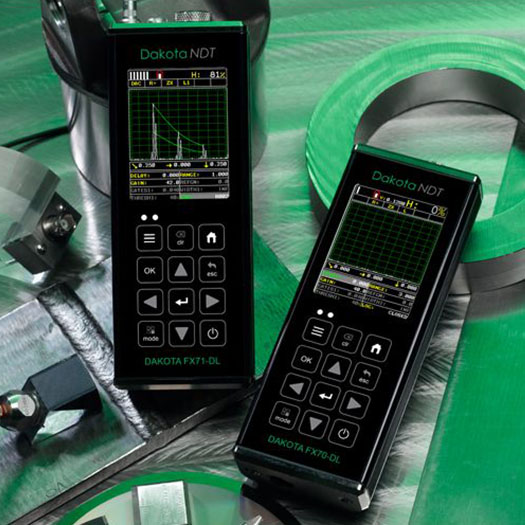

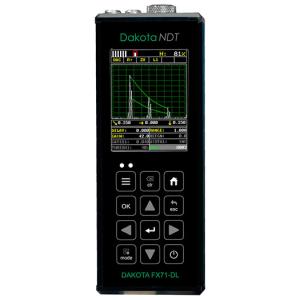

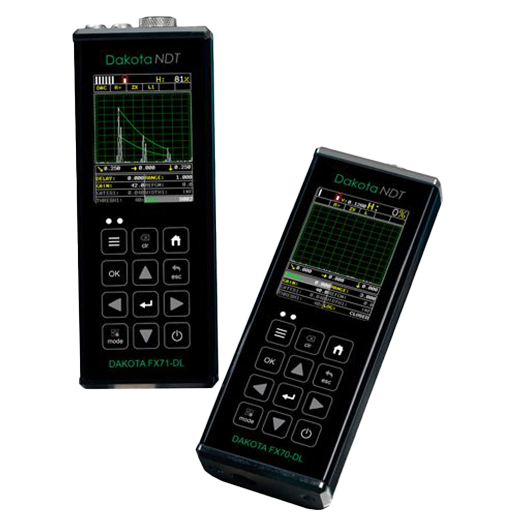

Frequency Bands: FX70-DL & FX71-DL: Broadband 1.8 - |
Echo-Echo Verify (E-EV) - (Thru Paint & Coatings) range 0.050 to 1.0 inches (1.27 to 25.4 millimeters). Will vary based on coating. |
Display: 1/4 VGA AMOLED color display (320 x240 pixels). Viewable area 1.7 x 2.27 in (43.2 x 57.6 mm). 16 color pallete, multiple color options, and variable brightness. |
19 MHz (-3dB). FX70-DL+: Three narrow bands at 2MHz, 5MHz, 10MHz. |
Coating Only Mode (CT) - (Coating Thickness) range 0.0005 to 0.100 inches (0.0127 to 2.54 millimeters). Range will vary +/- depending on the coating. One and two point calibration option for material & coating, or selection of basic material types. Auto probe zero, recognition and temperature compensation. High speed scan up to 50 readings per second. Audible alarm with hi/lo limits. Built-in differential mode for QC inspections. Linear time dependent gain (TDG) with adjustable slope (dB per microsecond). |
Screen Refresh Rate: 60Hz. |
Horizontal Linearity: +/- 0.4% FSW. |
Memory |
Display Views: Flaw Detector: Full wave, +/- Recti7ed, or RF. Thickness Gauge: Digits, +/- Recti- |
Vertical Linearity: +/- 1% FSH. |
Log Formats: Grid (Alpha Numeric), or SequenMemory tial (Auto Identi7er). |
7ed, RF, or B-Scan. |
Ampli4er Linearity: +/- 1 dB. |
Capacity: 4 Gb internal SD card. |
Resolution (selectable): +/- 0.001 in (0.01 mm )or +/- 0.0001 in (0.001mm). |
Amplitude Measurement: 0 to 100% FSH, with 1% resolution. |
Screen Capture: Bitmap graphic capture for quick documentation (.tif ). |
Timing: Precision TCXO timing with single shot |
Delay: 0 - 999in (25,375mm) at steel velocity. |
Custom Setups: 64 user con7gurations. |
Resolution (selectable): +/- 0.001 in (0.01 mm)or +/- 0.0001 in (0.001mm). |
Flaw Detector Features |
Power Source |
Timing: Precision TCXO timing with single shot 100 MHz 8 bit ultra low power digitizer. |
TRIG: Trigonometric display of beam path, depth, surface distance, and curved surface correction. Used with angle beam transducers. |
Battery: Three 1.5V alkaline, 1.2V AA Nicad cells, 1.2V AA NI-MH, or other other equivalent power source. |
Measurement Gates: Two independent gates (Flaw), and three gates (thickness). Start & width adjustable over full range. Amplitude 5-95%, 1% steps. Positive or negative triggering for each gate with audible and visual alarms. |

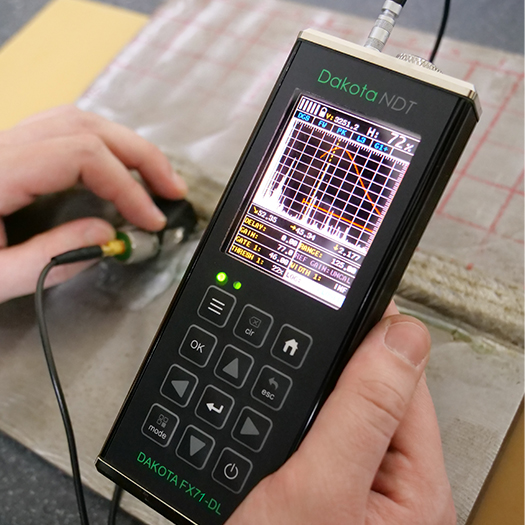

DAC: Up to 8 points may be entered and used to digitally draw a DAC curve. Reference -2, -6 -10, (-6/-12), (-6/-14), (-2/-6/-10) dB. Amplitude displayed in %DAC, dB, or %FSH. |
Battery life (continuous use): Alkaline (12 hrs), Nicad (5hrs), and NI-MH (12hrs), with default settings. |
Operating Temperature: 14 to 140F (-10C to 60C). |
AWS: Automatic defect sizing in accordance with AWS D1.1 structural welding code |
Line Power: USB-C to PC or power outlet. |
Environmental: Meets IP65 requirements. |
AVG/DGS: Automatic defect sizing using probe data. Stores up to 64 custom setups |
connections. |
Calibration: |
TCG: Time corrected gain. 50 dB dynamic range, 20 dB per microsecond, up to 8 points for curve de7nition. |
Output: Direct USB-C 1.1 PC connectivity. |
Automatic Calibration: Longitudinal (straight), Calibration or Shear (angle). |
Thickness Gauge Features |
Transducer Connectors: Two LEMO 00 |

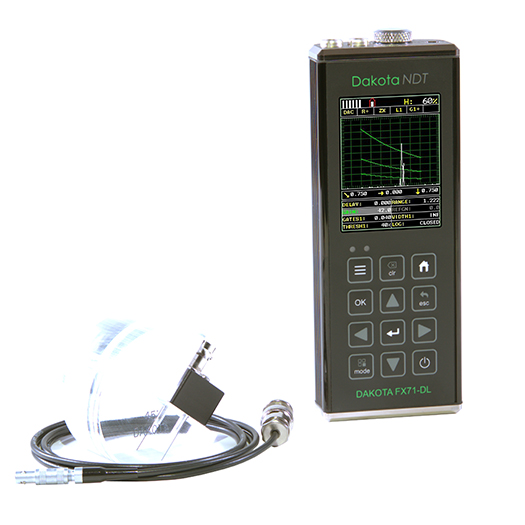

Probe Types: Single Contact, Dual, Delay, and Angle . |
Measurement Mode: Pulse-Echo (P-E) range 0.025 in to 100 ft. (0.63mm to 3048 cm). |
Certification |
Units: English (in), Metric (mm). Velocity: 0.0100 to .6300 in/µs (256–16,000 m/s). |
Auto-Cal: Provides automatic calibration with two reference points. |
Thickness Gauge: Factory calibration traceable To LEMO 00 Certi4cation to NIST & MIL-STD-45662A. |
Test Range: 0.007 in (.178mm) to 1200 in (30,480mm) maximum at steel velocity. Continuously variable. Zero Offset (Probe Zero): 0–999.999 µs. Material Velocity Table: Contains longitudinal and shear velocities for a variety of material types. |
Detection Modes: Zero Crossing, Flank and Peak. |
Flaw Detector: EN12668-1 compliant. |
Pulser |
Display Freeze: Hold current waveform on screen. |
Warranty : 2 year limited |
Pulser Type: Two adjustable square wave pulsers and receivers. |
Peak Memory: Captures peak signal amplitude. |
|
P.R.F.: 8 to 2000Hz in selectable steps (8, 16, 32, 66, 125, 250, 333, 1000, 2000Hz). |
Skip Bar: Displays skip legs in the waveform area. |
|
Pulser Voltage: 100-200 volt peak amplitude, rise/fall time < 10ns into 50ohm. |
Measurement Modes (Dual & Single Element):Thickness Gauge Features Pulse-Echo Mode (P-E) - (Pit & Flaw Detection) range 0.025 to 96 in (0.63mm to 244 cm). Single Contact - 0.040 in to 100 ft. (1 mm to 3048 cm). Pulse-Echo Coating Mode (PECT) - |
|
Pulse Width: 40 to 400 ns. Selectable step options 40, 80 & 400 ns (labeled spike, thin & wide). |
(Material, Coating, Pit & Flaw Detection): Material: 0.025 in to 96 in (0.63mm to 244 cm). Coating: 0.001 to 0.100 inches (0.01 to 2.54 millimeters). Pulse-Echo Temp Comp Mode (PETP) - (Pit & Flaw Detection) Auto temperature compensation -range 0.025 in to 96 in (0.63 mm to 244 cm). |
|
|
|
|
