MTRAK Traceable Midi Duct Rodder

  • Product Description
  • Specifications
  • Features
  • Video

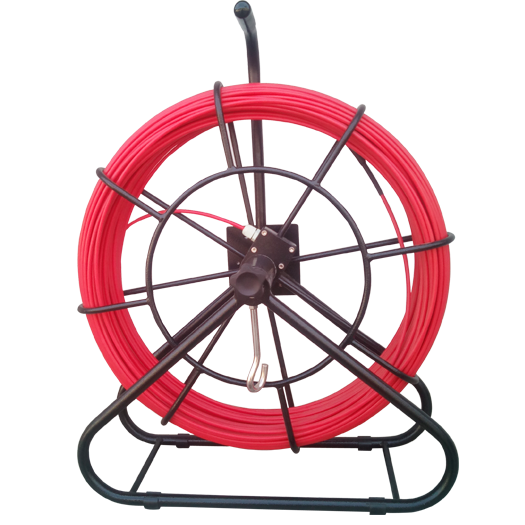

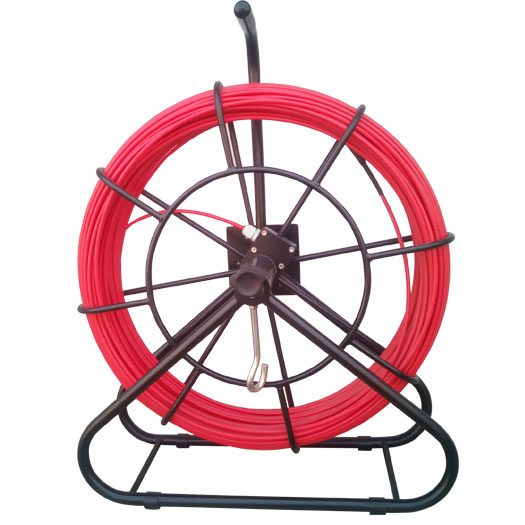

The MTRAK traceable midi duct rodder is is an ideal accessory for  utilisation with pipe & cable locators, to EXTEND the capability of  the locating equipments to identify location & route of buried small diameter non metallic ducts or telecom pipes and metallic ducts.

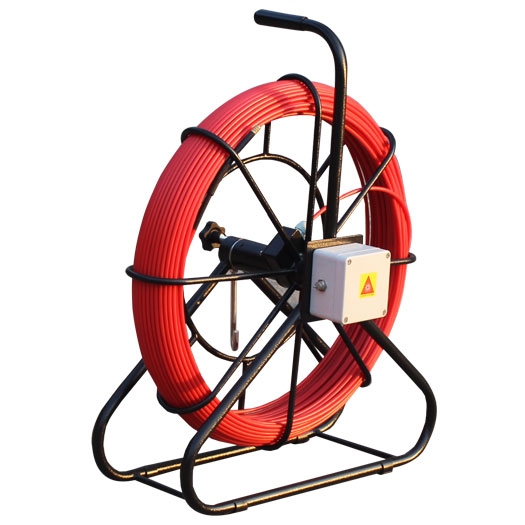

Based on a 5.5mm composite fiberglass rod with 3 x 0.5mm tracer copper wires. The midi traceable duct rodder contains an all new slip ring design allowing the rod to be pushed in while tracing of the pipe is being done. Provided in a galvanized metal tube frame to enable usage of either of the copper tracer wires for tracing route of the buried duct or the Sonde end tip of the rodder. The base of the traceable rodder contains a terminal box that provides 2 individual terminal connections to the 2 inbuilt copper tracer wires of the traceable duct rodder. Connecting both terminals from the two wires of a transmitter at 33KHz causes the Sonde tip of the rod to be energised at 33kHz

Option 1 : Apply signal from transmitter to one terminal & connect the second lead
from transmitter to the earth stake to energize single tracer wire
Mtrack Illustration 1
Trace route of buried pipe. Mtrack Illustration 2
Option 2 : Apply signal from transmitter to both terminals (without using any
earthing) to energize leading tip of rodder which then acts like a sonde.
Mtrack Illustration 3
Localize front leading tip of rodder & in turn blockage
points with precision using any digital or analog receiver.
Mtrack Illustration 4

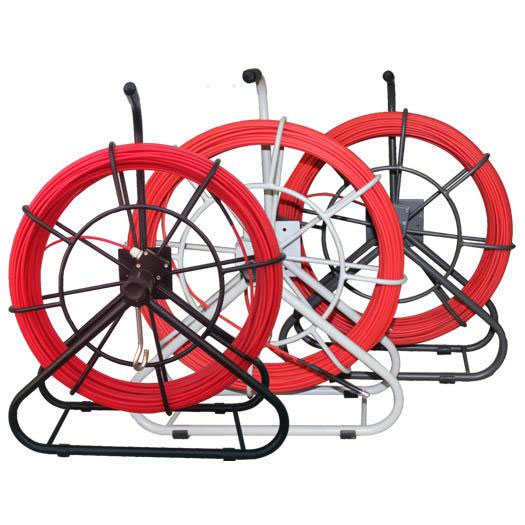

Length Options 50m (165'), 80m (262'), 120m (393')
Dimension 24" X 8" X 29" Midi Frame "C" Type
Rod Type 5.5mm (Normal)
Size of Copper Wire 0.5mm Dia (2 nos)
Item Code ST- MTRAK50
