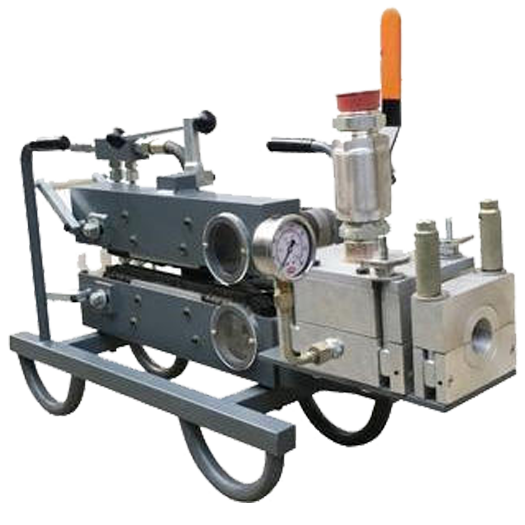

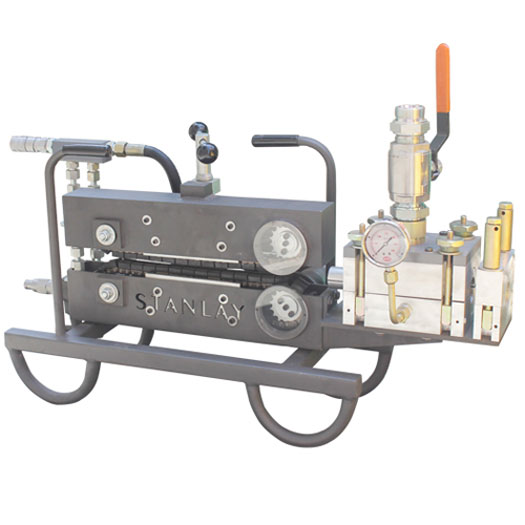

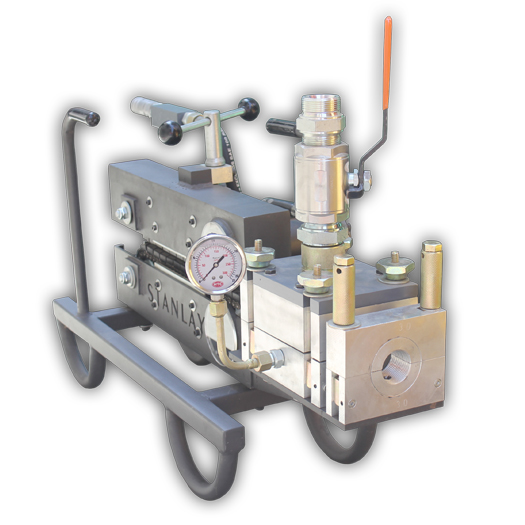

Fiber Optical Cable Blowing Machine -Pusher Unit

The Stanlay Fiber Cable Blowing Machine is ideal for fiber optic cable installation of 8-32 mm diameter cables at up to 90 m/min into pre-installed, pre-lubricated HDPE / plastic telecom ducts, employing the viscous drag compressed air principle where the compressed air is fed into the duct via a venturi principle, and the hydraulically powered cable feed system controls the fiber optic cable.

Fiber Cable Blowing Machine comprises of an Air box, Cable pusher unit and is designed to provide an effective and safe method of fiber optic cable installation.

The system comes mounted on a lightweight frame for ease of site maneuverability. The unit is supplied with 2 x hydraulic hoses x 3 meters for connecting between the cable blowing machine.



Specifications
Product Specification

Pushing Force

0 – 100 kg

Pushing Speed

0 – 90 m/min

Cable Size

10 – 22 mm OD

Duct Size

20 – 50 mm O.D PLB

Hydraulic Drive System

1 00 Bar (Max)

Pneumatic System

Operating Pressure

12 Bar

Minimum Flow Acceptable for Ducts with an Inner Diameter of

0 up to 25mm

4m³/min 150 CFM

26 up to 30mm

5m³/min 185 CFM

31 up to 35mm

7m³/min 250 CFM

36 up to 40mm

10m³/min 375 CFM

41 up to 44mm

12m³/min 450 CFM

Features
Features

AIRBOX

  • Manufactured from aluminium.
  • Can be used for a range of cable dia from 10 – 22 mm by means of interchangeable collets with double split cable sealing arrangements. 1 pair of collets included with machine; other sizes available as optional extra's.
  • Duct sealing at mouth of box
  • Duct gripping facility with non-duct crush and distortion design.

CABLE FEEDER

  • Hydraulically powered.
  • Unit lifts and splits to allow insertion of cable between drive belts.
  • Drive belts are polyurethane and moulded to unit ensuring long life between replacements.
  • Belt tension can be set by means of adjustable chain drive tensioners fitted to back of unit.
  • manufactured from aluminium.
  • Available in cable size options of:
    8-12mm±0.5mm
    12-16mm±0.5mm
    16-20mm±0.5mm
    20-24mm±0.5mm
