SHV500 Wrist High Voltage Detector

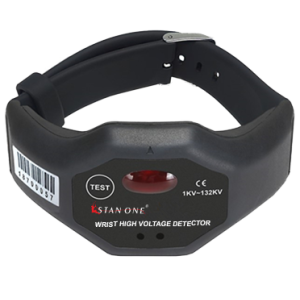

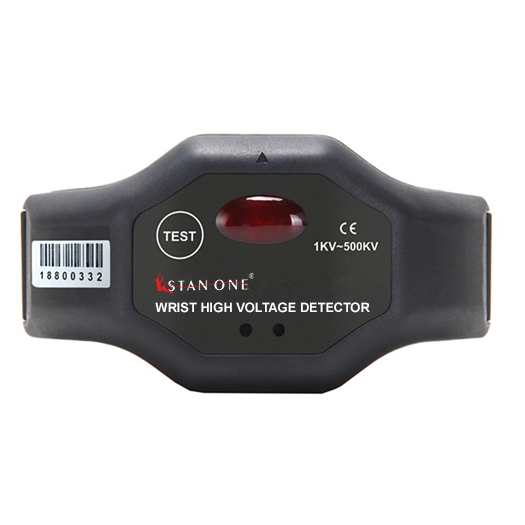

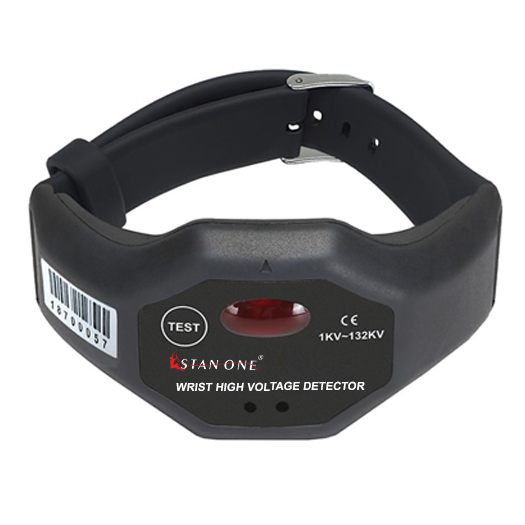

The SHV500 Wrist High Voltage Detector is a safety device for the electrical workers to avoid possible high voltage electric shock accidents.

SHV500 Wrist High Voltage Detector use non-contact voltage detection technology to detect the presence of voltage without needing to touch a live wire directly. The wrist based voltage detector senses the electric field produced by an energized conductor and provides an alert through audible & light alarm.

When the operator is wearing the wrist based voltage detector, the device will give an alarm and when close to a high voltage charged body within a certain distance. A sound and light alarm will go off, according to the safety distance of the corresponding voltage level.

Overall, The SHV500 is a safe, practical and convenient personal safety voltage detector for technicians or operators handling electric installations.

Request Quote
SHV500 Wrist High Voltage Detector
Features Specifications FAQ Downloads



Features
  • Safe, practical, and convenient high voltage alarm for technicians or operators handling electric installations.

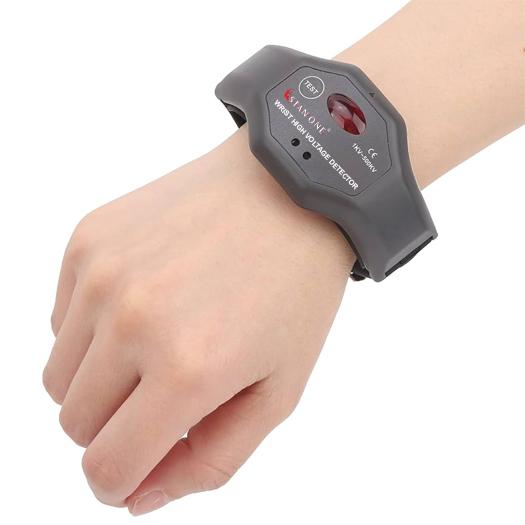

  • Worn on the wrist with the alarm symbol pointing towards the fingertips.
  • Uses non-contact induction technology for alarms.
  • Power-saving, and up to 12 months of standby time.
  • Features all-directional voltage induction, automatic trigger detection mode with sound and light alarms for safety.
Specifications

Parameters

SHV 500 Wrist High Voltage Detector

Function

High voltage alarm

Alarm Voltage Range

1kV~500kV (High Voltage Alarm)

Working Frequency

50Hz/60Hz

Electricity Testing Mode

Non-contact mode

Detection Mode

Automatic trigger

Alarm Mode

Indicator; LED light visibility under8000LX visible light

Buzzer: above 60dB (60CM apart)

Alarm Distance Error

±10cm (23ºC±1ºC, 80%Rh, underBase condition)

Power Supply

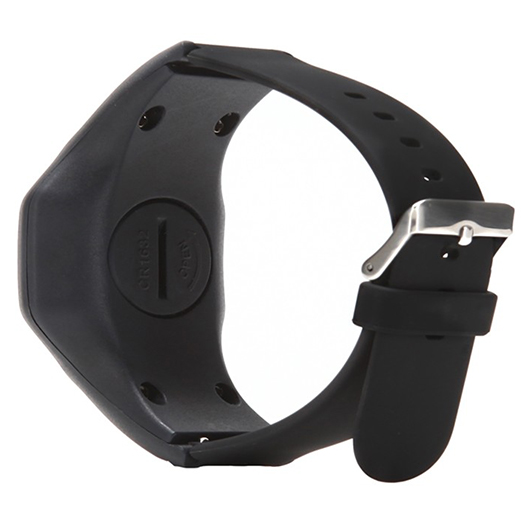

CR1632 (140mAH) button cell1pcs

Battery Life

Continues working (sound and light alarm) :about24 hours

Standby time: about12 months

Dimensions

90mmX40mmX35mm

Weight

35g

Working / Storage Temperature

-10ºC~40ºC /-10ºC~60ºC

Environmental

IP54
FAQ

Have a question to which you're seeking an answer ?

Type your question in the Search box , fill in your name, and email ID and press send.

We will respond with the answer. Rest assured that we respect your privacy, and your details will remain confidential.

Downloads

Product Datasheet

File Type: PDF File Size: 1.87 MB
View Download
