Profometer Corrosion

Half-cell measuring instrument

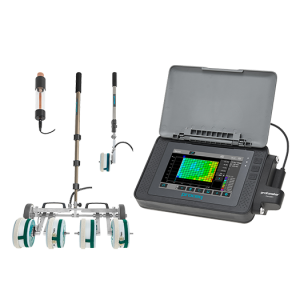

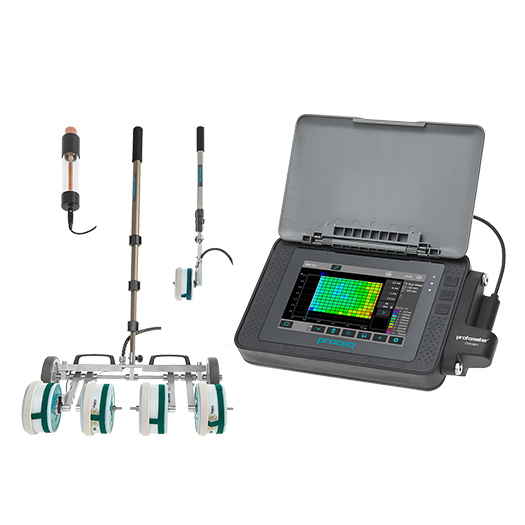

Profometer Corrosion is the most advanced instrument for corrosion analysis based on half-cell method which is used to identify active corrosion of rebars based on the electro chemical properties of reinforced concrete for assisted measurements with rod and wheel electrodes. In addition to the basic electrode (rod or wheel) that are based on a Copper/ Copper sulphate half – cell, the use of unique one- and four-wheel electrodes enable highest on-site productivity on large areas.

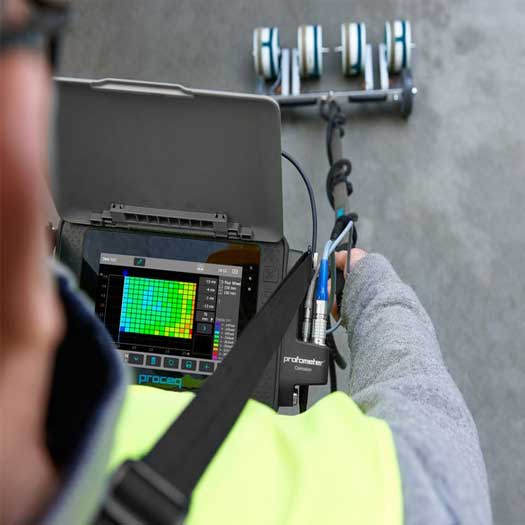

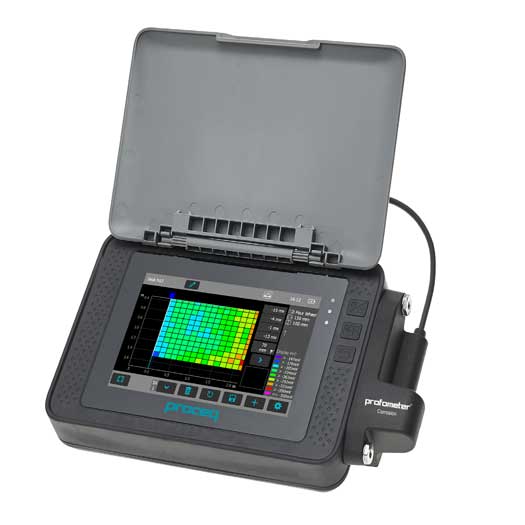

Profometer Corrosion is advanced half-cell measuring instrument with corrosion scan and statistical views for immediate on-site data interpretation, customizable and cumulative distribution and chipping graph views. The instrument is used for on- site mapping of the corrosion potential.

Profometer Corrosion consists of interface box, cable coil 82 ft /25 m with clamp, USB cable, DVD with software, documentation carrying strap and carrying case.

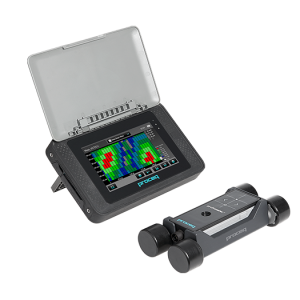

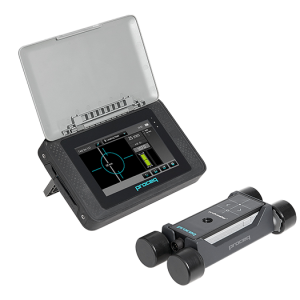

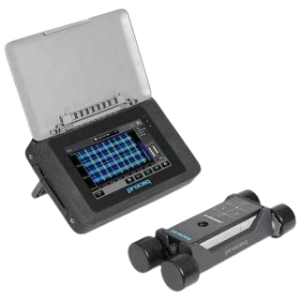

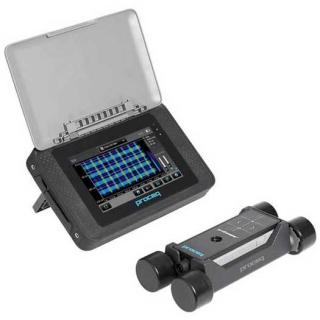

Profometer corrosion can be purchased as a standalone device or Profometer 600, Profometer 630AI and Profometer 650 AI possess upgrade possibility to Profometer Corrosion.

Specifications
Product Specification

Voltage measuring range

-1000 to + 1000 mV

Voltage resolution

1 mV

Impedance

100 MΩ

Sampling rate

900 Hz

Measured Quantity

Corrosion potential [mV]

Accuracy

±1 mV

Available Upgrades

To Profometer 6 Cover Meters

Standards and guidelines

ASTM C876, RILEM TC 154-EMC,

DGZfP B3, SIA 2006, UNI 10174,

JGJ/T 152, JSCE E 601,

CE certification

PC Software

Profometer Link Reporting software for data analysis, combined data evaluation and reporting on any third-party software

Display

7” color rugged touchscreen unit (800 x 480 pixels) with dual core processor

Memory

Internal 8 GB flash memory

Connections

USB host / device and Ethernet

Measuring Range

-999 to +999 mV

Probes / Electrodes

In addition to the basic rod electrode, unique one and four-wheel electrodes enable the highest on-site productivity on large areas

Features
Features
  • Intuitive user-friendly interface for data acquisition
  • Optimized workflow for rod and wheel measurements
  • Customizable text can be entered for any specific locations
  • Flexible features enable the mapping of any irregular geometry
  • Improved digital filtering to remove the effect of external noise (civil and industrial power sources)
  • Create custom reports with exported graphs and charts
  • 7” colour rugged touchscreen unit (800 x 480 pixels) with dual core processor
  • Internal 8 GB flash memory
  • USB host / device and Ethernet connectivity
