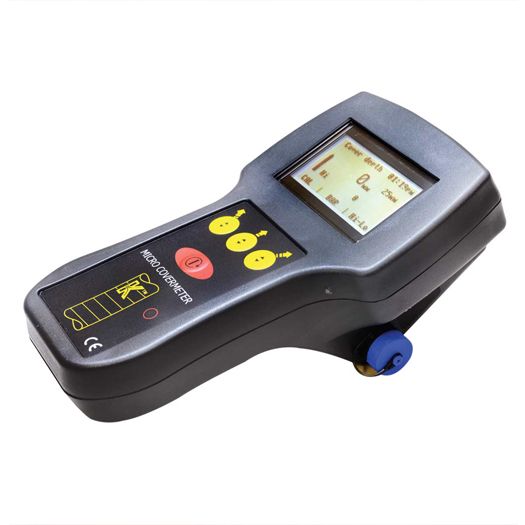

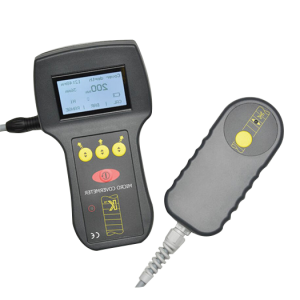

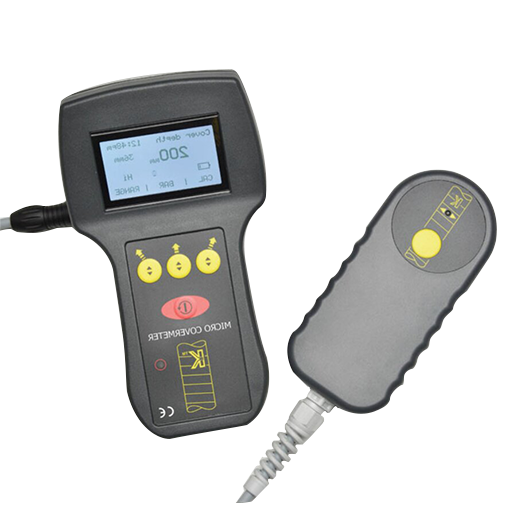

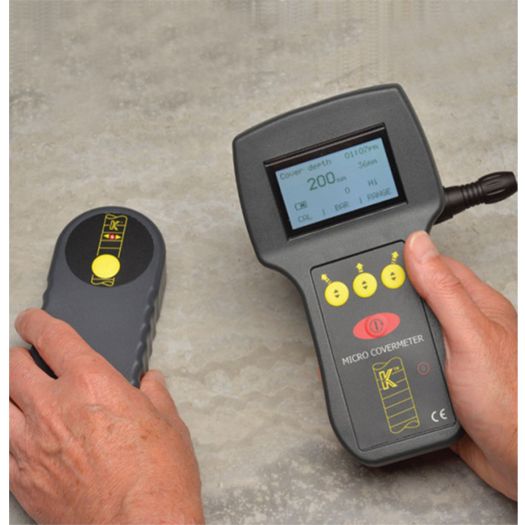

Kolectric MC8022 Micro Covermeter

Concrete Cover Meter

The MC8022 Micro covermeter represents the latest in precision concrete covermeasurement. The Kolectric 8022 provides rebar location, rebar sizing and cover measurement. Based on advanced digital processing & pulse induction measurement, The 8022 is a ruggedized IP65 rated non destructive testing (NDT) instrument that is weather rated , based on MIL Connectors & ideal for on site usage.

Performance meets requirements of BS1881 part 204 completely. Based on rechargeable batteries, the 8022 provides a long operating time of 20 hours allowing full day to multi day usage at site. Accordingly battery chargers are provided to allow easy charging at site.

The 8022 has a datalogging feature allowing time stamped reading logs of cover depth, bar size, data & time for downloading in CSV data format.and is provided with a download cable and software to allow connectivity to a PC / laptop.

Product Specification
Cover Measurement Specification
Cover Range 5mm – 185 mm
Accuracy ±1mm up to 60mm cover
  ±2mm up to 120mm
  ±3mm up to 160mm
  ±4mm over 160mm
Automatic Bar Sizing
Accuracy  ± 0.5mm to ± 1.5 mm
Resolution  0.1mm
Operating Depth  6mm bar up to 60mm cover
  40mm bar up to 80mm cover
Bar Resolution
Bar size  Cover  Minimum spacing
16mm 60mm 70mm
16mm 100mm 110mm
25mm 130mm 150mm
Operating Parameters
Operating Weight                              800g (instrument+probe+cable)
Operating Temp  -10°C to+50°C
Battery Operation  20 hrs

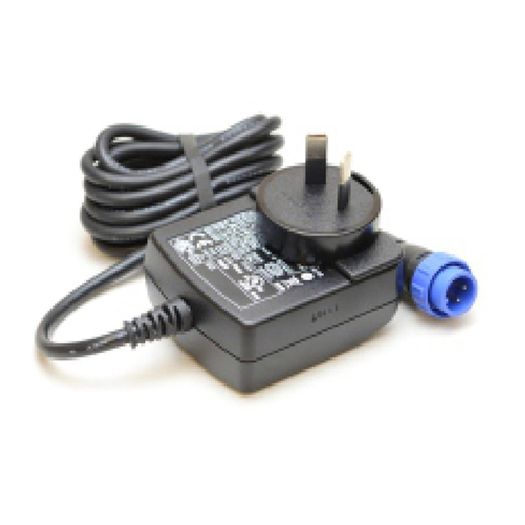

Battery Charger  110 – 240V AC
Ingress Protection  IP65
  • Fast & Highly accurate measurement of concrete cover Quick, clear indication of Rebar Location.
  • Automatic measurement estimation of Rebar size.
  • Rapid area scanning for low-cover.
  • For non-standard bar sizes, large diameter pipes or other pre-fabricated items, the MC8022 can also show absolute measurements that can be used to look up cover using custom tables.
  • Built-in data logging with time stamped readings logs cover depth, bar size, data & time for downloading in CSV data format.
  • Minimum rebar spacing of 70mm is the best in the industry allowing high accuracy measurements.
