Breeze micro cable blowing machine - CBS UK

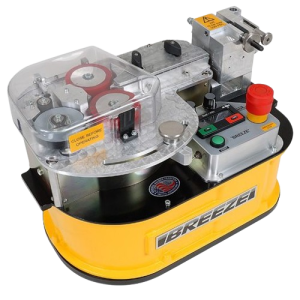

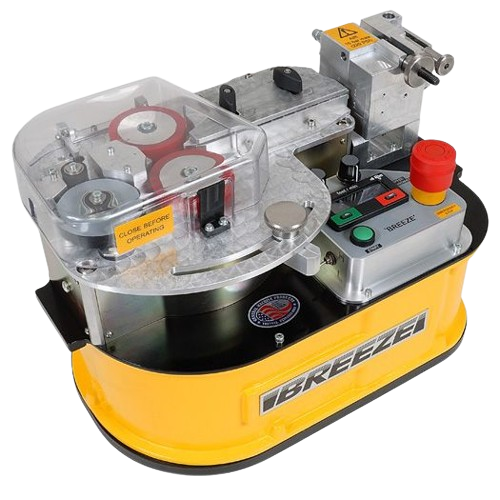

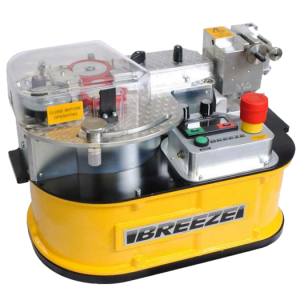

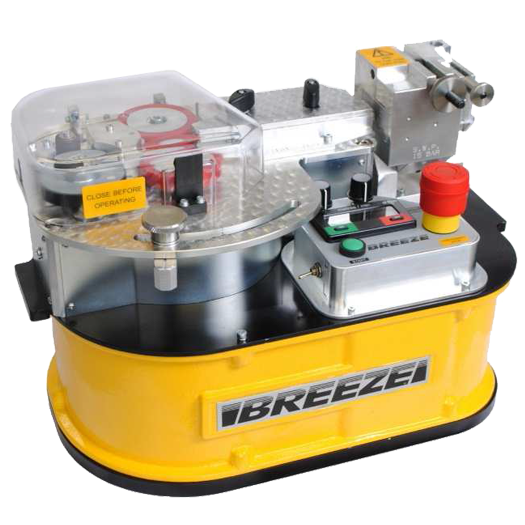

Breeze micro cable blowing machine has been designed to meet the growing need for the installation of micro cables. Small and portable with ergonomic controls, it is ideally suited for external or internal use. The complaint double driven cable rollers provide secure grip whilst safely handling the cable. The pushing force can be set to match the cable stiffness, and the speed control is fully adjustable between zero and maximum. Recent improvements to the machine implement a high/low torque switch giving greater sensitivity when adjusting low-end torque. This allows the installation of a greater range of cables down to 1mm in diameter.

The machine is retained in a lightweight, robust aluminium housing and supplied completed with working/carrying cased and “J” Mac air coupling.

A full range of accessories is available to handle the cable and tube range.

Specifications
Product Specification
Specification
Cable Diameter : 1 to 8 mm
Tube Size (Outside Dia) : 5.0 to 16 mm
Cable Speed (Adjustable) : 0-62m/min
Maximum Air Pressure 15 Bar
Power Requirement : 220/110 Volt
    AC 50/60 Hz
Length : 480 mm
Width : 350 mm
Height : 620 mm
Weight : 60 kg
Features
Features
  • The pushing force can be set to match the cable stiffness, and the speed control is fully adjustable between zero and maximum.
  • Recent improvements to the machine implement a high/low torque switch giving greater sensitivity when adjusting low-end torque.
  • This allow the installation of a greater range of cables down to 1mm in diameter.
  • The machine is retained in a light weight, robust aluminium housing and supplied completed with working/carrying case and “J” Mac air coupling.
  • A full range of accessories is available to handle the cable and tube range.


Video
Video
Product Info Downloads
Product Info Downloads

Product Information files contain the essential technical detail you need to make informed decisions on any particular product. Simply click on a title to download a PDF copy of that file. If you wish a hard copy of a brochure, technical advice on any product or a demonstration then please contact us. We're always happy to help!

Title
File Type
File Size
Last Uploaded
application/pdf
163.92 KB
March 13 2015 00:43:08
