TEST PRO CV 100

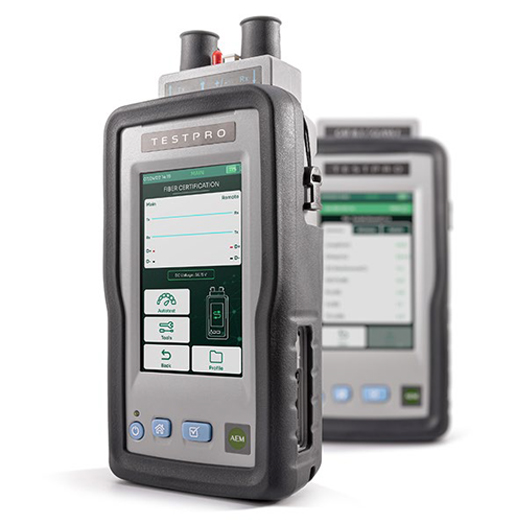

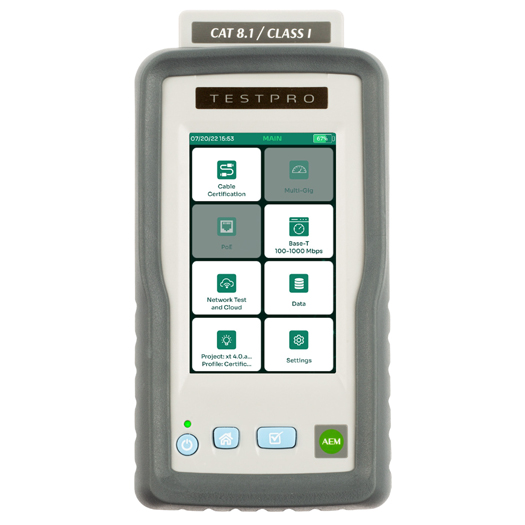

The TestPro CV100 by AEM is a next-generation Multifunction Cable Certification and Verification Tool (C = Certification, V = Verification) for structured cabling systems. Built for network professionals, system integrators, and IT engineers, it combines high-speed copper and fiber certification, PoE validation, and multi-gigabit Ethernet testing in a rugged, handheld platform engineered for precision and performance.

Certification: The TestPro CV100 ensures that a new building’s network is ready from day one — delivering high-speed connectivity, reliable PoE power delivery, and clear, professional proof-of-performance reports from a single device. It tests and certifies the data-carrying capability and Power over Ethernet (PoE) performance of newly installed structured cabling networks from Category 3 through Category 8.2, including Tier 1 fiber optic certification for single mode and multimode systems.

Verification: Professional cable installers are required to verify installations and provide standards-compliant test reports as part of structured cabling manufacturer warranty programs. The TestPro CV100 is approved by leading structured cabling manufacturers for use in their warranty processes, ensuring that all installations are fully validated and backed by manufacturer support.

All-in-One Testing Power: The TestPro CV100 helps achieve fast and accurate project completion, reduces downtime, and lowers operational costs by replacing multiple testing instruments with one modular platform. Its PoE TruePower™ and SNR-based testing capabilities deliver accurate fault diagnosis across cabling, switches, and power sources — while automated, standards-compliant reports simplify documentation, verification, and warranty submission.

Future-Ready Performance: Built for the next generation of networks, the TestPro CV100 can certify CAT6A links in just 6 seconds, analyse PoE load up to 90W, and qualify multi-gigabit link speeds up to 10 Gigabit Ethernet, ensuring complete readiness for 2.5G/5G/10G infrastructures. Ideal for smart buildings, data centres, industrial automation, and enterprise IT environments, the TestPro CV100 guarantees reliable, scalable, and high-performance connectivity — all in a durable, touchscreen-enabled design made for demanding field conditions.

Applications:

  • Data Centres & Server Rooms – Verify high-speed copper and fiber networks up to 40G.
  • Smart Buildings & IoT Networks – Certify and validate PoE-powered devices and long Ethernet links.
  • CCTV & Security Systems – Test network reliability for cameras and access points.
  • Industrial Automation & Transport Infrastructure – Ensure performance for SPE and hybrid powered fiber systems.
  • Telecom & Enterprise IT Infrastructure – Standard-compliant installation testing for structured cabling.

Read more »
Request Quote
TEST PRO CV 100
Features

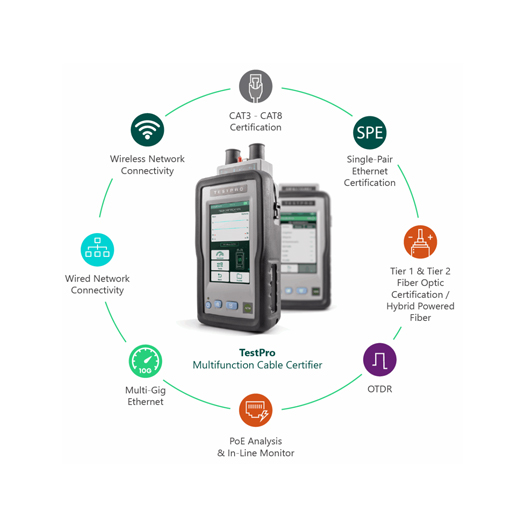

Key Features:

  • Auto test: within 6 seconds
  • Upgrade product features as needed
  • Multigig reading upto 40G
  • Frequency range: 3000 MHz
  • Copper Certification: CAT3–CAT8.2 testing, DC resistance unbalance, TCL, and ELTCTL measurements.

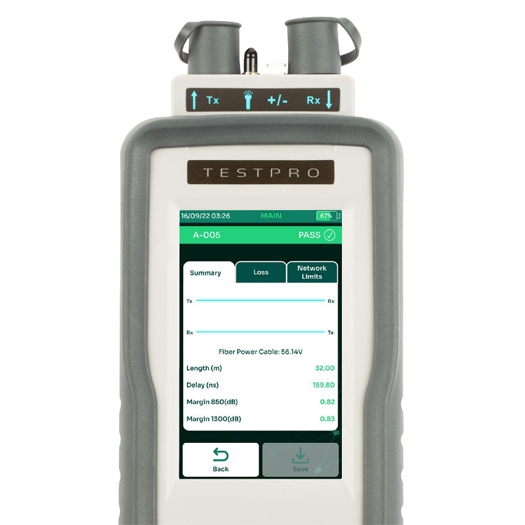

  • Fiber Certification: Tier-1 & Tier-2 multimode and single mode testing with optional OTDR and fiber inspection.
  • PoE Validation: Tests 802.3 af/at/bt & UPoE with real power load (up to 90W).
  • Multi-Gigabit Link Qualification: Validates 1G/2.5G/5G/10GBASE-T with SNR analysis under PoE load.
  • Single Pair Ethernet (SPE) Testing: Verifies long-distance Ethernet up to 1,800 meters.
  • Network Connectivity Tests: Wired & wireless connectivity, switch/VLAN discovery, and ping/traceroute tools.
  • Hot-Swappable Adapters: Extend capability for coax, patch cords, MPTL, and hybrid fiber.
  • Comprehensive Software Support: TestDataPro™ PC & Cloud for project management and PDF reporting.
Specification

Technical Specifications:

TestPro Platform (All Versions)
Measurement Time CAT6A auto-test (including TCL and resistance unbalance tests): 6 sec
CAT8 Class II auto-test: 30 sec
Wiremap All possible wire connection situations identified, as long as two wires are connected end-to-end on any pins
DC Resistance Range: 0 to 100 W
Loop resistance, pair-to-pair resistance unbalance measurement meets TIA 1152A specs
Tone Generator 730Hz and 1440 Hz
ual-Ended RF Measuremen IL, RL, NEXT, ACR-F, TCL All mandatory and optional RF measurements as per TIA and ISO/IEC standards
Single-pair link testing license with supported length for dual ended testing greater than 1,000 m
Length (Propagation Delay Measurement Dual ended test: 0-600m with 0.1m resolution (0-6,000 nsec with 1 nsec resolution)
Delay skew measurement with 1 nsec resolution
Supportable Cabling 4-pair twisted pair cable
 1-pair twisted pair cable
Coax cable
Optical cables (SM/MM pair)
TDR-RL 0-100 m (resolution: 1 m)
Distance-to-fault
TDR-NEXT 0-100 m (resolution: 1 m)
Impedance 0-1000 Ω
0.1 Ω resolution in 90-110 2 range



Test Standards Compliance & Conformity
Copper Certification ANSI/TIA-568.2-D, ISO 11801
ANSI/TIA-1152-A (Levels IIIe and 2G), IEC 61935-1 Ed. 4 (Levels IIIe and V) and IEC
61935-1 Ed. 5 Draft 46/595/CD (Levels VI Class I and Class II)
Fiber Optic Certification TIA-568.3-E and ISO/IEC 14763-3 Ed 2.1
Single Pair Ethernet SPE Cabling Standards: TIA 568.5 (in draft), ISO/IEC TR 11801-9906-2020. SPE Field
Test standards: TIA-5071 (in draft), IEC-61395-4 (in draft). IEEE Single Pair Ethernet
Application standards supported: 1000BASE-T1, IEEE 802.3bp; 100BASE-T1, IEEE
802.3bw; 10BASE-T1, IEEE 802.3cg.
Power Over Ethernet IEEE 802.3 af/at/bt, UPoE
Multi-Gigabit Link
Speed Testing		 IEEE 802.3 up to 10GBASE-T
Wired Network
Connectivity Testing		 CDP, LLDP
Wireless Network
Connectivity Testing		 IEEE 802.11N & IEEE 802.11AC maximum wireless speed up to 300Mbps on 2.4GHz band or
up to 866Mbps on 5GHz band
TestPro Platform (All Versions) Each platform in a kit comes with a Certificate of Calibration traceable to NIST.
Size
 200mm X 105mm X 50mm
Display 5” TFT color touch screen, resolution 800 x 480 pixels
Battery Li-Ion, 3.7V / 13,200 mAh, 9 hr battery life typical
Power Adapter 5V, 3A (supplied), 5-12V (supported), 2.1mm DC jack
Platform Operating System Linux
USB Interfaces USB A for flash drive storage, Micro USB for connecting to PC
RJ-45 Side Port  10/100/1G network connectivity test port
Test Adapter To Platform
Interface		 High-frequency connector rated for 5000 insertion cycles, Hot-swappable
Measurement Engine 9-channel dual-ended mixed-mode RF and DC measurement engine. Industry’s highest
performance patent-pending measurement architecture for data cable testing.
Frequency Range 0.1 – 3,000 Mhz
Power Over Ethernet (K60E, K61E, K71E)
Features/Test Function
 PoE source type detection, Load test up to 90W, Identification of PoE pairs, Substained load monitor
Multi-Gigabit Ethernet (K60E, K61E, K71E)
Autotest Parameters
 Signal to Noise Ratio at each speed across each pair, Cable Diagnostics, PoE Detection
Network Testing Ethernet network discovery, Switch detail (Port, VLAN, Capabilities), Traceroute Traffic generator/monitor, Ping, TCP Connect, Wi-Fi : Identify SSID’s and measure RSSI



Fiber Optic - Common to both MM and SM (K11E, K41E, K51E, K61E, K71E)

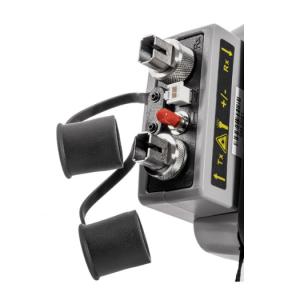

Test Interface Supplied Test Interface: interchangeable FC on Tx port and interchangeable LC on Rx port.
FC-LC (Tx) and LC-LC (Rx) Test Reference Cords included with all adapter kits (AD-MM-K01E,
AD-SM-K01E. All TestPro Kits with fiber option include above plus SC interface
adapters for Tx and Rx ports, FC-SC (Tx) and SC-SC (Tx and Rx) Test Reference Cords.
VFL Light Source Wavelength 650nm
Volt-Ohm Meter Measurement
Range, Hybrid Powered Fiber		 0-60V DC, 0-100 Ω



Fiber Optic - Multimode and Singlemode Adapter - Specific Information
Wavelengths 850 nm, 1300 nm 1310 nm, 1550 nm
Light Source LED Fabry-Perot Laser
Transmit Power -20dBm typical -2dBm typical
Encircled Flux Compliant to IEC-61280-1-4 and TIA52614-C-2015 as per supplier data sheet Not applicable
Length Measurement Range: up to 2km (subject to maximum of 10dB link loss), Length measurement resolutions: 0.1m Range: up to 20km (subject to maximum 20dB link loss), Length measurement resolution: 0.1m
Dual Ended Loss Dual ended loss measurement: 0 to -10dB Dual ended loss measurement: 0 to -20dB
Fiber Optic - OTDR
Parameter Multimode Singlemode
Wavelength Range 850 nm +/- 10 nm, 1300 nm +35/-15 nm 1310 +/- 25 nm, 1550 +/- 30 nm
Compatible Fiber Type 50/125 µm, 62.5/125 µm for multimode Single mode
Event Dead Zone 2.5 m typical for 850 nm, 4.5m typical for 1300 nm 0.6 m typical for 1310 nm, 0.6 m typical for 1550 nm
Attenuation Dead Zone 2.5m typical for 850 nm, 4.5m typical for 1300 nm 3.6 m typical for 1310 nm, 3.7m typical for 1550 nm
Dynamic Range 25dB for 850 nm, 27dB for 1300 nm 29dB for 1310 nm, 27dB for 1550 nm
Max Distance Range Setting 40 km 130 km
Distance Measurement Range 9 km for 850 nm, 35 km for 1300 nm 80 km for 1310 nm, 130 km for 1550 nm
Reflectance Range -14 dB to -57 dB for 850 nm, -14 dB to -62 dB for 1300 nm -14 dB to -65 dB for 1310 nm, -14 dB to -65 dB for 1550 nm
Pulse Width 3, 5,10, 15,…,24995, 25000 nsec 3, 5,10, 15,…,24995, 25000 nsec



FAQ

  • How fast is certification testing with TestPro CV100?

    The TestPro CV100 performs a complete CAT6A Autotest in just 6 seconds, including parameters such as Return Loss, NEXT, TCL, ELTCTL, and DC Resistance Unbalance.
    This speed allows installers to test more links per day, reducing labor time and project costs.

  • What categories of copper cabling can TestPro CV100 certify?

    TestPro CV100 supports CAT3 through CAT8.2 and Class I / Class II structured cabling systems.
    Its 3000 MHz (3 GHz) measurement platform exceeds the 2000 MHz requirement, ensuring investment protection for emerging standards and future Ethernet speeds up to 40 Gigabit.

  • Can TestPro CV100 test Power over Ethernet (PoE)?

    Yes. It performs comprehensive PoE validation (refer product selection guide for models which offer the feature), including:
    • Load testing for real power at the device jack
    • Voltage, current, wattage, and class identification
    • Support for IEEE 802.3 af / at / bt and UPoE standards
    • Sustained load monitoring using an external load box to detect power fluctuations
    This ensures the installed cabling and PSE (switch or injector) meet PoE device power demands up to 90 W.

  • What is Multi-Gigabit link speed qualification?

    The CV100 verifies cabling readiness for 1G / 2.5G / 5G / 10G Ethernet using Signal-to-Noise Ratio (SNR)-based testing under simultaneous traffic and PoE load.
    It provides a Pass/Fail indication with per-pair headroom detail, ensuring the cabling can reliably support higher network speeds — essential for Wi-Fi 6/6E and 10G infrastructure.

  • Does TestPro CV100 support fiber optic certification?

    Yes. With optional adapters, it supports:
    • Tier-1 (Optical Loss Test) for Multimode & Singlemode fibers
    • Tier-2 (OTDR) testing for pinpointing faults or loss events
    • Hybrid Powered Fiber voltage/resistance checks
    • Visual Fault Locator (VFL) and USB-connected Fiber Inspection Probe for end-face cleanliness
    All measurements are compliant with TIA 568.3-E and ISO/IEC 14763-3 standards.

  • What network connectivity functions are available?

    TestPro CV100 integrates wired and wireless network testing, including:
    • Network discovery showing connected devices, switch port/VLAN, and IP/MAC details
    • Ping / Traceroute / Tone generator for troubleshooting
    • Wi-Fi testing (via optional Edimax EW-7822ULC USB adapter) for SSID discovery, RSSI, and roaming verification.

  • How are test results managed and reported?

    Every unit includes TestDataPro PC Software and access to TestDataPro Cloud.
    • Store > 10,000 results in memory
    • Upload results wirelessly or via USB
    • Generate automated PDF reports for copper, fiber, PoE, and network tests
    • Reports are standards-compliant and suitable for project handover or warranty submission.

  • What accessories and adapters are available?

    AEM provides an extensive range of “Optional” hot-swappable test adapters, including:
    • Channel / Permanent Link (CAT8.1, CAT8.2)

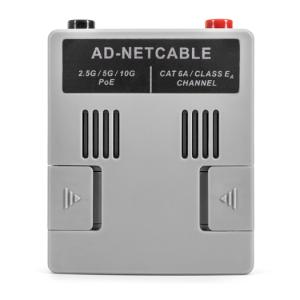

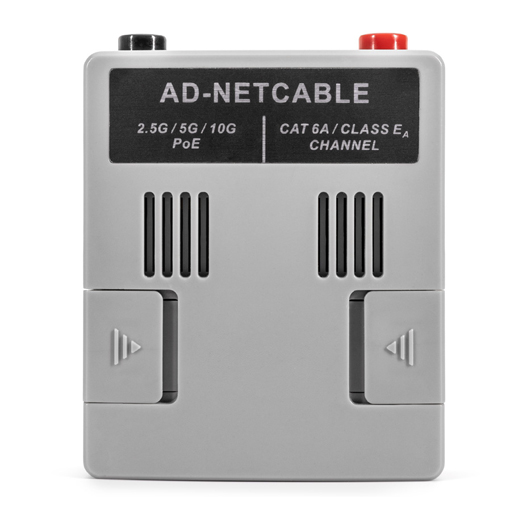

    • PoE + Multi-Gig (AD-NET-CABLE)
    • Single Pair Ethernet (SPE) IEC 63171-1 and 63171-6
    • Fiber Loss & OTDR Kits (SM / MM)
    • Coax, M12, Patch Cord, and Bare Wire adapters
    Adapters can be easily interchanged to extend functionality.

  • Is TestPro CV100 approved for structured cabling warranty programs?

    Yes. The TestPro CV100 is approved by leading structured cabling manufacturers for use in their system warranty programs.
    Installers can generate certification reports recognized by the manufacturer for warranty validation.

  • What warranty and support options are offered?

    • Standard: 2 years on the platform, 1 year on adapters
    • Extended: Up to 5 years upon product registration
    • AEM Extended Care Plans available for additional coverage, damage protection, and calibration support.
    Stanlay provides sales, service, calibration, and technical support in India.

  • Can TestPro CV100 features be upgraded later?

    Yes. The platform is modular and upgradeable — new features (e.g., OTDR, Multi-Gig, SPE) can be added through hot-swappable adapters or software activation, protecting your investment as standards evolve.
