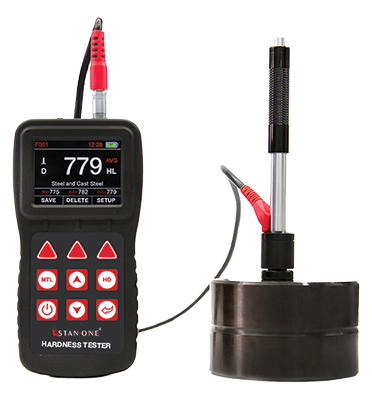

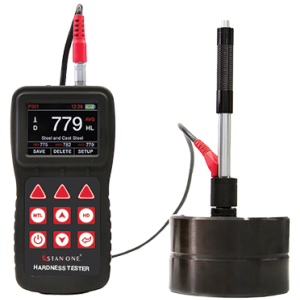

STH600 Automatic Portable Hardness Tester

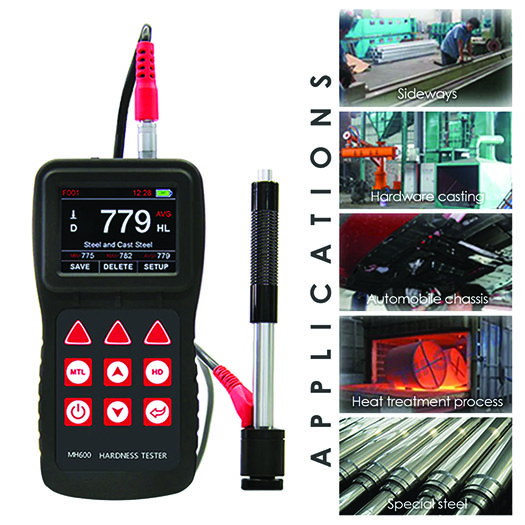

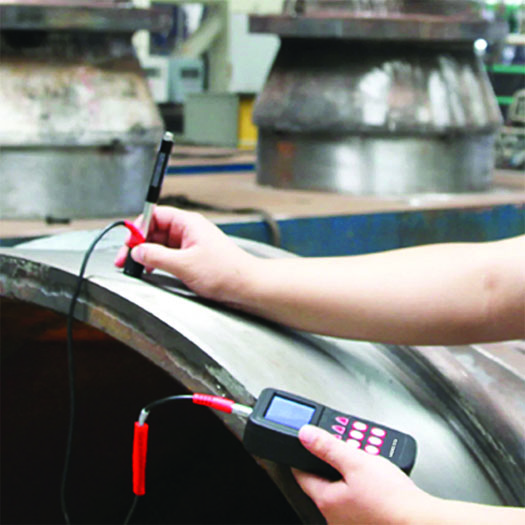

The STH600 Automatic Portable Leeb Hardness Tester is an intelligent portable hardness tester designed for quick and easy on-site metal hardness testing. IP65 Environmental rated against corrosion from oil, dust, and harsh field environments. It features multi-point calibration to reduce errors and automatically identifies the measuring direction, issuing alarms for out-of-range results. With support for multiple hardness scales and low power consumption, it's versatile and efficient. Widely used in metal processing, equipment failure analysis, and inspections, it's especially suited for testing large, no-removable components, enhancing production quality and cost-efficiency as a crucial precision instrument

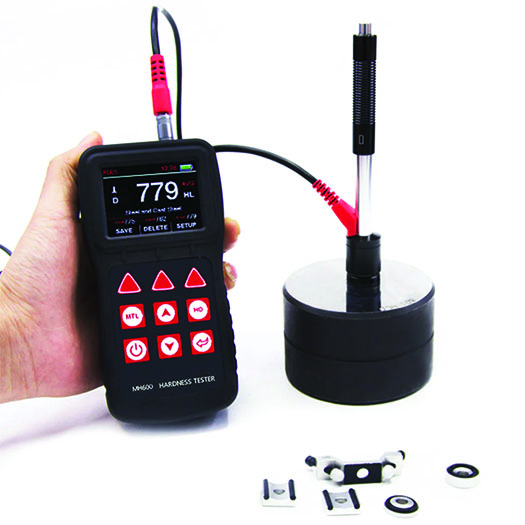

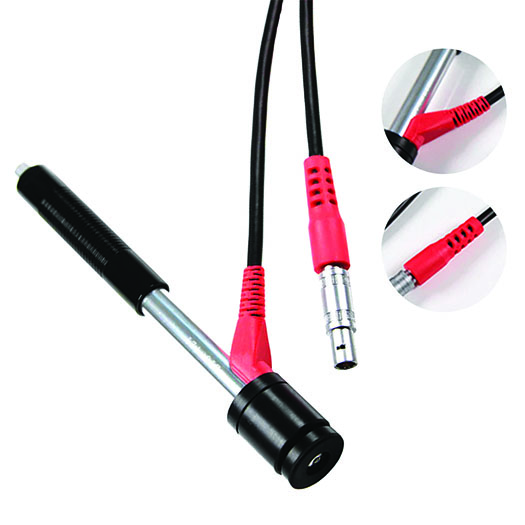

The STH600 is provided with a (D) type impact device, as standard.

Optional (Extra)

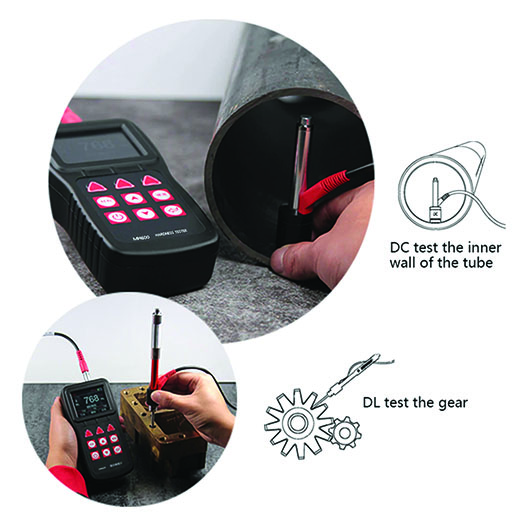

DC type: Optional Configuration for testing hole or hollow cylindrical.
DL type: Optional Configuration for testing Slender narrow groove or hole.
D+15: Optional Configuration for testing groove or re-entrant surface.
G type: Optional Configuration for testing Small, light, thin parts and Surfaces with hardened layers.

Automatic 360° direction detection for versatile hardness testing.

Request Quote

Features

Versatile Compatibility: Can measure the Leeb hardness of all metallic materials.
6 impact devices can be matched to one main unit.
360° Measurement: Automatic direction detection for versatile hardness testing.

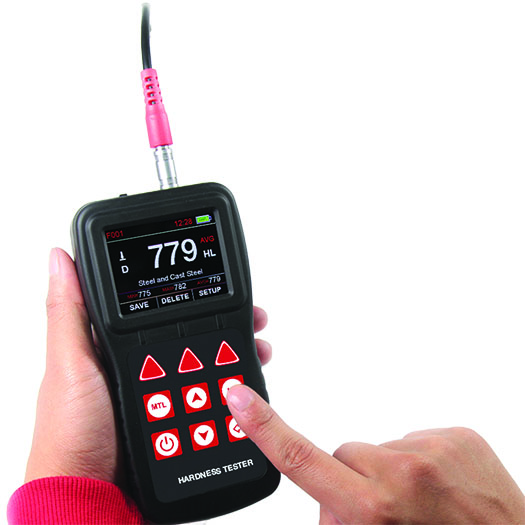

Color Display: 320x240 TFT LCD offers rich data, intuitive visuals, and adjustable brightness. Ideal for diverse lighting conditions.
Portable and rugged design for field operations.
Stable performance in harsh environments, resistant to vibration and shock.
Data Storage: Stores 500 groups of detailed hardness data, including measurements and context.
Long-lasting power with 2 AA batteries, 100+ hours usage, smart power-saving.

Specification

Measuring Range	(170~960) HLD
Measuring Direction	vertically downward, oblique, horizontal, oblique, vertical upward, automatically identify
Error	D,±6 HLD
Repeatability	D,6 HLD
Material	Steel and cast steel, Cold work tool steel, Stainless steel, Grey cast iron, Nodular cast iron, Cast alu
Hardness Scale	HL,HB,HRB,HRC,HRA,HV,HS
Impact Energy	D----11mJ
Impact Weight	D----5.5g/7.2g
Impact Ball Hardness	D----1600HV
Impact Diameter	D----3mm
Impact Ball Material	D----Tungsten carbide
Sample Surface Roughness	D----1.6μm; C----0.4μm
Min Depth of Harness layer	D----≥0.8mm; C----≥0.2mm
Calibration	Single-point and multi-point calibration function
Auto Power Off	About 100h (without backlight)
Communication Port	USB1.1
Shell Material	ABS plastic
Power	3V(two AA size, alkaline batteries)
Display Type	Color TFT, 320×240 dots, dot-matric LCD
Data Storage	500 measurement series
Product Dimensions	150mm×76mm×38mm
Product Net Weight	230 grams
Environmental	IP 65
