What is FiBLU?
FiBLU is an app-based fiber testing and certification solution designed for enterprise, data center, industrial, and mission-critical fiber networks.
OTDR
Fiber Optic Splicing Machine
Optical Loss Test
Optical Power Meters
Optical Light Source
TDR Cable Fault Locator
Fiber Optic Visual Fault Locators
Network Analyzer
Lan Testers
Fiber Tools
Fiber Cleavers
Optical Fiber Identifier
Fiber Optical Attenuator
Tone & Probe Kit
Fiber Optical Talk Set
Rocoil Rail Current Transducer
Bit Error Rate Tester
.png)
.png)

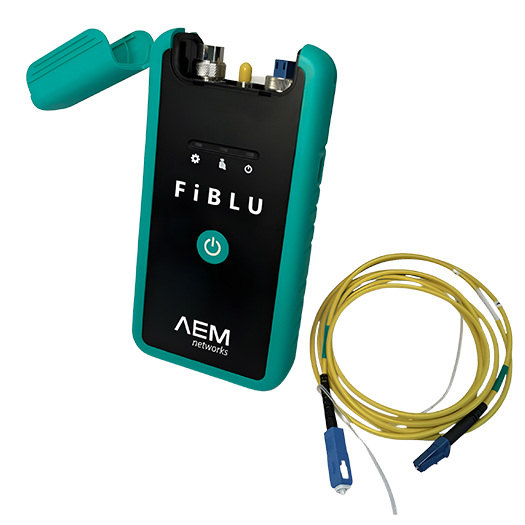

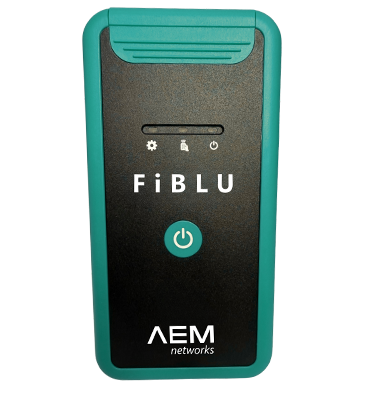

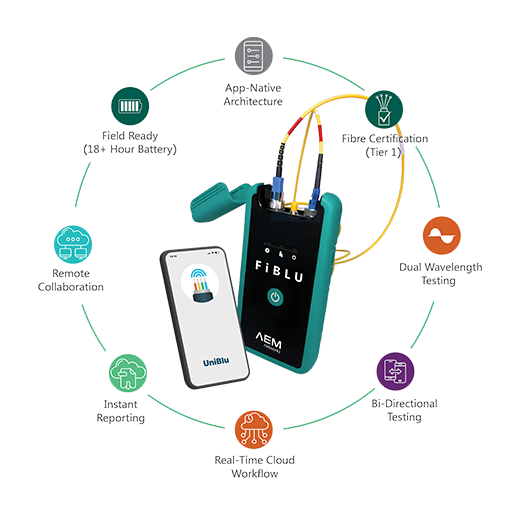

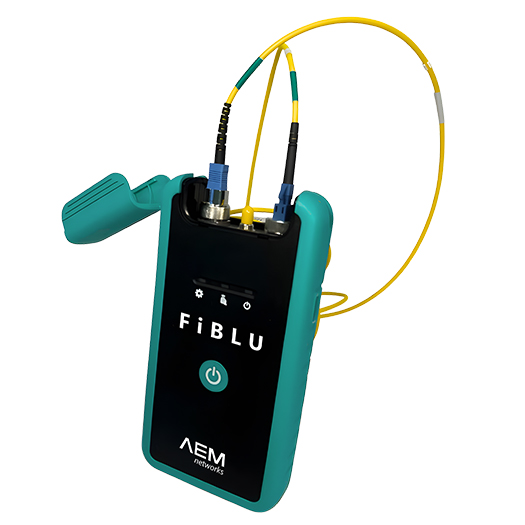

FiBLU by AEM Networks is a next-generation fiber certification solution that combines precision test hardware with an intelligent mobile and cloud-based software platform. Designed for enterprise networks, data centers, industrial facilities, and mission-critical environments, FiBLU delivers fast, accurate, and standards-compliant fiber certification with real-time collaboration and reporting.

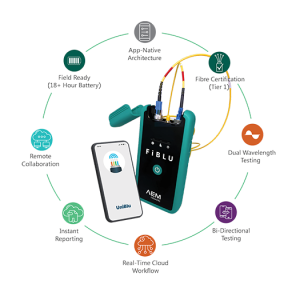

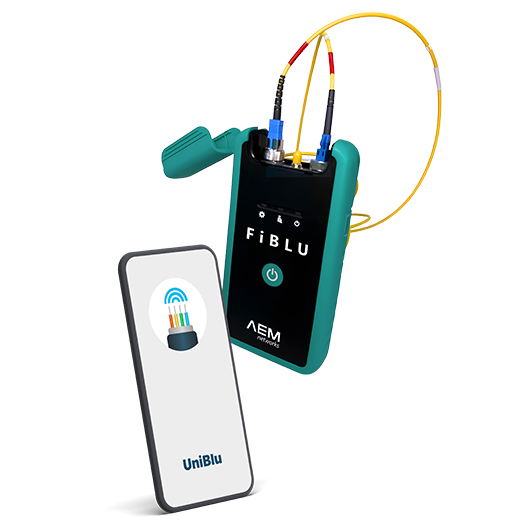

Supporting both single-mode and multimode fiber networks, FiBLU features dual-wavelength bi-directional testing, cloud-enabled project management, and seamless integration with the UNIBLU mobile app. Real-time data synchronization and centralized cloud records provide instant visibility into testing progress, enabling faster project completion, improved compliance and streamlined handovers.
FiBLU enhances operational efficiency through rapid Auto Test functionality, remote expert collaboration and intelligent reporting. Its software-driven architecture enables continuous feature enhancements without frequent hardware replacements, reducing operational costs and extending product lifespan. FiBLU minimizes rework, improves network reliability and delivers a lower total cost of ownership by ensuring accurate, standards-based certification.
Applications:
|
Parameter |
FiBLU-MM (Multimode) |
FiBLU-SM (Singlemode) |
|
Source Type |
LED (Encircled Flux Compliant) |
Laser |
|
Wavelengths (nm) |
850 ± 20, 1300 ± 20 |
1310 ± 20, 1550 ± 20 |
|
RMS Spectral Width Range (nm) |
35 |
5 |
|
Output Power |
850 nm: 10–20 µW |
1310 nm: 1.5–2 mW |
|
Length Measurement Range |
2 km |
20 km |
|
Transmit and Receive Interface Connectors |
Interchangeable FC, SC and LC Adapters |
|
|
Certification Test Modes |
Loopback or Dual Ended, Single-Direction or Bi-Directional, Simplex or Duplex |
|
|
Test Standards |
ISO/IEC, TIA, IEEE, Application Specific Loss-Budget |
|
|
Auto Test Speed |
Loopback Mode: 5 seconds; Dual Ended Mode: 6 seconds |
|
|
Insertion Loss Accuracy |
≤ 0.2 dB |
|
|
Measurement Repeatability |
≤ 0.05 dB |
|
|
Length Measurement Accuracy |
± (1 m + 1% of length) |
|
|
Power Measurement Range |
850 nm: 0 to -30 dBm; 1300/1310/1550 nm: 0 to -50 dBm |
|
|
Visual Fault Locator (VFL) |
||
|
VFL Light Source |
650 nm Laser |
|
|
Power Output |
1 mW |
|
|
Output Modes |
1.5 Hz Pulsed Mode |
|
|
Connector Adapter |
2.5 mm Universal |
|
|
Laser Safety |
Class II |
|
|
Environmental Specifications |
||
|
Operating Temperature |
0°C to 45°C |
|
|
Storage Temperature |
-30°C to +60°C |
|
|
Operating Relative Humidity |
0–90% RH (0°C to 35°C); 0–70% RH (35°C to 45°C) |
|
|
Safety |
IEC 61010-1, 3rd Edition |
|
|
Operating Altitude |
13,123 ft (4,000 m) |
|
|
EMC |
EN 61326-1 |
|
|
General Specifications |
||
|
Battery |
Li-Ion, 3.7 V / 2600 mAh |
|
|
Battery Capacity |
30 Hours Battery Life (Typical) |
|
|
Charging Time |
2 Hours |
|
|
Power Adapter |
5 V / 1 A, USB-C Type |
|
|
Mobile Application |
Android 11 or Higher, iOS 13 or Higher |
|
|
Connectivity |
WPAN 2.4 GHz v4.2 or Higher |
|
|
Dimension (L × W × H) |
177 × 92 × 42 mm |
|
|
Weight |
350 g |
|
FiBLU is an app-based fiber testing and certification solution designed for enterprise, data center, industrial, and mission-critical fiber networks.
Unlike conventional testers, FiBLU uses a smartphone-powered platform with cloud connectivity, real-time reporting, and software-driven upgrades for improved efficiency and collaboration.
FiBLU supports both single-mode (SM) and multi-mode (MM) fiber networks with dual-wavelength testing capabilities.
Yes, FiBLU provides real-time cloud synchronization, enabling instant reporting, centralized records, and remote result sharing.
Yes, technicians, project managers, and remote experts can collaborate instantly through cloud-based workflows and shared test results.

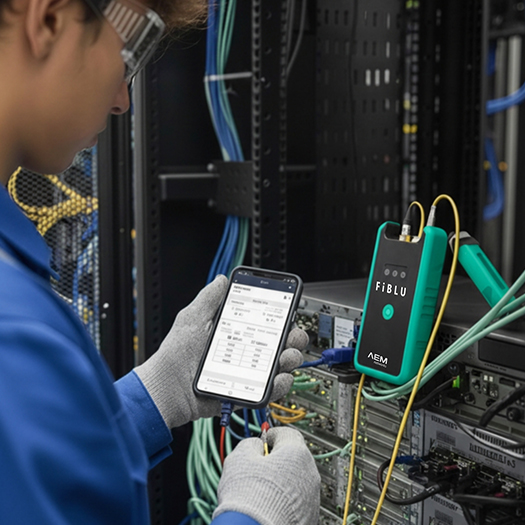

Absolutely. FiBLU is optimized for enterprise networks and high-density data center environments requiring precise and scalable fiber certification.
Its software-driven architecture eliminates frequent hardware replacement needs and delivers continuous feature updates through the mobile app.
Yes, FiBLU supports ISO/IEC, TIA, IEEE, and application-specific loss-budget standards.
The UNIBLU app is available for both Android and iOS devices.
FiBLU offers long-lasting battery performance with up to 18+ hours of continuous operation and supports USB-C fast charging.
FiBLU supports interchangeable FC, SC, and LC adapters, providing flexibility for various fiber network environments.
FiBLU is ideal for:
• Enterprise Networks
• Data Centers
• Campus Networks
• Industrial Facilities
• Smart Buildings
• Mission-Critical Infrastructure
• Fiber Installation and Commissioning Projects
FiBLU can complete certification testing in as little as 5 seconds in loopback mode and 6 seconds in dual-end mode, significantly improving field productivity.
FiBLU supports both single-mode (SM) and multimode (MM) fiber networks. The FiBLU-SM variant operates at 1310 nm and 1550 nm, while the FiBLU-MM variant operates at 850 nm and 1300 nm.

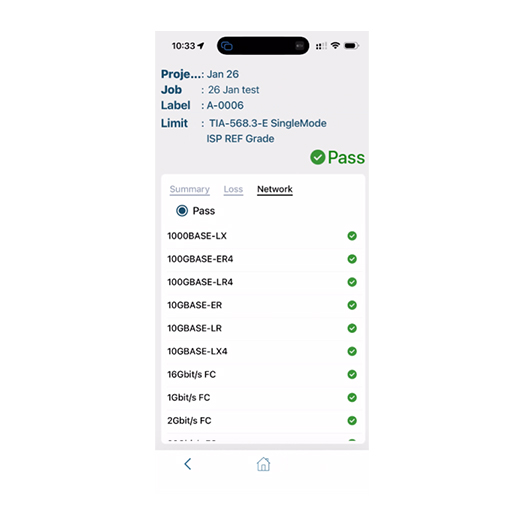

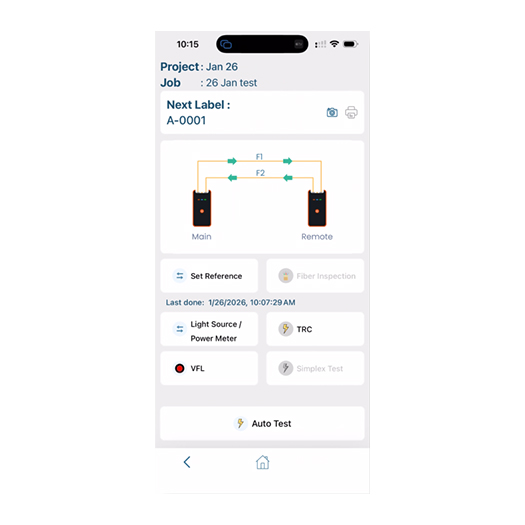

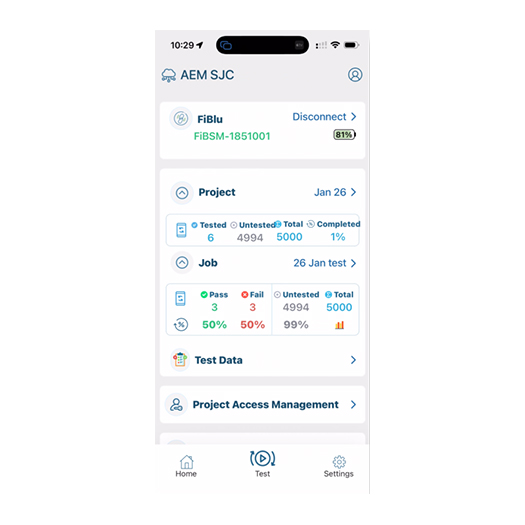

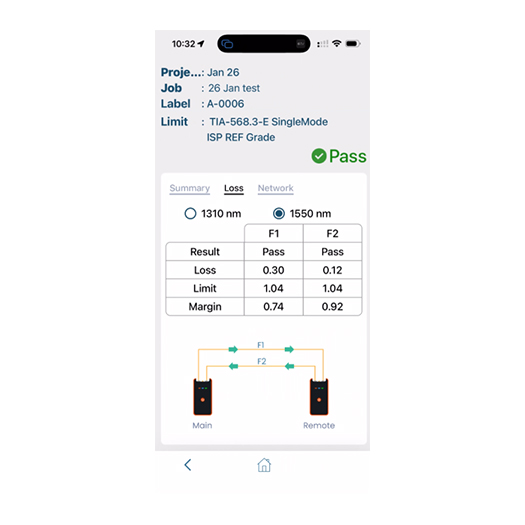

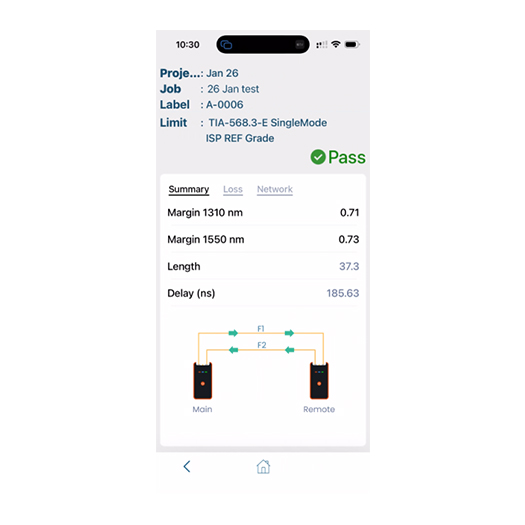

The UNIBLU app allows users to configure tests, view results, generate reports, manage projects, scan cable labels, capture GPS-tagged test records, and synchronize data to the cloud in real time.
Yes. FiBLU enables real-time cloud synchronization, allowing project managers, supervisors, and remote experts to review test results instantly and collaborate with field teams.
Yes. FiBLU can verify fiber performance, identify excessive loss, detect installation issues, and assist with troubleshooting and ongoing network maintenance.
