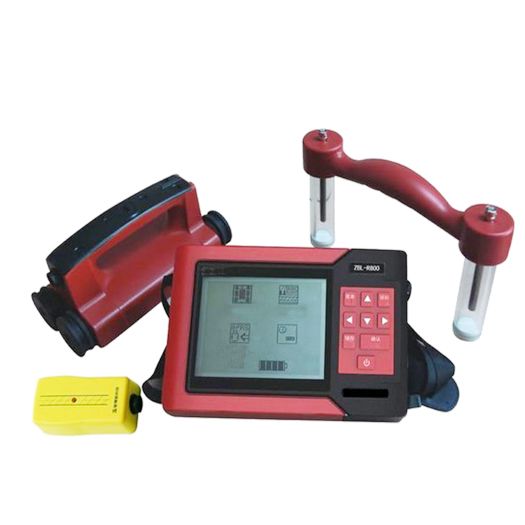

R800 Multifunction Rebar Scanner & Corrosion Detector

The R800 Multi-function Rebar Scanner and Corrosion detector is a high performance NDT instrument that is utilized to examine the active corrosion in rebar in buildings & structures and also provides the capability to detect location of rebar in concrete, measure rebar cover and estimate rebar diameter.

The R800 also provides Rebar Grid Scan Orientation and distribution of rebar.

The R800 rebar detection features are based on 2 probe options provided:

  • 4 wheel probe for scanning larger concrete structures and
  • a small rebar detection probe for rebar detection in constricted or tight spaces

The R800 provides three methods of scanning for rebar:

General Scan: for fast detection of rebar.
Dense Rebar Measurement: for allowing detection of rebar in structures which may have presence of high density of rebar such as beams.
Grid Scan: that allows distribution of rebar to be evaluated through grid diagram with definition of rebar cover and diameter in X (Horizontal) and Y (Vertical) directions.

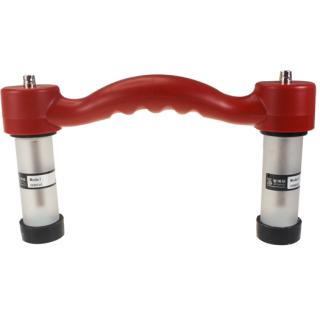

For measuring corrosion potential, the R800's corrosion detection features are based on a two electrode handle system which provides flexibility for the operator to:

  • Test using one electrode based on half-cell potential method.
  • Test using two electrodes based on gradient method. In both cases, electrodes used are copper sulfate type.

The instrument is based on lithium ion rechargeable batteries for full day use.

Product Specification
Rebar Detection
Rebar diameter range (in mm)                                   Ф6mm~Ф50mm
Protective layer thickness range  First range (in mm) 3~98  Second range (in mm) 3 ~196
Maximum allowed error
for protective layer thickness
±1 mm   6~56 3 ~79
±2 mm 57~69  80 ~119
±4 mm  70~98  120~196
Corrosion detection method
Corrosion detection method  Single electrode Double electrode
Measuring Range  ±1000mV 0 ~ 1000 mV
Accuracy  ±1mV  ±1mV
Tested points Interval X   0~100   adjustable
Tested points Interval Y   0~100 adjustable   0~100 adjustable
Power  Built-in rechargeable lithium battery
Battery operating Time    >25 hours
Dimensions 212mm x 134mm x 50mm
Weight 0.9kg
Data transmission wireless transmission & USB thumb drive storage
  • Two probes provided as standard with instrument, providing flexibility to use on a variety of structures.

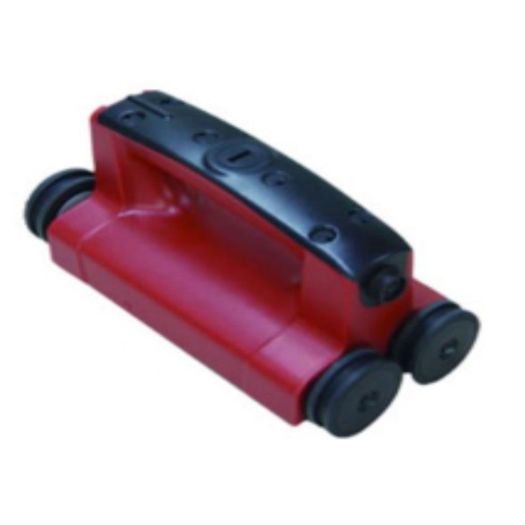

  • Unique 4 Wheel probe, dust proof and waterproof, for fast and reliable rebar scanning on large structures.

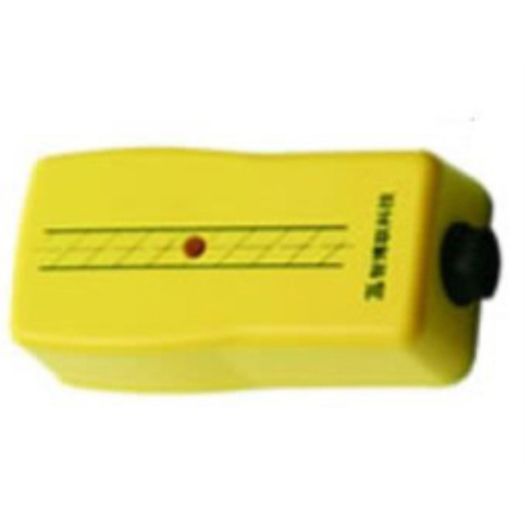

  • Small probe for detection in smaller structure with constricted spaces.
  • The instrument provides the capability to very accurately and comprehensively detect rebar.
  • The instrument display includes a signal strength bar.
  • As the instrument probe comes closer to the rebar, the signal strength bar increases – When on top of rebar, the instrument automatically locks the thickness value of cover.
  • Automatic storage option is available in instrument.
  • The instrument allows parameter setting definition of various parameters including estimated dia, Minimum cover to detect, type of structure etc.
  • The R800 Instrument also contains Data Storage and Data transfer Capability
