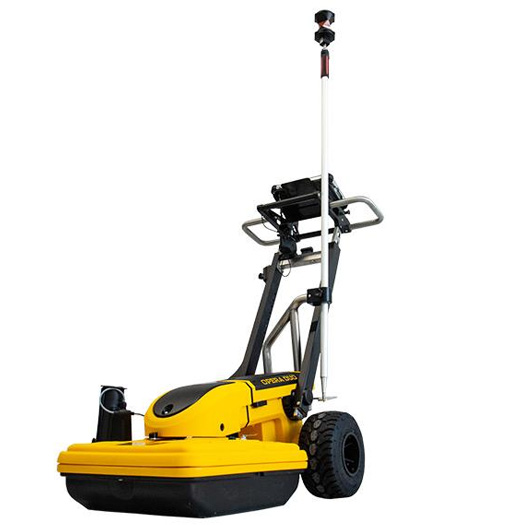

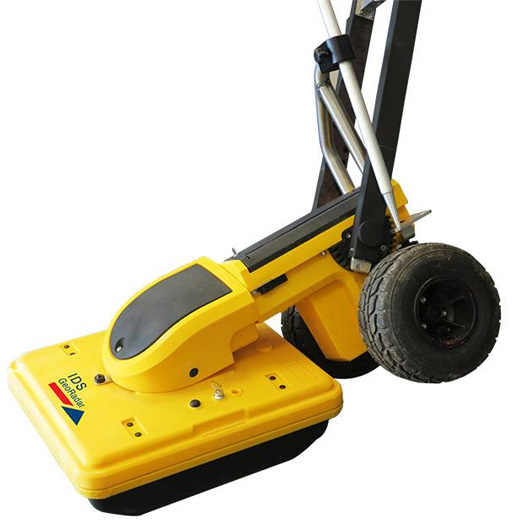

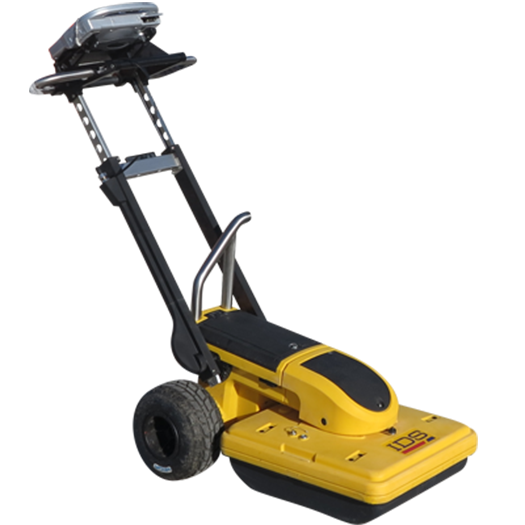

Opera Duo’s software is designed to operate directly on site.

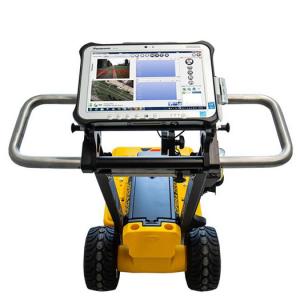

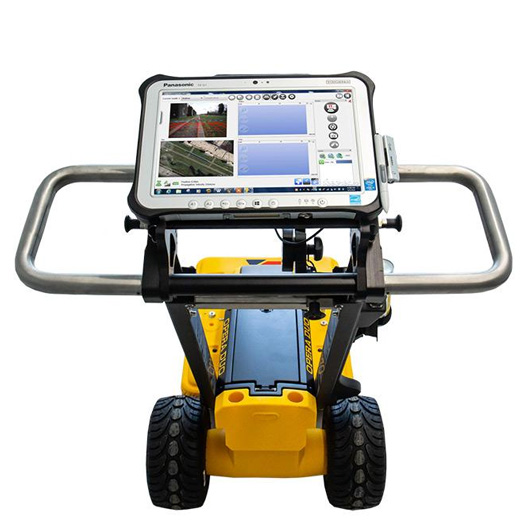

The interface is intuitive, with big buttons which are easy to touch directly with fingers or the pen that comes with tablets. The main window shows a radargram of the two antennas and a geo-referenced map that can be used with GPS and an internet connection.
The software is able to import and navigate maps such as Google Maps, jpg images and lots of other formats. The new assisted acquisition mode guides the user to acquire data in a grid pattern in order to obtain GPR 3D imaging.
The software is able to export a survey report including extracted maps and targets. The targets reported can be exported in a CAD output format directly in the field.
Every project can be exported as a report.
The report includes major information including an overall map of the area, the detected targets along with their coordinates and a general description of the GPR etc.
