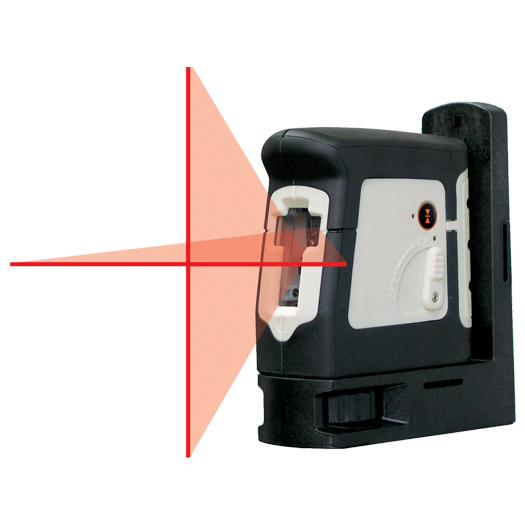

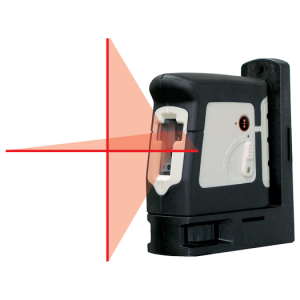

Crossliner ACL2RX Automatically leveled Crossline Laser

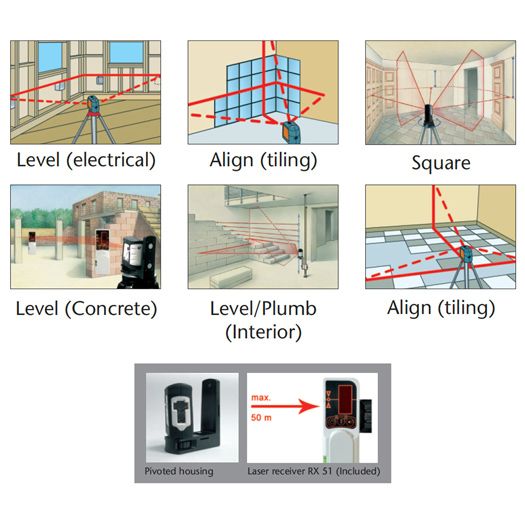

2 Beam Crossline laser that provides Vertical & Horizontal lines  which operate simultaneously for inspection & execution of countless  level & plumb applications such as layout,  marking & transfer  of levels & plumb in building Construction, construction of  steel/iron based structures, precision engineering & fabrication.

Fix the ACL2RX on a wall for projection of beams across a false ceiling, door or vertical structure Or fix it using its built in magnets to a magnetically responsive structure to use for leveing in any enginereing leveling or marking applications. The ACL2RX can also be mounted on a photographic compact tripod.

Specifications
Product Specification
Accuracy 3mm/10m
Self Leveling Range Side-side 3° & forward backward 6°
Leveling Automatic
Operating Range Upto 50m with laser receiver
Laser Source Two 635 nm Lasers
Out Of Level Indication Blinking Laser lines & Acoustic Indication
Power Supply 3x AA 1.5V Batteries
Size (in mm) 135 x 160 x 50
Weight (in g) 900
Item Code: ST - ACL2RX
Features
Features
High Visibility Beams up to 50 m with laser receiver.
Automatic Leveling : Gravity leveled pendulum for self leveling.
Multi Surface Attachment : The multisurface attachment base accessory (included) allows the ACL2RX to be mounted onto a tripod or fixed onto a wall. The base accessory also has built in magnets that allow the unit to be fixedto any horizontal or vertical magnetic responsive surface providing truly versatile utilization of the ACL2RX in a variety of construction, manufacturing and precision engineering environments.

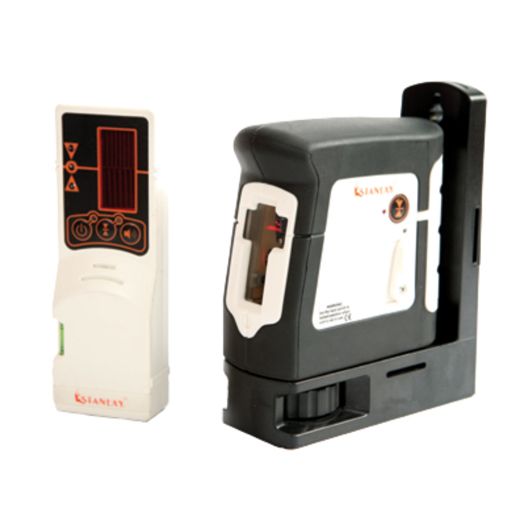

RX-Ready : The integrated hand receiver mode detects the laser lines with the laser receiver RX 51 (provided as standard) up to a max. of 50 m radius – ideal for all interior and exterior applications.


Product Info Downloads
Product Info Downloads

Product Information files contain the essential technical detail you need to make informed decisions on any particular product. Simply click on a title to download a PDF copy of that file. If you wish a hard copy of a brochure, technical advice on any product or a demonstration then please contact us. We're always happy to help!

Title
File Type
File Size
Last Uploaded
application/pdf
792.77 KB
August 22 2014 00:02:46
