Fiber optic light sources are used to test single mode and multimode networks at different wavelengths 850/ 1300/ 1310/ 1490/ 1550/ 1625 nm by injecting an optical signal at a known optical power level for a specific wavelength.
Fiber optic laser light source are available in various model & configurations with feature options of disabling wavelength and auto wavelength ID shifting with wave ID transmit two or more wavelengths (when used with corresponding wavelength ID shifting optical power meter), can change wavelength automatically in every 9 seconds, to allow one-man fiber testing at multiple wavelengths, simultaneously decreasing test time and reducing user errors.
Optical Light Source Selection Guide:
Category
|
Advanced
|
Economy Range
|
Economy Range
|
Model
|

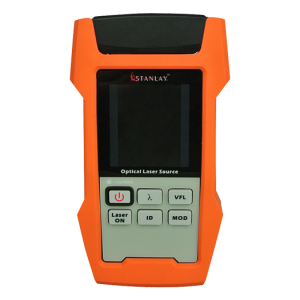

AOS210
|
AOS200
|
BOU350
|
Module Selection
|
M8
|
M3
|
S3
|
S4
|
S5
|
S6
|
V10
|
M8
|
M3
|
S3
|
S4
|
S5
|
S6
|
M8
|
M3
|
S3
|
S4
|
S5
|
Wavelength (nm)
|
850
|
1300
|
1310
|
1490
|
1550
|
1625
|
10mW VFL
|
850
|
1300
|
1310
|
1490
|
1550
|
1625
|
850
|
1300
|
1310
|
1490
|
1550
|
Wavelength Output*
|
2~5
|
2~3
|
2~3
|
Stabilization
|
± 0.05dB/ 1 hr; ± 0.1dB/ 8 hrs
|
± 0.05dB/ 1 hr; ± 0.1dB/ 8 hrs
|
± 0.05dB/ 1 hr; ± 0.1dB/ 8 hrs
|
Output Power
|
> - 6dBm @ 1310nm/1490nm/ 1550nm/1625nm
> -10 dBm @ 850nm/1300nm Optional -3dBm to 0dBm @1310/1550nm
|
> - 6dBm @ 1310nm/1490nm/ 1550nm/1625nm
> -10 dBm @ 850nm/1300nm Optional -3dBm to 0dBm @1310/1550nm
|
> - 6dBm @ 1310nm/1490nm/ 1550nm/1625nm
> -10 dBm @ 850nm/1300nm Optional -3dBm to 0dBm @1310/1550nm
|
Laser Type
|
Class1
|
Class1
|
Class1
|
Modulation
|
270Hz, 1kHz, 2kHz
|
270Hz, 1kHz, 2kHz
|
270Hz, 1kHz, 2kHz
|
Connector Adaptor*
|
FC/PC (or SC)
|
FC/PC (or SC)
|
FC/PC (or SC)
|
Display Type
|
Color LCD display
|
LCD display
|
LCD display
|
Automatic Power Off
|
Yes
|
Yes
|
Yes
|
Auto Wavelength Shifting with Wave ID
|
Yes
|
No
|
No
|
Wave ID
|
Yes
|
Yes
|
No
|
Disabling Wavelength
|
Yes
|
No
|
No
|
Output Power Adjustable
|
Yes
|
No
|
No
|
Power Supply
|
AA Batteries x 3
|
AA Batteries x 3
|
AA Batteries x 2
|
Standard Accessories
|
Carrying bag, calibration certificate, manual, FC/UPC or SC/UPC connector (connector to
be specified at time of ordering)
|
Carrying bag, calibration certificate, manual, FC/UPC or SC/UPC
connector (connector to be specified at time of ordering)
|
Carrying bag, calibration certificate, manual, FC/UPC or SC/UPC
connector (connector to be specified at time of ordering)
|
Optional Accessories
|
Rechargeable batteries and AC/DC adaptor, VFL 10mW, Adaptor: ST
Optional items are at extra cost
|
Rechargeable batteries and AC/DC adaptor, Adaptor: ST
Optional items are at extra cost
|
Rechargeable batteries and AC/DC adaptor, Adaptor: ST
Optional items are at extra cost
|
Stanlay offers optical light source range in association with Greenlee (XL fiber tools) and Tribrer, one of the world’s largest manufacturers of fiber test instruments including optical time domain reflectometer, optical power meter and laser source, visual fault locator, fiber identifier, BER tester, Optical talk set, optical attenuator and fiber tools
