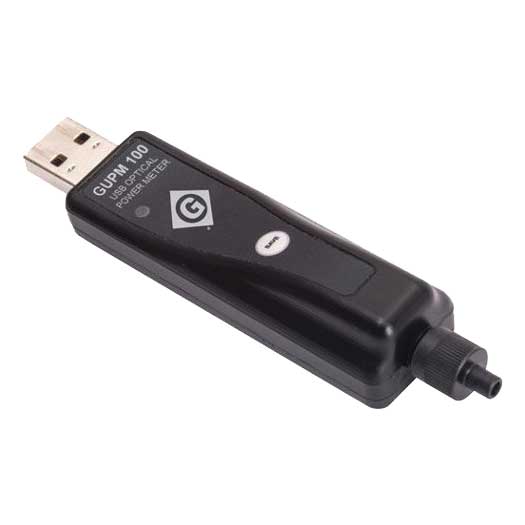

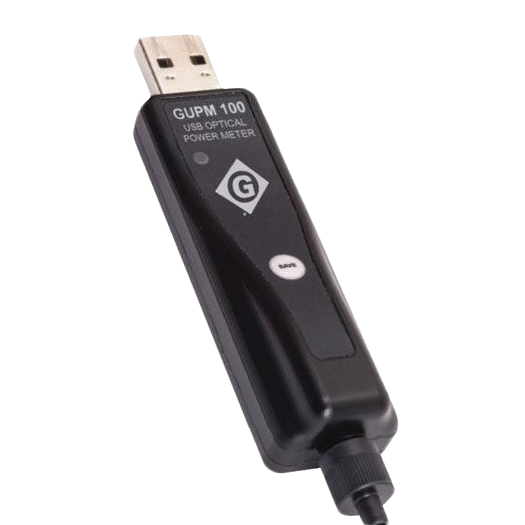

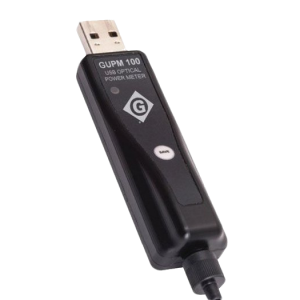

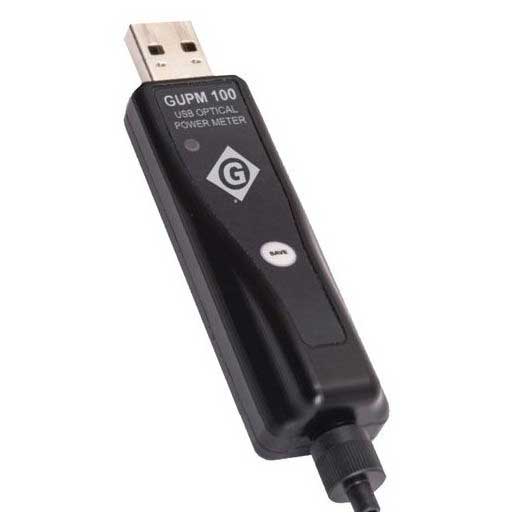

GUPM 100 Optical Power Meter

Fiber Optical Power Meter

GUPM-100 series is a USB optical Power Meter which will connect to laptop or smartphone with USB port to transmit live dB and dBm readings. This will be used for field engineers to measure the power in an optical signal.

The GUPM-100 has 850, 1300, 1310, 1490, 1550, 1610, & 1625nm operational wavelengths and can transmit live dB and dBm readings via USB 2.0.

With features like smartphone compatability and plug-and-play design it is a perfect tool that can be operated in singlemode and multimode fibers.

Product Specification
Specifications GUPM100-02 GUPM100-04
Wavelength Range 850nm to 1625nm
Calibrated Wavelengths 850, 1300, 1310, 1490, 1550, 1610, 1625
Measurement Range +6 to -70dBm +23 to -45dBm
Measurement Types dB (Insertion Loss) / dBm (Absolute Power)/Watts
Resolution Resolution
Absolute Accuracy +/- 0.25dB
Detector Type InGaAs Filtered InGaAs
Optical Interface Universal 2.5mm (Other adapters available)
Tone Identification 2kHz Incoming Signal - Audible Alert
Storage Storage within Greenlee Data Manage
Data Transfer USB 2.0
Dimensions 9.5cm x 1.9cm x 1.9cm
Weight 22.68g
  • 850, 1300, 1310, 1490, 1550, 1610, & 1625nm wavelengths
  • Transmit live dB and dBm readings via USB 2.0
  • Smartphone compatible (Android and iOS)
  • Set reference/zero functionality
  • Plug-and-play design
  • Accepts all connector styles
  • Single Mode and Multi-Mode testing
