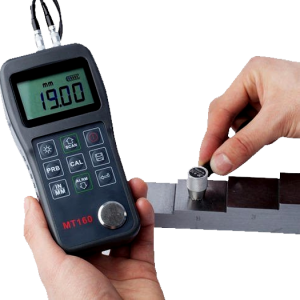

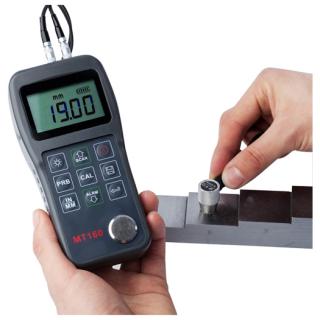

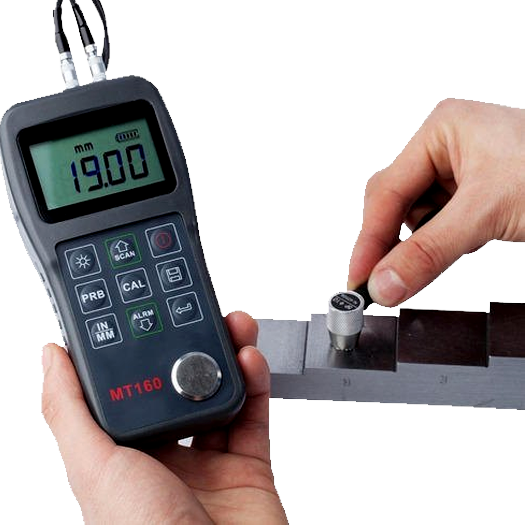

Digital Ultrasonic Material Thickness Gauge - 160

General purpose basic digital material thickness gauge capable of measurement of thickness of variety of metallic & non metallic material substrates such as metals, plastics, ceramics, composites, epoxies, glass etc.

Specifications
Product Specification
Measuring Range 0.75mm-300mm (in steel)
Sound Velocity Range 1000~9999 m/s
Resolution 0.01mm
Units mm/inch (selectable)
Memory 20 files (99 values / file)
Accuracy ± ( 0.5%Thickness+0.04 ) mm
Alarm Preset upper and lower limit
Interface port RS232 Communication Port
Voltage 2x1.5V batteries
Mode Single point and scan
Size 150 x 74 x 32mm
Weight 245g
Display LCD with backlight, 4.5 digits
Continuous working period 100 hours (with backlight off)

Option1 : For 0.1mm resolution, please select ST-MT150

Option2 : For 0.01mm resolution, please select ST-MT160
Features
Features
Two-Point Calibration function.
Single point mode and Scan mode.
Coupling status indicator.
RS232 port Output.
Battery Indicator.
Auto Sleep.
