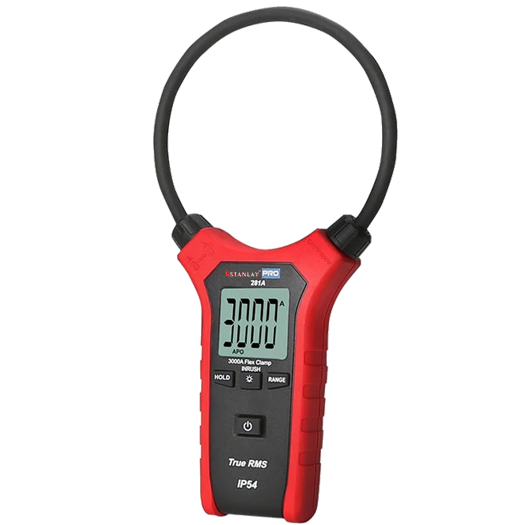

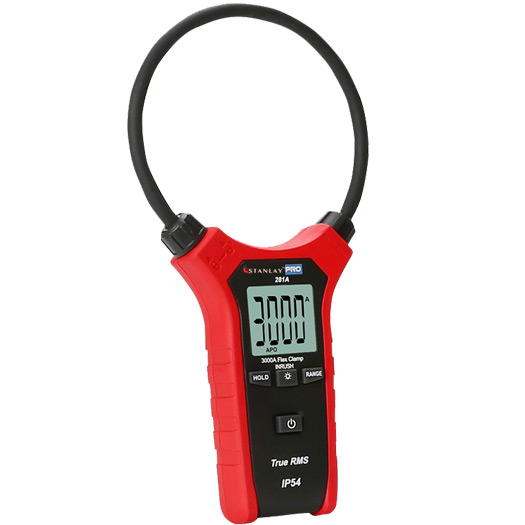

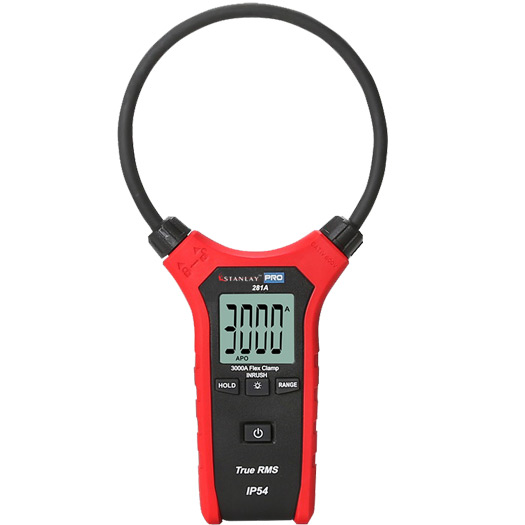

True RMS Flex Clamp 281A/C/E

281 series can measure large currents in various harsh and hard to reach environments. They are designed with Rogowski flex coil with large loop (options)allowing measurement on odd size conductors and can test up to 3000A AC current. 281A/C are professional clamp meters, which meet IP54 and 2m drop proof requirements. Due to the ease in operation, accurate readings, stable performance and reliable quality, these flex clamps are ideal tools for electricians

Specifications
Product Specification

Model Selection

Range

281A

281C

281E

True RMS

√

Display Count



3000

3000

6000 (3000 In Current

Measurement)

AC Current (A)

30A/300A/3000A

± (3%+5)

Resolution



0.01

0.1

1A

Frequency Response

45Hz~500Hz (Sine Wave)

√

Inrush Current

0.5A~3000A (For Reference)

√

AC Voltage (V)

600V

-

± (1.2%+3)

Resistance (Ω)

60MΩ

-

± (1.2%+3)

Frequency (Hz)

20Hz~30kHz

-

± (1%+2)

Other Features

Range Selection

-

Manual

Manual

Auto (Manual Range Available in Current Measurement)

Flex Coil Size (Dia)

-

11cms

17.5cms

17.5cms

Refresh Rate

-

3 times/s

Display Interface (LCD)

-

Single

Single

Dual

Data Hold/Buzzer

-

√

Auto Power Off

-

√

Low Battery Indication

-

√

Backlight/Function Selection

-

√

2m Drop Test

-

√

IP Rating

–

IP54

–

Category Safety Ratings

CAT IV 600V

General Characteristics

Power

AAA 1.5V Alkaline Batteries

Display

32mm x 34mm (1.8 Inches)

Product Net Weight

281A: 220g; | 281C: 236g; | 281E: 250g

Product Size

281A: 300mm x 150mm x 55mm;

281C: 350mm x 190mm x 55mm;

281E: 325mm x 180mm x 30mm

Standard Accessories

Batteries, PC Software CD (281A), Test Leads (281E)

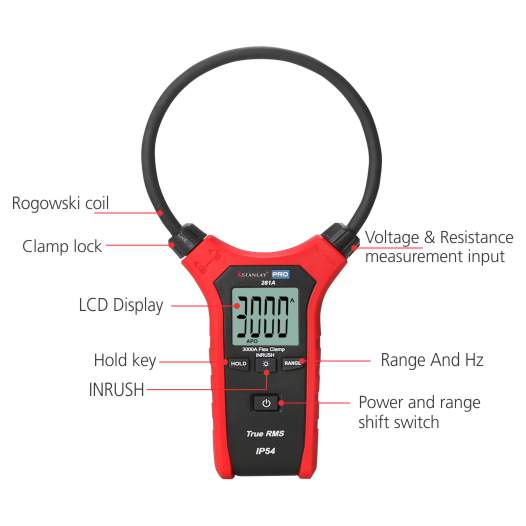

Features
Features
  • 2m drop proof, ETL/Intertek certified 3rd edition CE
  • Coil diameter: 0.75cm, bending length: 45.7cm
  • Large LCD display for clear reading
  • True RMS, Data hold, backlight, auto power off
  • Long press INRUSH key for 2s to measure inrush current
