GS8000 Subsurface GPR

Proceq Subsurface GPR GS8000

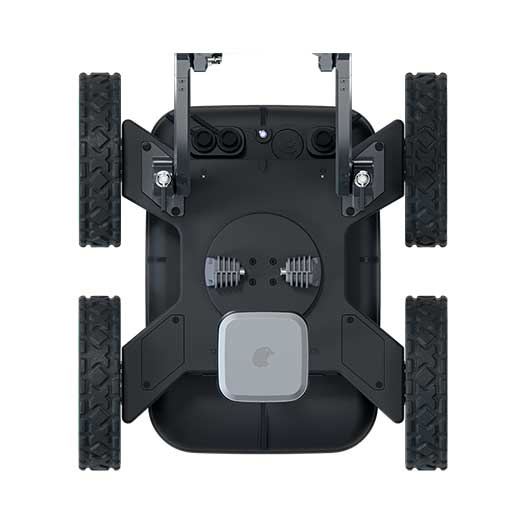

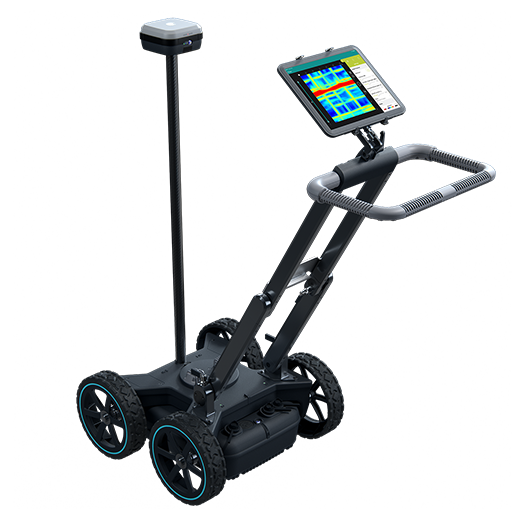

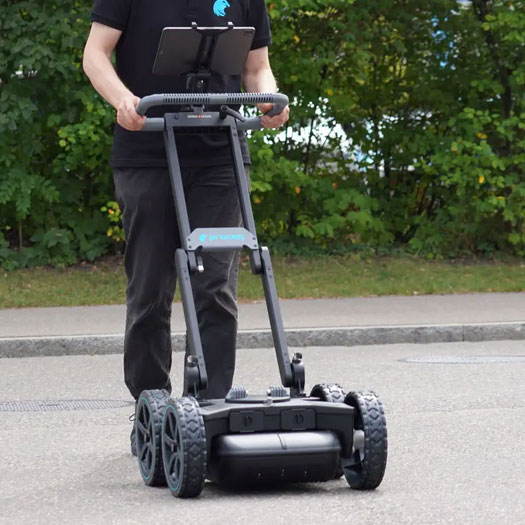

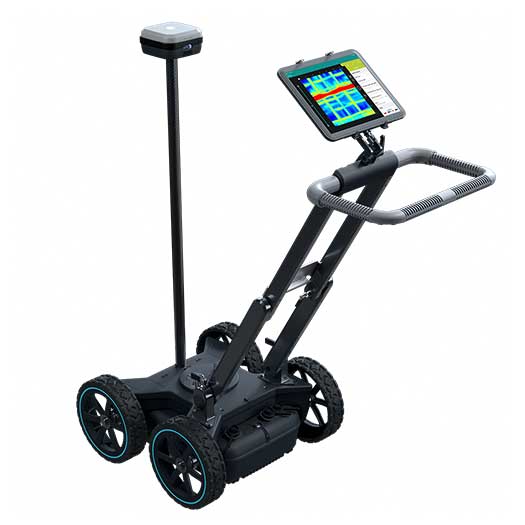

Proceq GS8000 is an all-in-one Sub-surface GPR for detecting objects and mapping the underground world using SFCW ground penetrating radar technology.

Due to effective modulated frequency range of 40 – 3440 MHz ² and ultra-wide band) & deeper depth penetration up to 10 meters, The GS8000 ground penetrating radar is an ideal solution for Utility strike prevention, Subsurface utility engineering (SUE), Underground 3D Reality Capture, Asset inspection & Geophysical investigations / Archaeology / Forensics / Precision Agriculture.

The GS8000 GPR allows underground utility scanning & provides 3D image of the surface detecting the object underground with minimum detectable object size of 1cm which makes it a preferred GPR for utility scanning.

The utility scanning GPR offers real time 2D & 3D data visualization of the scanned subsurface for an optimal interpretation on site

The Proceq GS8000 GPR offers cross polarization of data which allows to see both metallic target & non-metallic targets cleaner as per the requirement.

The subsurface scanning gpr has cloud storage for GPR measurements & post-processing of SEG-Y files exported data. Integrated with mobile App, The SFCW GPR makes data accessible from anywhere, anytime.

Features

Intuitive real-time visualization of subsurface utilities located in 2D and 3D
Superior data clarity, accurately geo-referenced
Access to your data from anywhere, anytime

Specification

Acquisition modes	Line Scan, Area Scan, Free Path
View modes	A-scan, Line Scan non-migrated, Line Scan migrated, Time Slice View, Map View, 3D, Augmented Reality
On-site annotations	Tags, markers, points of interest, lines, photos, notes, voice notes, markups
Adjustable display settings	Color palette, linear gain, time gain compensation, background removal, multi-layer dielectric constant, time window, noise cancellation filter, frequency filter, low pass filter, slice depth, slice thickness
Data options	Cloud storage, SEG-Y export, HTML export, KML export, DXF export, SHP export
Display Unit Specs*:	Any iPad® or iPad Pro® Recommended: iPad Pro WiFi+Cellular (M1) Screen resolution: up to 2732 x 2048 pixels Storage capacity: up to 1 TB
Max. scan length	Up to 15 Km
Max. scan grid size	Up to 80 x 80 m \| 260 x 260 ft
Radar technology	Stepped-frequency Continuous-Wave GPR
Modulated frequency range	40 – 3440 MHz
Effective bandwidth	3200 MHz
Min. detectable target size	1 cm \| 0.4 in
Max. depth penetration	10 m \| 33 ft
Scan rate	500 Hz
Spatial interval	Up to 100 scans/m
Acquisition speed	Up to 80 Km/h \| 50 mph

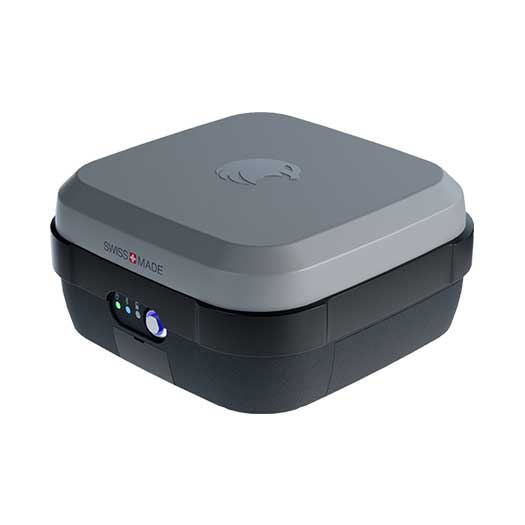

GNSS receiver	Multiband GPS + Glonass + Galileo + Beidou SSR augmentation ⁷ / RTK-compatible Dimensions: 145 x 145 x 70 mm Weight: 0.7 Kg, 4x AA-batteries included
GNSS real-time 3D accuracy	Typ. 1 - 5 cm \| 0.5 - 2 in
GNSS initialization time	Typ. 5 - 30 s
Wheel encoders	2

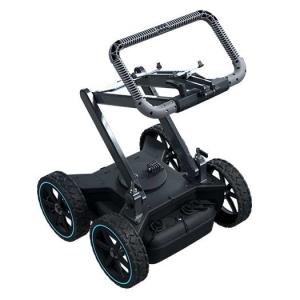

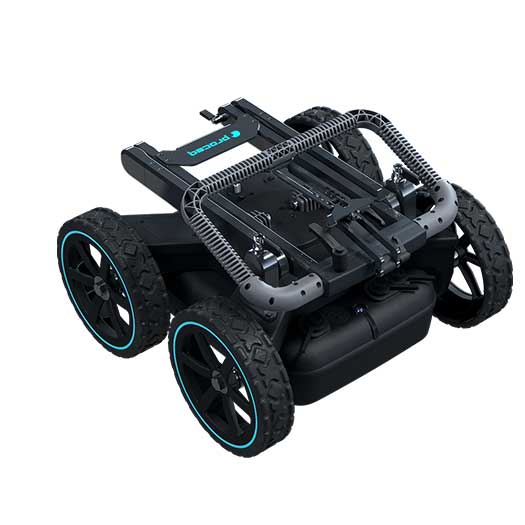

Configuration	Wireless integrated push & pull cart
Weight	24 Kg
Dimensions	61 x 57 x 38 cm
Antenna positions	Ground-coupled with dual-axis floating Air-coupled with 25 mm clearance
Ingress protection (IP) / sealing	IP65 (for equipment)

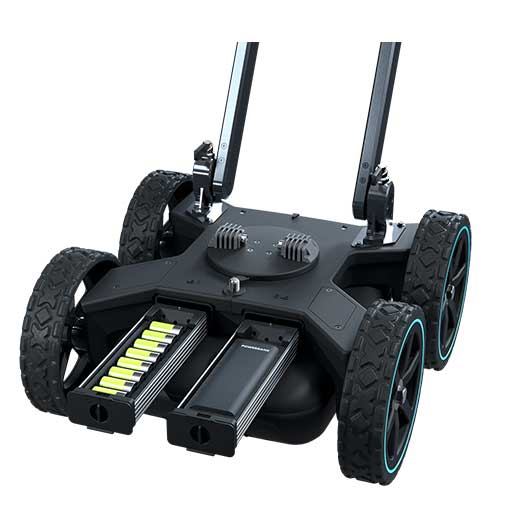

Power supply	Removable flight-safe battery pack \| Off-the-shelf power bank
Autonomy	3.5 hours \| Full working day
Operating temperature	-10° to 50°C \| 14° to 122° F
Operating humidity	<95% RH, non-condensing
Connectivity	WiFi, Ethernet, USB-A, USB-B, USB-C, Lemo

FAQ

Do you have a question which we can answer for you? Click here if Yes

What is the Penetration Depth of GS8000 GPR?

GS8000 has very high penetration depth upto 10 m | 33 ft ⁵. Depending on soil conditions.
What is the minimum detectable object size for GS8000?

Minimum detectable object size is upto 1 cm.
What is the bandwidth of the equipment?

The GS8000 has ultrawide bandwidth 3200 MHz ³.
What is the maximum Scan Length GS8000 offers?

The Equipment offers maximum scan length up to 15 KM in one scan. Thereafter the second scan starts of next stretch of 15 kms.
What is Stepped Frequency Continuous Wave?

Stepped frequency continuous wave (SFCW) has the advantage to broadcast an ultra wide-band range of modulated frequencies than Pulsed-GPR broadcasting a signal which allow detection of object at deeper depth.
What is the output data format for GS8000 GPR?

GPR exports data in the SEG-Y format. This can be easily converted to other formats like .xls, .dxf or .kml if needed for further visualization of data
Do I need to calibrate my GS8000?

GS8800 Sub-surface GPR self-calibrates each time you turn it on. There is no need to send your unit back to a repair/calibration center
Can I connect GPS with my GS8000?

Yes. GS8000 comes with a standard GNSS receiver that syncs with GPR data automatically. No external data loggers or third party location systems required
What is the difference between 2D and 3D GPR data?

2D Data are collected over single lines and give a B-scan or radargram of the specific profile the radar has covered whereas 3D data are collected over an area (e.g., using a grid of specific dimensions) and result in a data cube with two-directional axis (x and y) and one depth axis (z)
