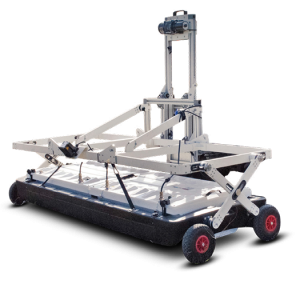

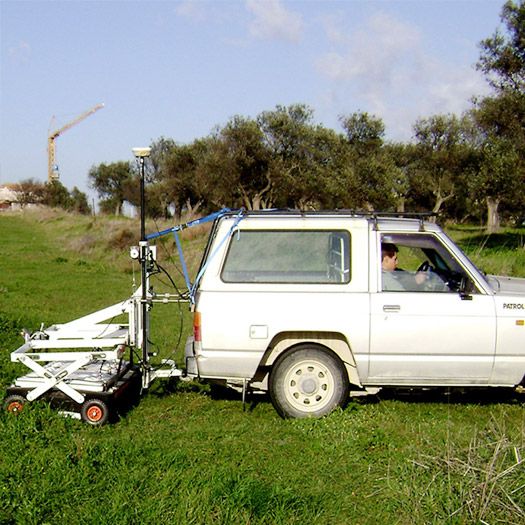

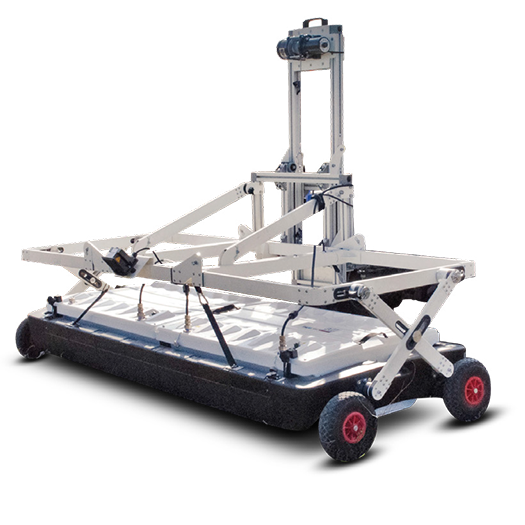

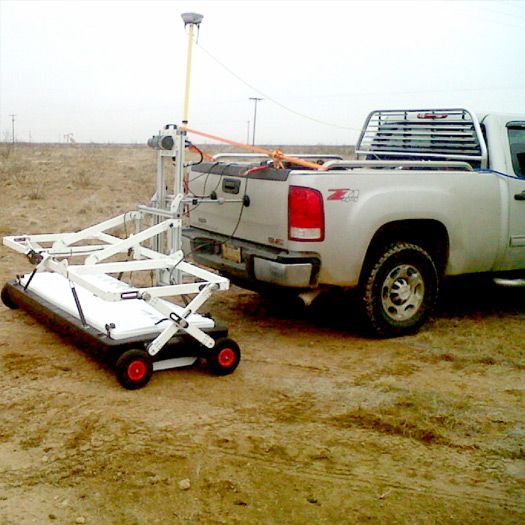

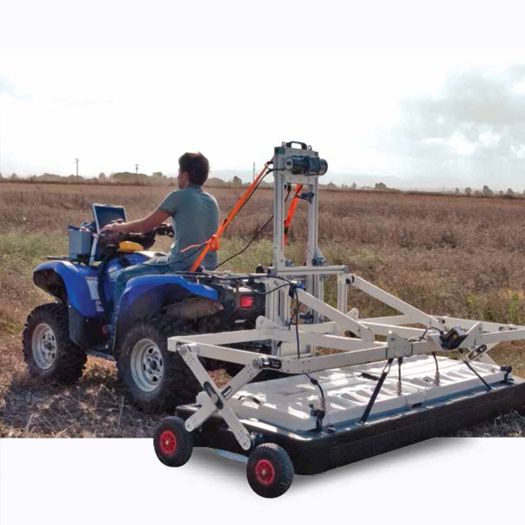

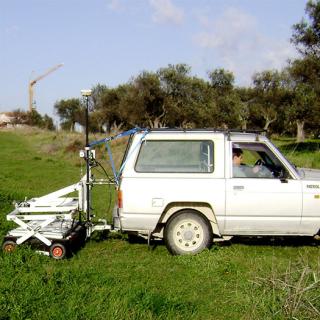

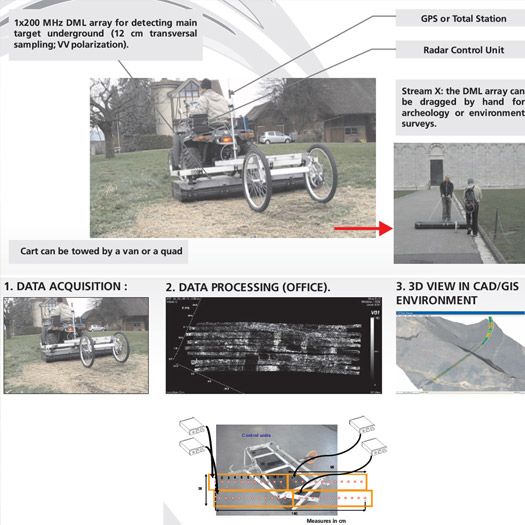

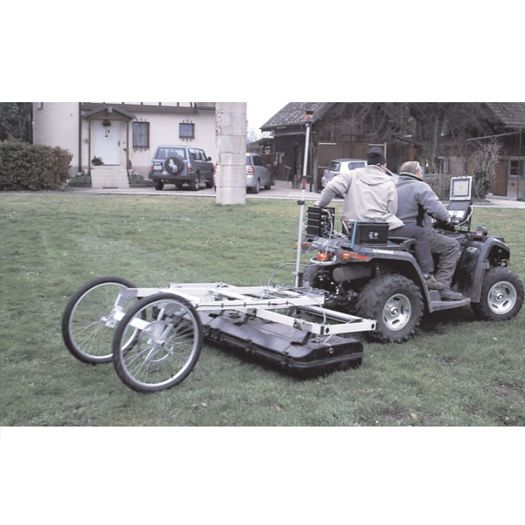

Stream X is the IDS vehicle-towed Ground Penetrating Radar solution, introducing a new concept for extensive 3D mapping of buried structures and geologic features. The Stream X array covers a 2m wide swath with a single pass, and  to achieve complete coverage of the survey area, multiple passes can be controlled through sophisticated positioning systems and a dedicated navigation software. Once the desired area is covered the survey can be easily checked and then post process with a dedicated IDS software platform.


Stream X

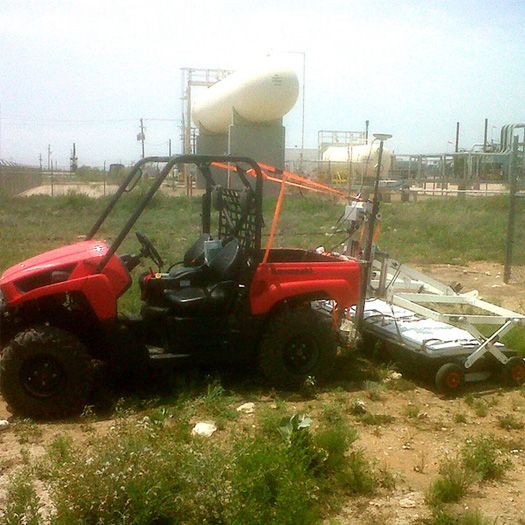

is the ideal solution for mapping of extensive archaeological sites, detection of underground structures, cavity identification and mapping, underground tank detection, area clearance prior to construction and unexploded ordnance (Uxo) detection.


All the Stream X configuration are FCC certified and able to operate in the United States.

Parameters N°1 DML (200 MHz) N°1 DML (600 MHz) N°2 DML (600 MHz)
Radar Control Unit (DAD Mch) 1 2 4 STREAM-X
Number of antenna box 2 2 8
Number of antenna dipoles (TX+RX) 8+8 12+12 24+24
Scan width (cm) 172 172 172
Polarization VV VV VV
Data spacing in transversal direction (cm) 12 8 4
Antenna Weight (Kg) 40 36 40
Antenna CART dimension (m) Length: 2.02 Width: 2.10
CART Weight (Kg)   50
Typical Data collection speed Km/h   15
Item Code STREAM-X



Processing Software GRED HD3 including:
Automatic and Manual Data Processing
Propagation Velocity Estimation (hyperbola fitting)
2D/3D Representation
Data Fusion for different frequency
Interactive 2D Data Inspector
GPS Location
Irregular volume representation
B-scan view C-scan view
Insert targets function
Output Data Automatic data transfer into CAD maps

STREAM-X is supplied with K2 Stream FastWave, Snailnav navigation software and the GRED HD3 software suite.

K2 Stream FastWave


This software is able to acquire, and display in real time, data coming from more than 48 IDS antennas. It integrates all the functions of the K2 FastWave acquisition software but can handle more inputs. This software is supplied with the control unit.

Snailnav Navigation Software

The Snailnav navigation software used for GPS real time positioning is able to project GPS trajectories in real time, helping the operator to collect data with great accuracy without leaving any black spots and to avoid time wasted going over the same area more than once.


Gred HD3












Gred HD3
is specifically designed to offer an integrated framework for CAD and GIS, combining the characteristics of industrial productivity with high levels of reliability. It also offers unique features such as the creation and display of 2D and 3D tomograms in just a few minutes after the basic filtering of the raw data and the direct export of structures and objects of any generic shape to CAD or GIS maps.

The software is fully compatible with any GPS or positioning data in order to obtain automatically geo-referenced data plots.

Key features include

  • Real-time display of trajectories using GPS or Total Station.
  • 2D and 3D tomography for an immediate visualization and detection of anomalies.
  • Automated transfer to CAD/GIS:the identified target can be automatically transferred to CAD or GIS maps for professional SUE / utility mapping.
  • Geolocated data information and visualization


Stream X can be optionally equipped with the GPR-Slice software platform

 Product Info Downloads
 Product Video & Training
 Related Article
Mapping of Underground Utilities
detector-duo-1.largeAs built maps of utilities are made in reference to specific points, which become null and void as the civic layout changes. Most times, such maps do ...
When is a ground penetrating radar beneficial in locating of underground pipes & cable utilities ?
Pipe & Cable LocatorsThe task of Locating underground utilities can be bifurcated into two deliverables : 1.Detection of underground utilities 2.Mapping of underground utilities If we take a ...
