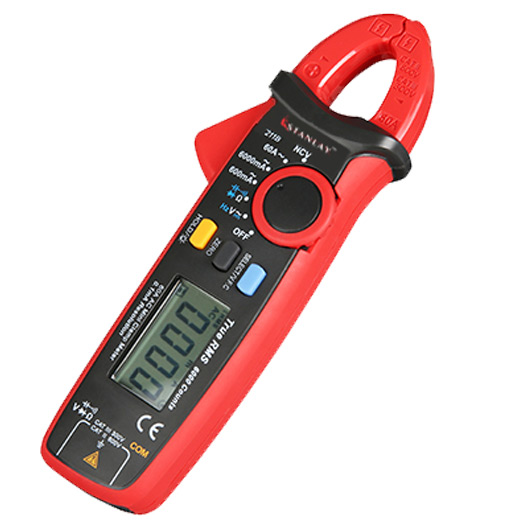

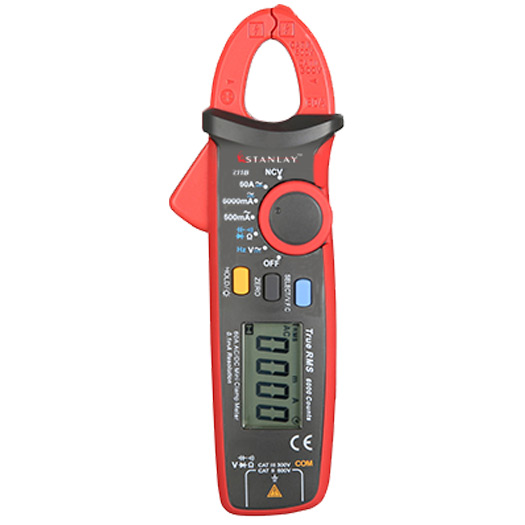

ST211B Digital Clamp Meter
SCM222 clamp meter
SCM222 clamp meter
SCM222 clamp meter SCM222 clamp meter ST211B Digital Clamp Meter SCM222 clamp meter SCM222 clamp meter

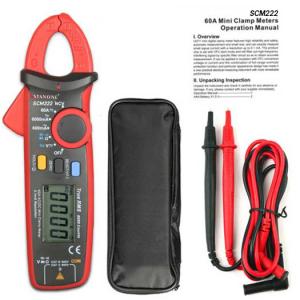

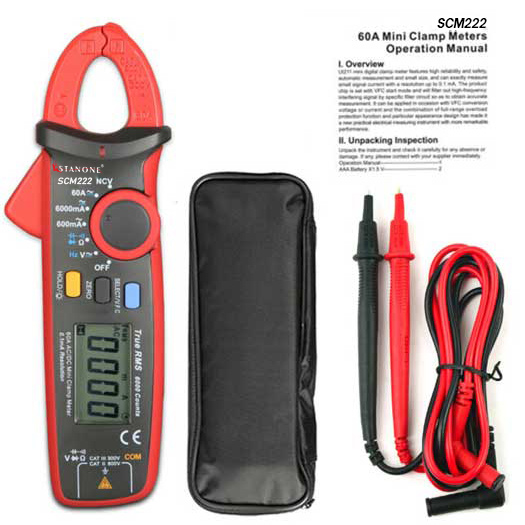

STANONE SCM222 60A High Precision Clamp Meter

SCM222 mid-range 60A is a high precision tool designed with the resolution of 0.1mA. SCM222 is perfect for anyone requiring high precision and accurate results when working with electronics, such as troubleshooting solar power systems current load, electrical cars, etc.

It is ergonomically designed and lightweight, making it a convenient tool for working in tight spaces.

Request Quote
STANONE SCM222 60A High Precision Clamp Meter
Features Specifications FAQ Downloads



Features
  • Max AC current resolution: 0.1mA, LCD backlight
  • Max DC current resolution: 1mA, 17mm jaw
  • AC current accuracy: ± (1.5%+10)
  • 6000 display count, low battery indication
  • VFC, low pass filter, NCV testing, Auto range
  • Zero mode, Data hold, True RMS, Auto power off
Specifications

Auto Range

√

True RMS

√

Display Count

6000

Measurements

Range

Accuracy

AC Current (A)

60A (0.1mA Resolution)

± (1.5%+10)

DC Current (A)

60A

± (2%+3)

AC Voltage (V)

600V

± (0.8%+3)

DC Voltage (V)

600V

± (0.7%+3)

Resistance (Ω)

60MΩ

± (0.8%+2)

Capacitance (F)

62mF

± (4%+5)

Other Features

Diode Test

√

Continuity Buzzer

√

V.F.C.

√

NCV

√

Data Hold

√

Zero Mode

√

LCD Backlight

√

Auto Power Off

√

Low Battery Indication

√

Input Protection

√

Input Impedance for DCV (≥10mΩ)

√

Category Safety Ratings

CAT III 300V, CAT II 600V

General Characteristics



Power

1.5V Battery (R03) x 2

Display

39.3mm x 26.5mm

Product Net Weight

170g

Product Size

175mm x 60mm x 33.5mm

Standard Accessories

Batteries, Test Leads
FAQ

What is the STANONE SCM222 60A High Precision Clamp Meter used for?

The STANONE SCM222 is designed for high-precision low-current measurement applications such as electronics testing, control circuits, HVAC systems, EV diagnostics, solar systems, and industrial maintenance.

What is the maximum current measurement capability of SCM222?

The SCM222 supports current measurement up to 60A, making it ideal for precision low-current electrical testing and diagnostics.

Why is a 60A precision clamp meter important?

Unlike high-current clamp meters, the SCM222 is optimized for measuring low current with higher accuracy and resolution, making it suitable for sensitive electrical systems.

Does the SCM222 support AC and DC current measurement?

Yes, the SCM222 supports both AC and DC current measurements for versatile electrical testing applications.

Is the SCM222 a True RMS clamp meter?

Yes, the SCM222 features True RMS technology for accurate readings on distorted and non-linear waveforms.

Why is True RMS important in precision current measurement?

True RMS ensures accurate readings in modern electrical systems such as VFDs, inverter systems, UPS systems, EV charging systems, and industrial automation.

What is the advantage of high precision current measurement in SCM222?

High precision allows accurate measurement of small current variations, leakage currents, control circuits, and sensitive electrical loads.

What jaw opening size does the SCM222 provide?

The SCM222 features a compact clamp jaw of 17mm jaw designed for precision measurement in confined electrical spaces and smaller conductors.

Why is the compact clamp design beneficial?

The compact jaw improves accessibility inside control panels, automation systems, PCB testing areas, and crowded electrical cabinets.

Does the SCM222 support NCV (Non-Contact Voltage) detection?

Yes, the SCM222 includes NCV functionality for detecting live voltage without direct contact with conductors.

How does NCV improve user safety?

NCV allows technicians to identify energized circuits quickly while reducing the risk of accidental electrical contact.

What display type is used in the SCM222?

The SCM222 features a high-resolution digital LCD display with backlight for improved readability and precise measurement viewing.

Does the SCM222 include a backlit display?

Yes, the backlit LCD display improves visibility in low-light electrical panels and industrial maintenance environments.

What is the display count of SCM222?

The SCM222 typically provides a high-count digital display for enhanced resolution and precision measurements.

Does the SCM222 support auto ranging?

Yes, auto-ranging functionality automatically selects the optimal measurement range for faster and more accurate testing.

What is the benefit of auto ranging in SCM222?

Auto ranging improves efficiency by reducing manual range selection and minimizing measurement errors.

Does the SCM222 include Data Hold functionality?

Yes, the Data Hold feature allows users to freeze measurement values on the display for easier analysis and recording.

Can the SCM222 measure AC/DC voltage?

Yes, the SCM222 supports both AC and DC voltage measurement for comprehensive electrical diagnostics.

Does the SCM222 support resistance and continuity testing?

Yes, the meter includes resistance measurement and audible continuity testing functions.

Can the SCM222 measure capacitance and frequency?

Yes, capacitance and frequency measurement functions are included for advanced troubleshooting and diagnostics.

Is the SCM222 suitable for electronic circuit testing?

Yes, high precision low-current measurement makes it suitable for electronics, PCB diagnostics, control systems, and instrumentation applications.

Can the SCM222 be used for EV and solar applications?

Yes, DC current measurement capability makes it suitable for EV systems, battery testing, solar PV systems, and DC electrical circuits.

What are the key technical advantages of SCM222?

Key advantages include 60A high precision current measurement, True RMS accuracy, AC/DC capability, compact clamp design, NCV detection, backlit LCD display, auto ranging, and industrial-grade reliability.

Can the SCM222 be used in confined electrical panels?

Yes, the compact clamp structure allows easy measurements inside crowded control cabinets and electrical systems.
