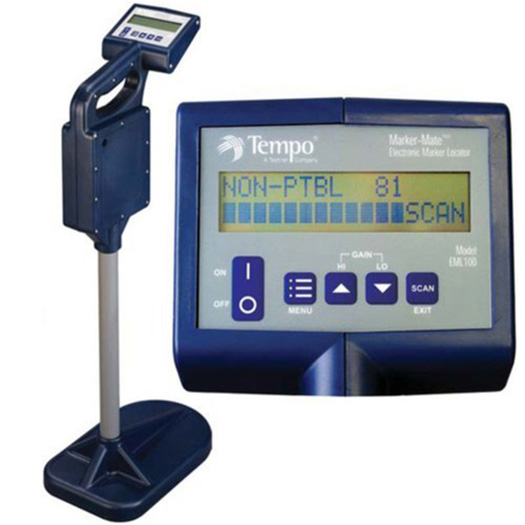

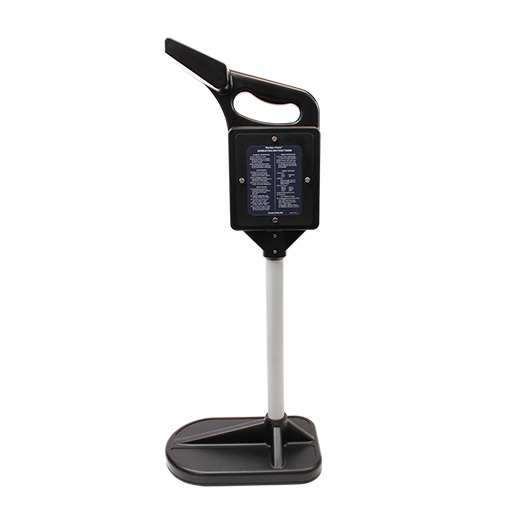

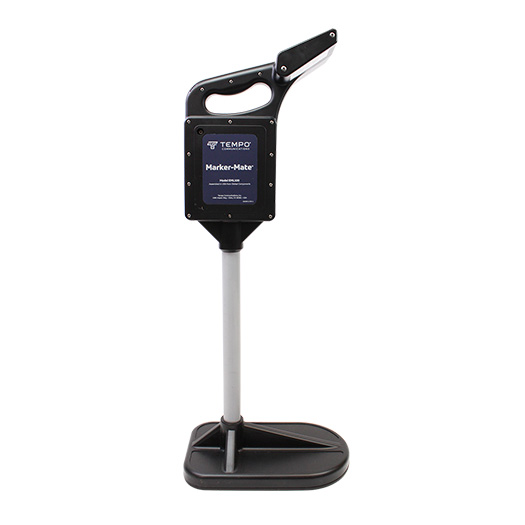

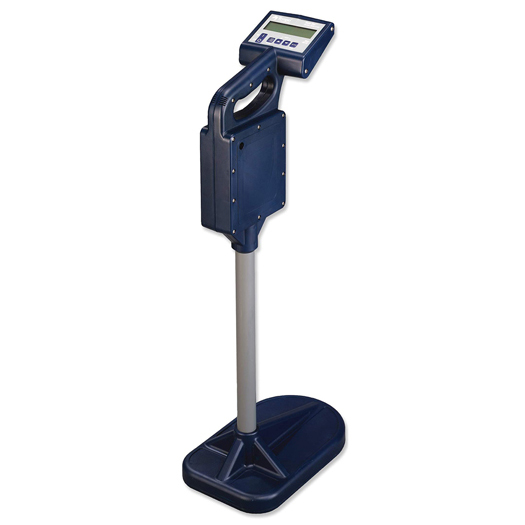

Markermate Locator

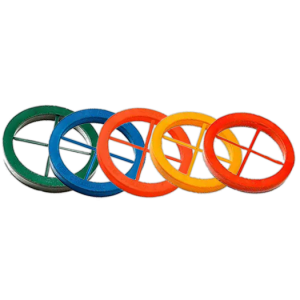

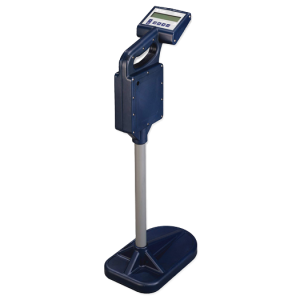

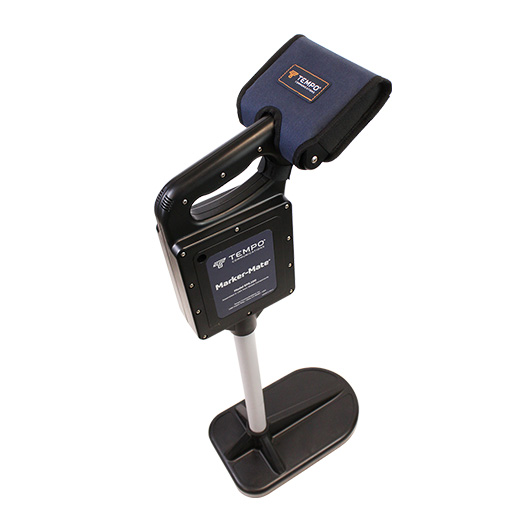

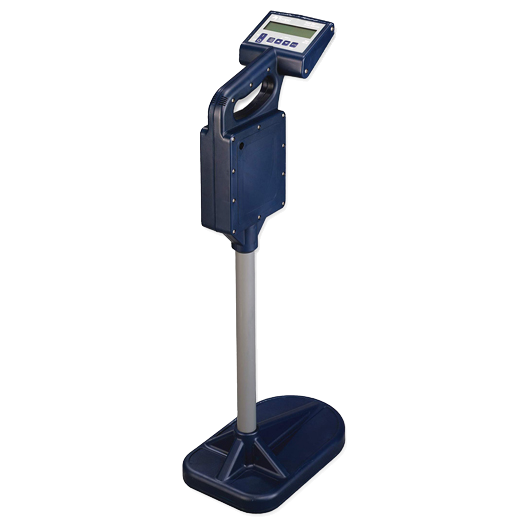

Marker Mate: Marker-Mate is designed to locate buried electronic markers, including the patented Greenlee Tempo Omni Marker and Uni Marker. In fact, Marker-Mate sets an industry standard with the capability of detecting seven electronic marker types simultaneously (power, water, sanitary, telephone, gas, cable TV, non-potable water).

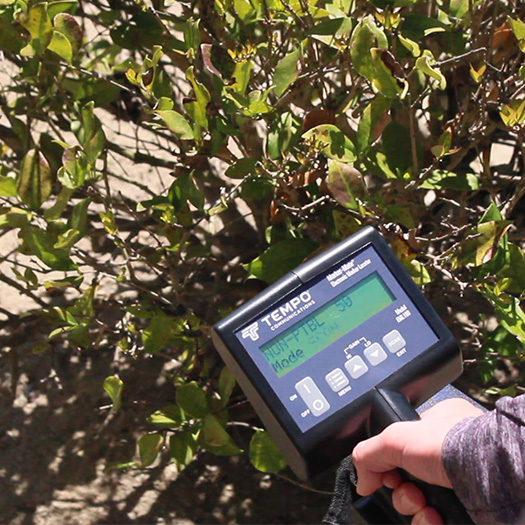

Marker-Mate is user-selectable for any of the marker types, or the Scan mode will locate all marker types simultaneously and automatically determine which type is detected. Marker-Mate scan mode and its pinpoint accuracy reduces time spent locating buried utilities marked by Omni Markers, and Uni Markers.

The MarkerMate advanced pinpoint feature allows the user to adjust its detection threshold, making it possible to narrow the detection area to a precise location. Utilizing digital signal processor technology, the Marker-Mate is the most sophisticated and highest performing locator available? At the same time, the Marker-Mate was built to operate in all weather conditions. Tempo's Marker-Mate, Omni Marker, and Uni Marker is a complete electronic marker solution.

Specifications
Product Specification
Markermate Specifications
RElectrical  Twelve AA batteries
Battery Life  20 hours typical
Environment
Operating Temperature -4°F to 122°F (-20°C to 50°C)
Storage Temperature  -40°F to 158°F (-40°C to 70°C)
Weather Resistant
Physical
Width  7.8 in.
Height  12.8 in.
Weight  4.5 lbs. with batteries
Note: All Specifications are preliminary and subject to change
Features
Features

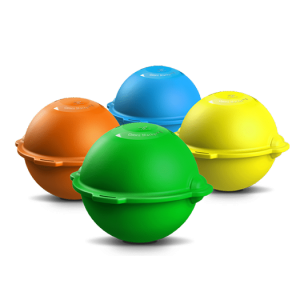

Markermate Electronic Markers Omni Marker
Five+ foot depth range Buried splices and load coils.
Detects up to seven different marker types Buried service drops.
Scan mode provides simultaneous detection
of all marker types
Pipe ends.
User-adjustable Detection Threshold Conduit stubs.
Digital signal processor accuracy Road crossings.

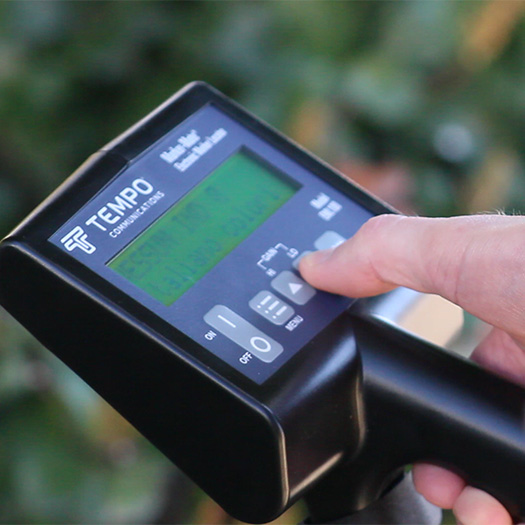

Large-character display is easy to read Cable paths.
Bar graph, numeric & audible signal
strength indicators
Fiber optic facilities.
Speaker volume adjust Manholes under pavement or
grade changes.
Headphone jack Snow-covered installations.
Battery level indicator Military caches.
Low battery warning Survey points.
Adjustable time out feature prolongs
battery life (and can be turned off)
Septic installations.
Weather resistant Repair points.
Rugged construction Non-metallic lines.
