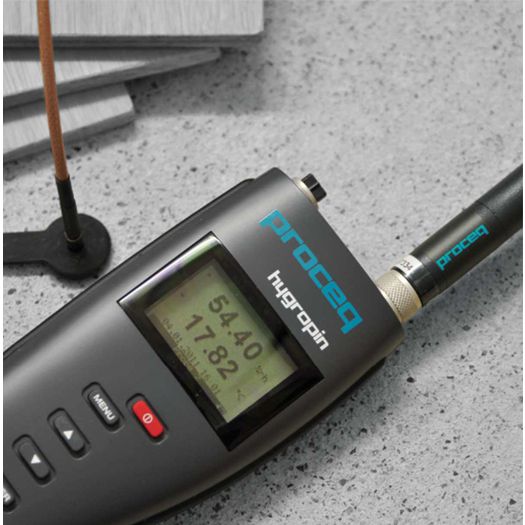

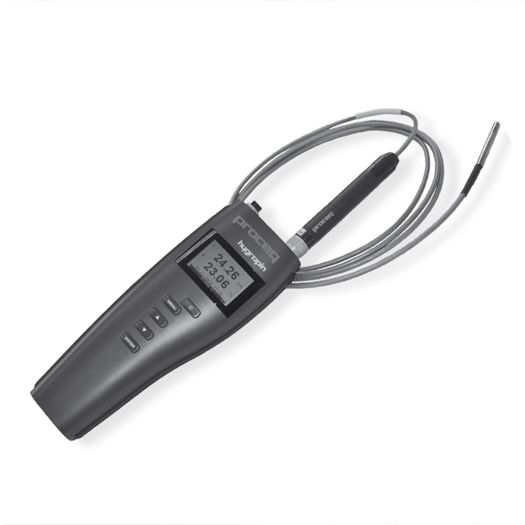

Proceq Hygropin Concrete Moisture Meter

Concrete Moisture Testing Equipment

Stanlay concrete moisture meter is a perfect solution to identify and monitor moisture in concrete. Due to the small, fast sensor of the Hygropin, diagnosing moisture according to ASTM F2170 is quicker and easier than ever before.

Identifying the Presence of Moisture: Excess moisture in concrete can be fatal to a floor covering installation. To prevent mildew and major damage, the flooring industry requires smart testing solutions to check surfaces for moisture prior to installing floor coverings or coatings. The in-situ technique has proven to be the most reliable method since it measures directly where the moisture hides: below the surface of the concrete.

Application: The relative humidity test outlined by ASTM F2170 requires placing a measuring sleeve at a specific, well defined depth in the concrete. This can be done either by drilling a hole or by pre-installing cast holes in fresh concrete.

Proceq Hygropin Concrete Moisture meter offers the best solution for both procedures. The Hygropin provides the smallest available sensor on the market, minimizing damage to the surface and reducing the installation efforts immensely. Due to the small air volume of the test sleeve, the humidity equilibrium process is extremely fast.

Proceq Hygropin Concrete Moisture Meter Benefits to the Customer:

Comfortable: Two independent sensor channels can measure ambient and concrete characteristics simultaneously.
Wide Measuring Range: Measures relative humidity, temperature, dew/frost point, etc. 0…100 % RH / -40…+85 °C (-40…185 °F).
Accuracy: The Hygropin combines the highest measurement accuracy with a fast response time
Minimal Invasive: Highly integrated sensor with only 5 mm / 0.3" diameter for minimal efforts on site Durability: Stainless steel housing of the sensor for long lasting performance in rough environments Data Logging / Storage: The Hygropin can record data over a period of time for traceable information.

Contact us for best quality concrete moisture meter price in India


Product Specification
Display Unit of the Moisture Meter
Battery    9 V alkaline or accumulator
Mains Via USB
Probe input Two separate inputs
Real time Clock Yes
Psychrometric Calculations Yes
Interface type USB
Memory    Max.10’000 readings
Logging interval 5 s to 1 h
Display    Pixel graphic LCD, backlighted
Display modes % RH and temperature, date and time
  % RH, temperature, calculated parameter
Dimension 270 x 70 x 30 mm
  (10.63 x 2.76 x 1.17”)
IP classification IP 40
In-situ probe of the Moisture Meter
Measuring range 0 to 100% RH
  - 40 °C to 85 °C (-40 °F to 185 °F)
Accuracy ± 1.5 % RH / ± 0.3 K
Dimension Ø 5 mm (Ø 0.2”)
Cable length 200 cm (79”)
  • Depending on the settings this moisture meter is able to display relative humidity, temperature and calculated psychrometric parameters.
  • Fast measuring time
  • Highly integrated sensor with only 5 mm / 0.3” diameter
  • Moisture meter shows trend indicators for each parameter
  • The two independent sensors channels of the moisture meter can measure ambient and concrete characteristics simultaneously.
