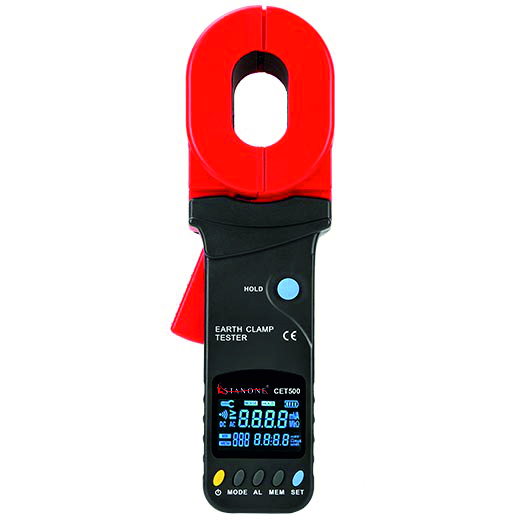

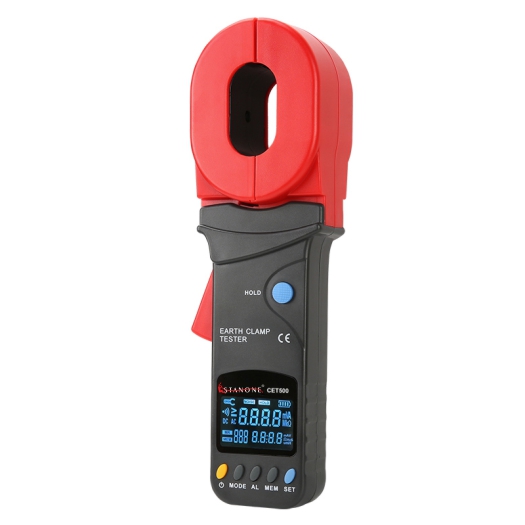

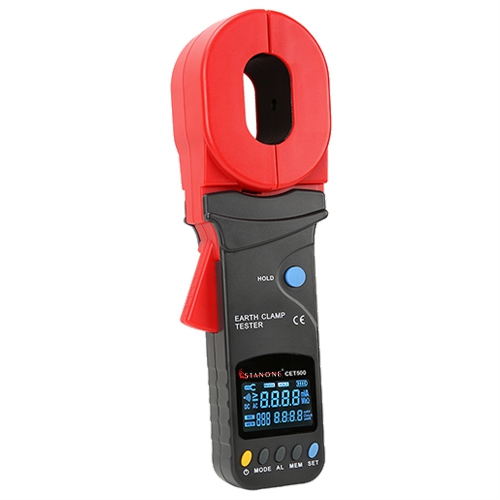

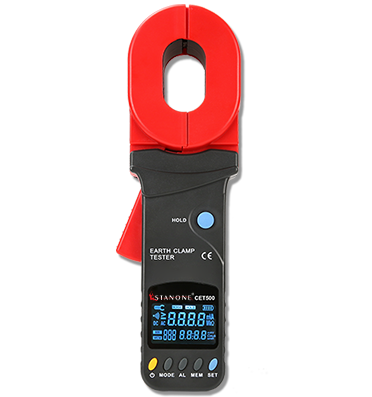

CET 500 Digital Clamp Earth Resistance Tester

CET500 Clamp Earth Ground Tester based on the rogowski coil principle provides a quick & safe method for measuring earth ground resistance without disconnecting circuit earthing / ground lines or without stakes & wires. Simply clamp the meter around the earthing strip wire and measure within range of 0.01 to 1200 ohms.

The double insulation design ensures instrument durability for outdoor work and effectiveness in blocking interference signals from the environment.

The CET500 stake-less earth resistance tester provides additional feature of measuring leakage current upto 30A.

The CET500 digital clamp on earth tester features a built in EBTN display to allow use in dark environments.

The Jaw size of 65X32 mm has been designed to easily accommodate earth strips. A test ring is provided to allow test & confirm instrument status before actual operation to ensure accurate results.

The CET500 is ideal for use in power plants & substations, Telecommunication installations, checking building lighting protection & grounding in industrial installations.

The CET500 clamp on earth resistance tester comes in an ergonomic carry case which includes 4 X 1.5 V batteries, 1 calibration test ring & user manual.

Specifications
Product Specification
Model Selection Range CET500
Auto Range
Display Count 4 Digits LCD Display
Jaw Size 32mm
Earth Ground Resistance (Ω) 0.01~0.099Ω ±(1%+0.01)
0.1~0.99Ω ±(1%+0.01)
1~49.9Ω ±(1%+0.1)
50~99.5Ω ±(2%+0.5)
100~199Ω ±(3%+1)
200~395Ω ±(6%+5)
400~590Ω ±(10%+10)
600~800Ω ±(20%+20)
600~1000Ω -
800~1200Ω ±(25%+30)
Leakage Current (A) 0mA~9mA ±(2.5%+1mA)
10mA~99mA ±(2.5%+5mA)
100mA~299mA ±(2.5%+10mA)
0mA~299mA -
0.3A~2.99A ±(2.5%+0.1A)
3A~9.9A ±(2.5%+0.3A)
10A~20A ±(2.5%+0.5A)
3A~30A ±(2.5%+0.5A)
Resistance Measurement Frequency >1kHz
Single Measurement Time 1 Second
Current Limit Alarm 1mA~499mA
Current Measurement Frequency 50Hz/60Hz
Auto Power Off -
RS-232
Visual and Audible Alarm
Jamming Signal Recognition
Over-Range Display
Data Storage 300 Data Sets
Category Safety Ratings CAT III 300V
General Characteristics
Power 1.5V Battery (Lr6) x 4
Display EBTN Display
Product Net Weight 1160g
Product Size 285mm x 85mm x 56mm
Standard Accessories Batteries, Test Ring, Toolbox
Features
Features
  • Resistance limit alarm
  • Auto range
  • Low battery indication


FAQ
FAQ
Frequently Asked Questions (5 answered questions)
Yes, It measures Leakage Current Up to 30 A.

Person name: Asian

Yes, It stores upto 300 data sets.

Person name: Asian

65X32mm

Person name: Asian

Safety Category ratings is CAT III 300V

Person name: Asian

Yes, it is an ideal solution for the same

Person name: Asian
