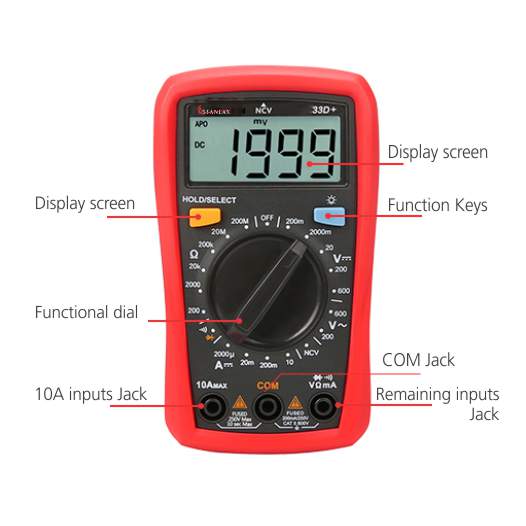

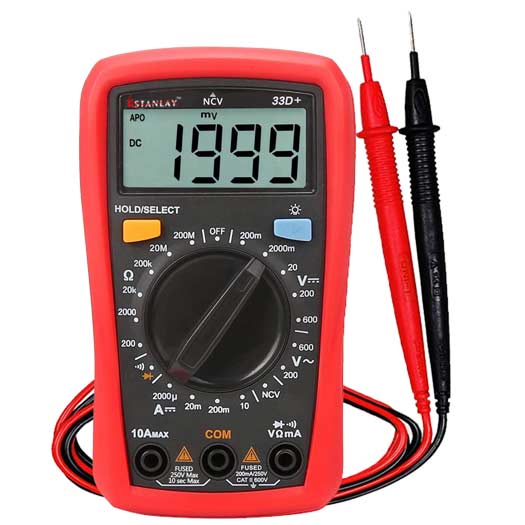

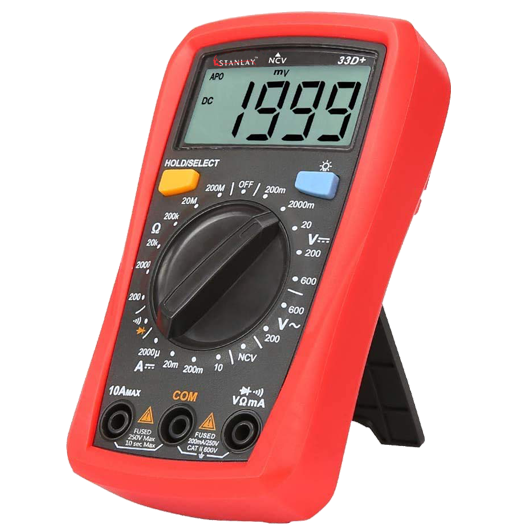

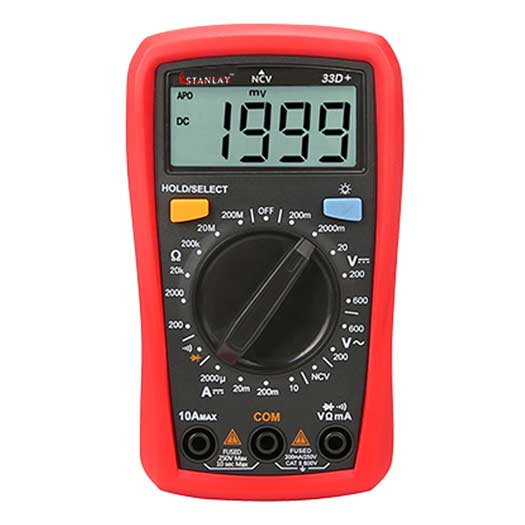

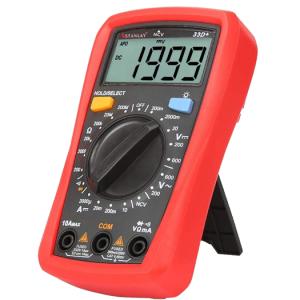

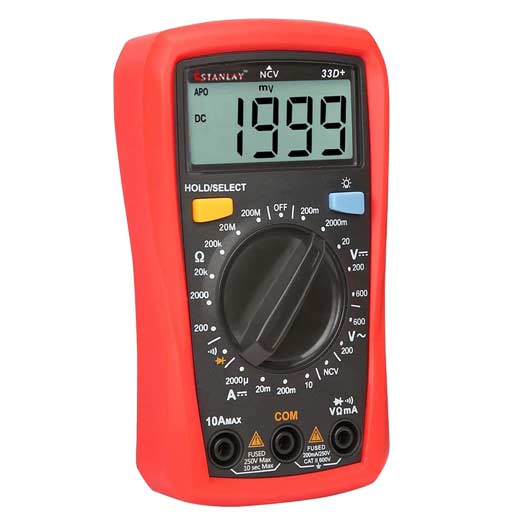

33 D+ Palm Size Digital Multimeter

The new generation 33+ Palm Size Multimeter series redefines the performance standards for entry-level digital multimeters. The 33+ multimeters can withstand 2 meters drop. 33D+ provides manual ranging AC/DC voltage & DC current with NCV feature non-contact voltage (NCV) test.

 The 33D+ Palm Size multimeter safety standard has also been enhanced to ensure that users can work safely in CAT ll 600V environment . It can be used for testing batteries, household wiring, electric motors, and power supplies. The 33 D+ is a pocket multimeter designed to last.

Specifications
Product Specification

Model Selection

33D+

Range Selection

Manual

Display Count

2000

Measurements

DC Voltage (V)

200mV/2V/20V/200V/600V

Accuracy

±(0.5%+2)

AC Voltage(V)

200V/600V

Accuracy

± (1.2%+3)

DC Current (A)

2000µA/20mA/200mA/10A

Accuracy

±(1%+2)

AC Current (A)

-

Resistance (Ω)

200/2K/20K/200K/20M/200M

Accuracy

±(0.8%+2)

Capacitance (in F)

-

Accuracy

-

Diode Test / Continuity

Display

Auto Power Off

Auto Backlight Off

Other Features

Buzzer

Drop Test

2m

Test Probe Holder

NCV

Category Safety Ratings

EN 61010-1, EN 61010-2-030 : 2010, EN 61236 : 2013 , CAT II 600V

General Characteristics

Weight

206g

Size

134mm x 77 mm x 47mm

Power

1.5V Battery (AAA) x 2

Display

66mm x 51 mm

Standard Accessories

Batteries, Test Leads

Features
Features
  • Clear LCD display

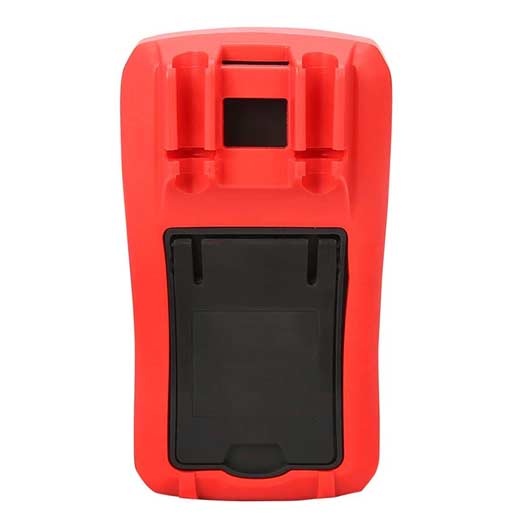

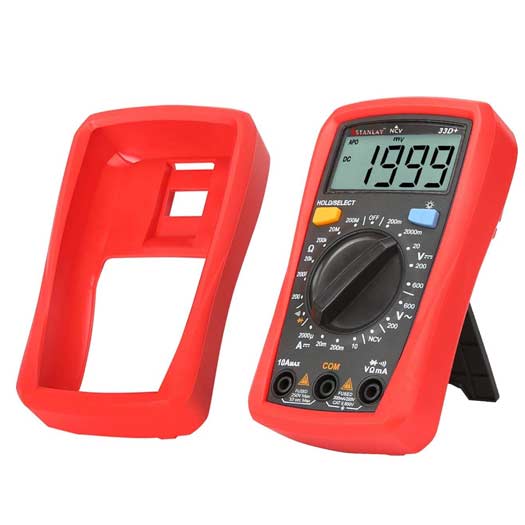

  • Comfortable protective cover, with test lead hanging groove
  • 2 meters drop test, precision protection
  • Loud buzzer sound; Ergonomic design.



FAQ
FAQ
Frequently Asked Questions (4 answered questions)
Yes

Person name: Asian

Manual Range selection

Person name: Asian

CAT II 600V

Person name: Asian

Yes, Equipment is qualified in 2-meter drop test.

Person name: Asian
