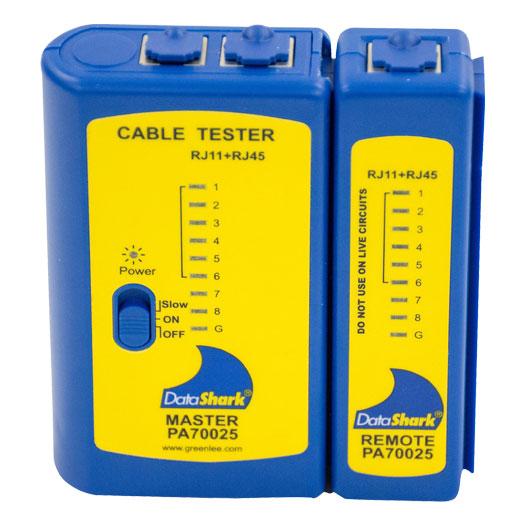

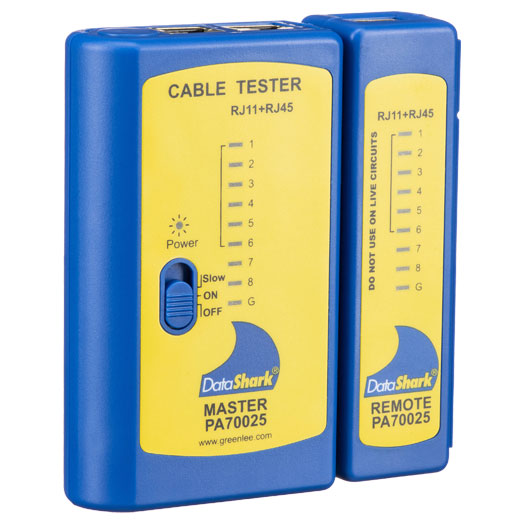

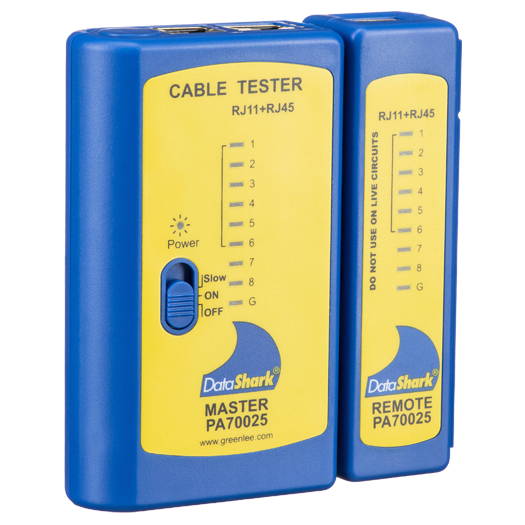

LAN PA70025 Datashark Network Cable Tester

LAN Cable Tester

The Data Shark Lan Cable Tester from Greenlee Communications tests the continuity of 8-way RJ45 data and network cable and 6-way RJ11 telephone patch cords and installed cable runs. It maps the cable, line by line and identifies good connections, opens, shorts and crosses.

Datashark PA70025 is manufactured by Tempo Communications (Previously Greenlee), California U.S.A

Product Specification

Connection Type

RJ11, RJ12, and RJ45 UTP modular plug




Dimensions (mm)

97 x 58 x 33mm


2*AAA cells

Battery life

>50 hours


Lan & AV Cable check tester

Ordering Code

LAN PA70025

Supply includes

Master unit, remote unit, 2 *RJ45 patch cords, 9v battery

  • Maps connector and cable pin out
  • Tests cables up to 1,650ft or 500 m
  • Identifies cross-over telephone connections
  • Automatically scans connected cables when activated
  • Two selectable scan speeds: normal and slow
  • Includes a pair of RJ45 patch cords and one 9V battery
  • Contained in a durable nylon carrying case with belt loop
  • Can be slid together with the remote reversible for RJ45 or RJ11/12 testing
  • Can also test RJ11 and RJ12 patch cables and connections
Frequently Asked Questions (5 answered questions)
it is used for both typ RJ11 and RJ45

Person name: Asian

yes, it can troublshoot the fault in cable

Person name: Asian

No, it can detect only fault not the distance. To know the distance, please refer TDR

Person name: Asian

Non recharegable battery i.e. 9V

Person name: Asian

it is USA make product.

Person name: Asian
