Duct Mandrels

  • Product Description
  • Specifications
  • Features

Duct integrity/Proving Mandrel are pulled through duct to prove joint integrity and test duct integrity for round duct, conduit or interdict used in telecom, gas & water networks.

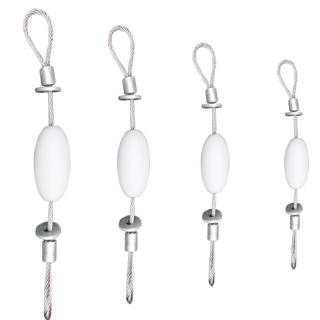

Each mandrel has a Teflon body with two braided steel loop eyes on each end for versatility and strength. It is designed to give an 80% fill, based on size of mandrel chosen. Duct mandrel offered are based on highest grade industrial polymers & inputs.

Duct mandrel are available in various size options based on pipe inner dia sizes .

S. No. Item Code Pipe ID Overall Length Mandrel Diameter Eye Length Load Capicity
    In mm In mm In mm In mm In mm
1 DM14 14 200 11 34 9786
2 DM18 18 200 14 34 9786
3 DM24 24 205 19 34 9786
4 DM28 28 205 22 40 9786
5 DM32 32 205 25 40 9786
6 DM38 38 225 30 40 9786
7 DM48 48 315 38 6 9786
8 DM78 78 400 62 60 9786
  • Prove joint integrity
  • Test duct integrity
  • Duct mandrel offered is based on highest grade industrial polymers & inputs.
  • Duct mandrel are available in various size options based on pipe inner dia sizes
 Product Info Downloads
Related Products:
Recently Viewed Products:
Duct Mandrels
  • Product Description
  • Specifications
  • Features

Duct integrity/Proving Mandrel are pulled through duct to prove joint integrity and test duct integrity for round duct, conduit or interdict used in telecom, gas & water networks.

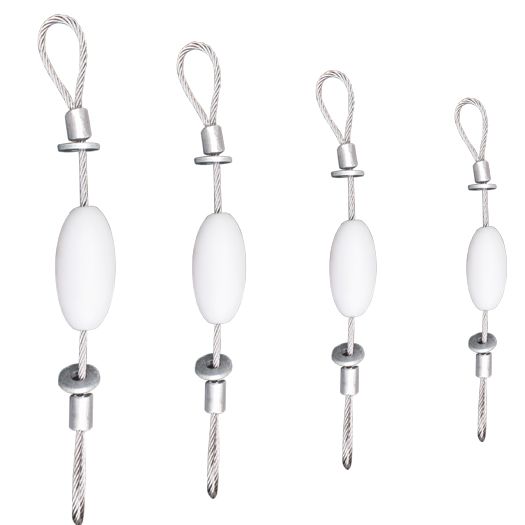

Each mandrel has a Teflon body with two braided steel loop eyes on each end for versatility and strength. It is designed to give an 80% fill, based on size of mandrel chosen. Duct mandrel offered are based on highest grade industrial polymers & inputs.
