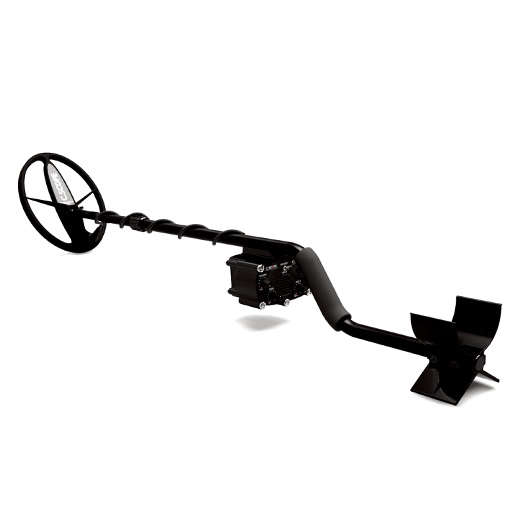

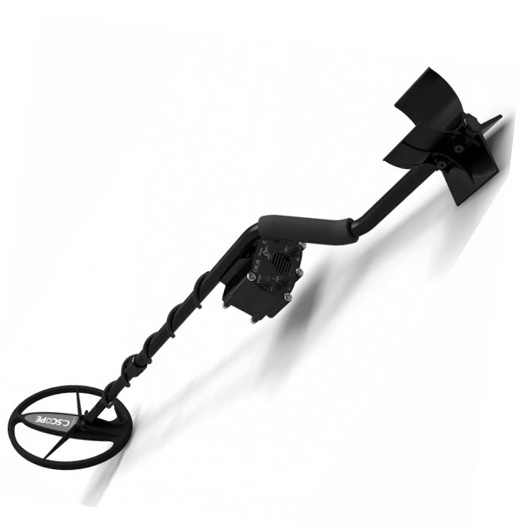

CS4MX1 Metal Detector

CS4MXi Metal Detector operates on 17kHz frequency operating system developed by C.Scope Fitted with the new generation signal processor, the 4MXi metal detector produces sharp and fast signal response with a lightning recovery time.

The CS4MXi features the option of three interchangeable heads to enable deeper detection, greater ground coverage and optimized performance for a variety of situations. Two of these are 2D elliptical and one concentric.

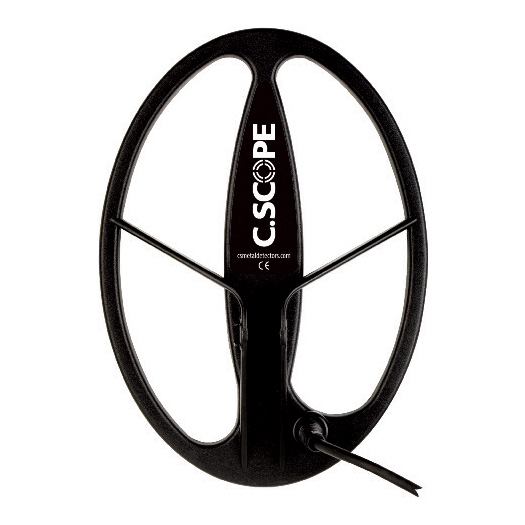

The CS4MXi is supplied as standard with the 8 x 11” elliptical search head, and has an Auto and Variable Ground Exclude Control for more precise ground elimination on mineralized sites.

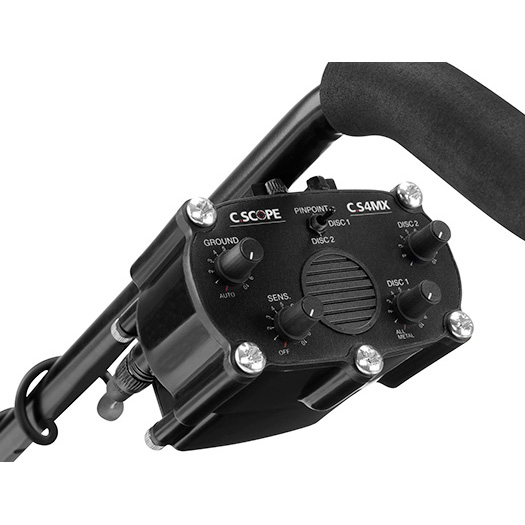

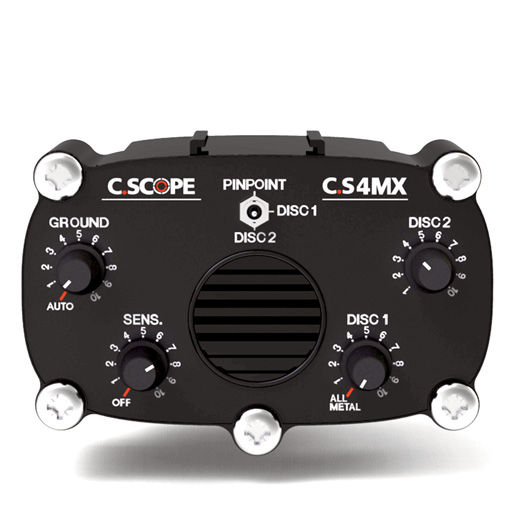

Two Discriminate Controls for an instant comparison and analysis of signals. Discriminate 1 can be set low to eliminate iron and Discriminate 2 set high to still accept small hammered silver. There is also a Pinpoint Function which switches off the motion effect so that the search head can be brought to rest over the exact target location.

Specifications
Product Specification
Weight 1.45 kg including batteries
Frequency 17kHz
Mode Motion
Power 8 Alkaline 1.5 volt AA or rechargeable NiMH pack, Battery life approximately 50hours
Interchangeble lightweight search heads

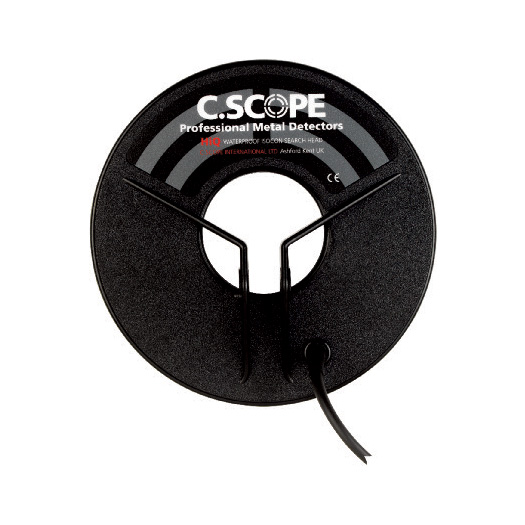

8" (20cm) concentric - available as OPTION
8 X 11" (20X28cm) elliptical 2D - supplied as STANDARD
11 X 14" (28X34cm) elliptical 2D - available as OPTION

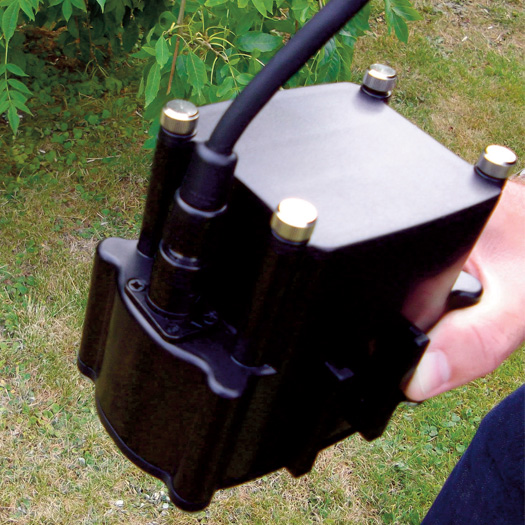

Control box In rugged pressure tested ABS moulding. Hipmount facility.
Two part stem With cam knurled nut locking and hole and pin alignment and lenght adjustment. GRP lower stem with ultra strong bolt to the search head
Features
Features
  • Sharp and fast signal response with a lightning recovery time.
  • Three interchangeable heads to enable deeper detection, greater ground coverage and optimized performance for a variety of situations.
  • Auto and variable ground exclude control
  • Two discriminate controls
  • Pinpoint Function
