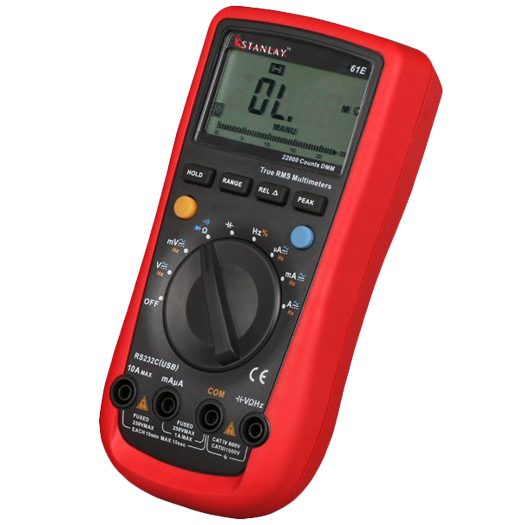

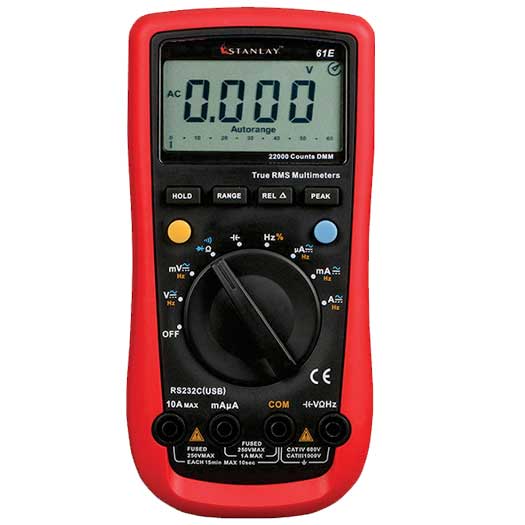

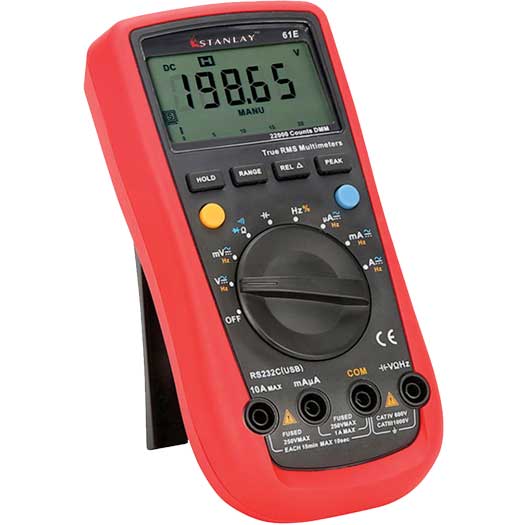

61E True RMS Digital Multimeter

Top end professional Digital Multimeter providing True RMS measurements, providing high resistance & capacitance measurement capability, frequency up to 220Hz. ACV up to 750V and DVC up to 1000V.

High accuracy, 22000 counts, with Backlight display.

Specifications
Product Specification

Model Selection

61E

Auto Range

True RMS

Yes

Display Count

22000

Analogue bar graph

46 segments

Bandwidth

45Hz-10kHz

Measurements

DC Voltage

220mV/2.2V/22V/220V/1000V

Accuracy

± (0.1% + 2)

AC Voltage

220mV/2.2V/22V/220V/750V



Accuracy

± (0.8%+10)

DC Current



200μA/2200μA/22mA/220mA/2.2A/10A



Accuracy

± (0.5%+10)

AC Current



200μA/2200μA/22mA/220mA/2.2A/10A



Accuracy

± (0.8%+10)

Resistance

220Ω/2.2kΩ/22kΩ/220kΩ/2.2MΩ/220MΩ

Accuracy

± (0.5%+10)

Capacitance



22nF/220nF/2.2μF/22μF/220μF/2.2mF/22mF/220mF



Accuracy

± (3.0%+5)

Frequency

10Hz-220MHz ± (0.01%+5)

Duty Cycle

0.1% ~ 99.9%

Diode Test

√

Continuity Buzzer

NCV

-

Transistor Test

-

Data/Transmission

RS-232 / USB

√

Display

Max/Min

√

Relative Mode

√

Peak Hold

√

Analog Bar

√

Data Hold

LCD Backlight

√

Other Features

Input Impedance

≥10MΩ

Category Safety Ratings

CAT III 1000V CAT IV 600V

General Characteristics

Size

180mm* 87mm*47mm

Weight

370g

Power

9V battery (6F22)

Display

65mm x 43mm

Standard Accessories

Battery, test leads, multi-purpose socket, RS-232 interface cable, PC software CD



Features
Features
  • MAX/MIN/REL modes
  • RS-232 / USB interface
  • Analog bar graph
  • True RMS
  • Peak hold
  • Range: Auto or Manual
