Pavetesting Continuous Friction Tester

  • Product Description
  • Specifications
  • Features
  • Video

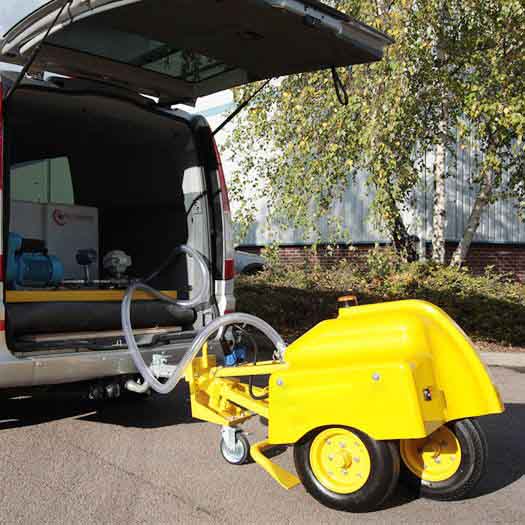

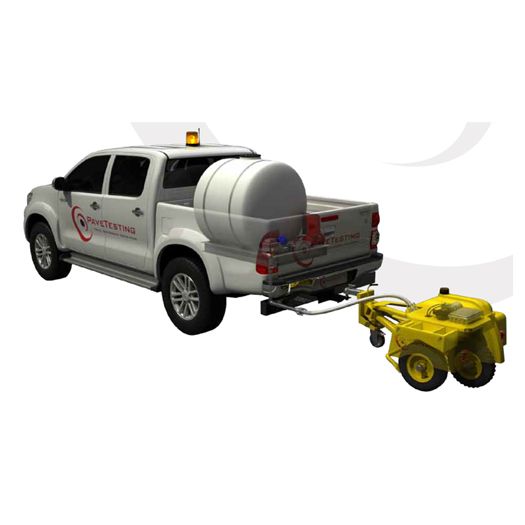

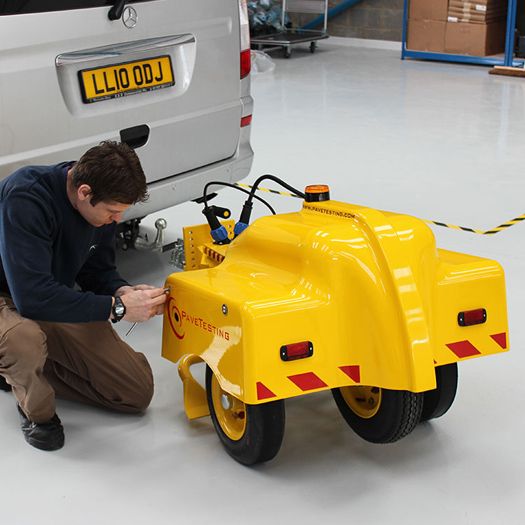

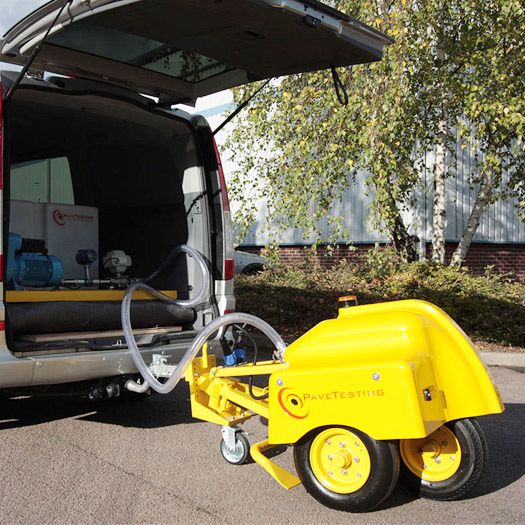

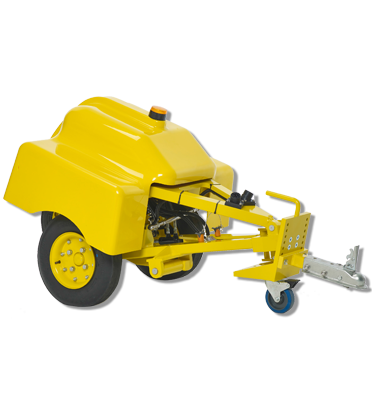

The Continuous Friction Tester from Pavetesting  designed specifically around the requirements of international highway agencies, and Aviation regulations is a trailer mounted device that is connected to a suitable tow vehicle and is able to measure the coefficient of friction of the pavement surface at speeds of up to 135kmph.

Robust, consistent and 100% reliable in all environmental conditions. Software is provided free of charge with no license requirements and updated regularly to keep in line with the latest international standards and regulations. Output data has been harmonised with the International SCRIM Friction Tester, provided on a graphical software based on standard windows platform.

Ideal equipment for Airfield runways to provide adequate skid resistance to ensure the safe directional control and breaking of aircraft operating on the surface,especially for airfields which receive high rainfall or snow.


Benefits:



  • Simple Proven Design
  • No Belt Breakages
  • 100% reliable communications system
  • Low temperature tested
  • Standard tyres at affordable price
  • Stable trailer design at high speeds
  • True calibration procedure
  • Made in the UK
Dimensions:
Length 1553mm
Width 960mm
Height 570mm
Towing Hitch Height 350 ±12 mm
Operational Weight (Including ballast but excluding jockey wheel) 254 kg
Weight distribution with jockey wheel fitted:
At Port wheel – at calibration height 77.5 ±l kg
At Starboard wheel - at calibration height 77.5 ±l kg
At Rear wheel 53.5 kg nominal
Tyres:
Friction Measuring Tyres (Special slicks) ASTM E1551
Distance measuring wheel 4.8x8x4 6 ply
Tyre Pressures:
Friction Measuring Tyres 0.7 ±0.035 kg/sq cm
Distance MeasuringWheel 2.1 ±0.137 kg/sq cm
Towing Speed:
Normal Friction Testing 48 kph to 96 kph
may be operated at 128 kph
Below are a few of the standard key features that are employed by the CFT :
Benefits :
  • International Design
  • Simple Proven Design
  • Microsoft Windows graphical software
  • No Belt Breakages
  • American Standard for Tested Materials
  • 100% reliable communications system
  • Ambient and Ground temperature
  • Low temperature tested
  • Testing Speed upto 135 kmph
  • Standard tyres at affordable price
  • Standardized water delivery system
  • Stable trailer design at high speeds
  • Output data in standard database
  • True calibration procedure
  • Multi language support
  • Made in the UK
  • Simple Proven Design

  • No Belt Breakages

  • 100% reliable communications system

  • Low temperature tested

  • Standard tyres at affordable price

  • Stable trailer design at high speeds

  • True calibration procedure

  • Made in the UK
