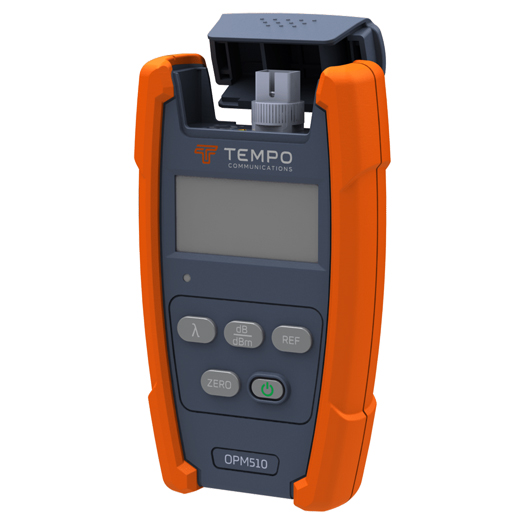

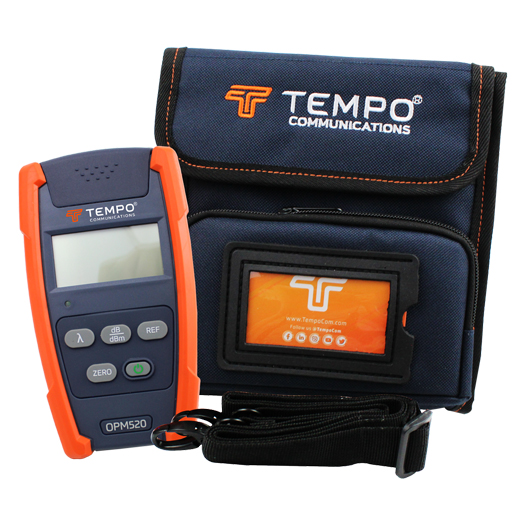

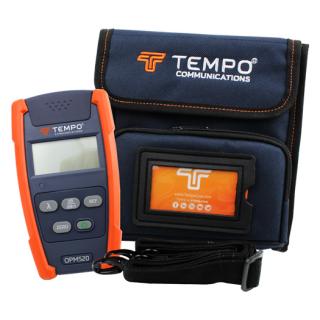

OPM 500 Optical Power Meter

OPM-500 series hand-held multiwavelength optical power meter from Tempo Communications, USA can measure 850nm, 1300nm, 1310nm, 1490nm, 1550nm and 1625nm wavelength.

Equipped with InGaAs detector, the OPM-500 has high sensitivity for measuring high power optical signal accurately.

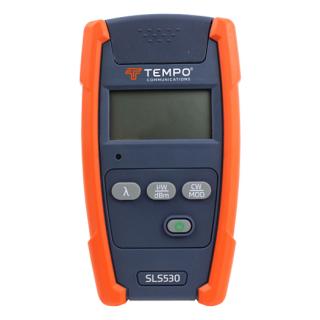

When used with a corresponding SLS500 series optical laser source, use tones on fiber to quickly identify fiber.
OPM-500 Optical Power Meter is compatible with LC, SC, ST and FC adaptor.
With a IP54 rugged exterior and battery life >100 hrs., the OPM-500 Optical power meter is a preferred model for efficient power measurement.

Tempo OPM500 series is available in two options:
1. OPM510 for measuring range -65 to +10 dBm
2. OPM522 for -50 to +27 dBm

OPM500 series optical power meter is ideal for optical network loss testing, insertion loss measurements & fiber maintenance.

Request Quote
OPM 500 Optical Power Meter
Features Specifications FAQ Downloads Video



Features
  • Filtered InGaAs for measuring high powered optical Signals
  • InGaAs detector for maximum Sensitivity
  • Singlemode and multimode measurement
  • Calibrated wavelengths of 850nm, 1300nm, 1310nm, 1490nm, 1550nm and 1625nm
  • 270Hz, 1kHz and 2kHz tone
  • IP54 ruggedized optical power meter
  • Auto off/ continous on operation
  • Use with bettery or 120m 240V AC Operation (Optional)
Specifications

MODEL

OPM510

OPM520

Cal. Wavelength (nm)

850,1300,1310,1490,1550,1625

Measure range (dBm)

-65~+10(1)

-50~+27

Detector type

InGaAs

Accuracy (dB)

±5% ±0.01nW

(±0.5dB@850nm)

±5% ±1nW

(±0.5dB@850nm)

Linearity

+/-O.5dB (+1O to-3dBm)

+/-O.1dB (-3 to-5OdBm)

+/-O.5dB (-5O to-65dBm)

+/-O.5dB (+27 to-3dBm)

+/-O.1dB (-3 to-5OdBm)

Resolution (dB)

0.01 dB

Functions

W/mW/μW/dBm/dB(REF)/

MOD TONE DETECT 27OHz, 1kHz, 2kHz

Connector Type

SC/PC (Interchangeable LC,ST,SC)

Fiber Type

Singlemode & multimode

Battery life

> 100 Hours

Power supply

9V Alkaline or 1000mAh lithium battery /9V AC adapter

Operating Temperature

-10ºC-50ºC

Storage Temperature

-20ºC-70ºC

Relative Humidity

0 to 95% (NON-CONDENSING)

Weight

0.68lbs (300g)

Dimensions (HxWxT)

6.1x3.5x1.3'' (155x88x33mm)

IP Rating

IP54

Vibration

5Hz to 150Hz, Amplitude+0.15mm

Shock

Peak acceleration 25g at a pluse duration of 6ms

Compliance

CE, FCC
FAQ

What is the OPM-500 Optical Power Meter used for?

The OPM-500 is a professional optical power meter designed for measuring optical signal levels, insertion loss, and fiber link performance in telecom, FTTH, CATV, data center, and enterprise fiber networks.

What optical power range can the OPM-500 measure?

The OPM-500 measures from +26 dBm to -50 dBm, making it suitable for both high-power transmitters and low-level network signals.

Which wavelengths are supported?

The OPM-500 supports 850, 980, 1300, 1310, 1490, 1550, and 1625 nm, covering multimode, single-mode, FTTH, GPON, and CWDM applications.

What detector technology is used in the OPM-500?

The instrument utilizes a high-precision InGaAs photodiode detector, ensuring stable and accurate measurements across the full telecom wavelength range.

What is the measurement accuracy of the OPM-500?

The OPM-500 provides ±0.15 dB calibrated accuracy, suitable for fiber certification, commissioning, and maintenance activities.

Can the OPM-500 measure insertion loss?

Yes. When paired with a compatible light source, the OPM-500 performs end-to-end insertion loss testing, helping verify connector, splice, and cable performance.

Does the OPM-500 support absolute and relative measurements?

Yes. The meter displays readings in dBm, mW, µW, and dB, allowing both power level and loss measurements.

What type of display does the OPM-500 have?

The OPM-500 features a large backlit LCD display, ensuring easy viewing in indoor equipment rooms and outdoor field environments.

What is the battery life of the OPM-500?

The OPM-500 provides up to 100 hours of continuous operation, minimizing downtime during long installation or maintenance projects.

Is the OPM-500 suitable for GPON and FTTH networks?

Yes. Support for 1310 nm, 1490 nm, and 1550 nm wavelengths makes it suitable for GPON, FTTH, and broadband fiber deployments.

Which connector types can be used with the OPM-500?

The OPM-500 supports interchangeable adapters for SC, FC, ST, LC, and other common fiber connectors.

Can the OPM-500 be used for data center fiber testing?

Yes. It is widely used for fiber patch panel verification, link loss testing, and troubleshooting in enterprise and data center environments.

How portable is the OPM-500?

The OPM-500 features a compact handheld design, making it easy for field technicians to carry during fiber installation and maintenance work.

What industries commonly use the OPM-500?

Telecom operators, ISPs, FTTH contractors, railways, power utilities, data centers, defense networks, and enterprise IT teams.

What is the biggest advantage of the OPM-500?

The combination of +26 to -50 dBm measurement range, 850–1625 nm wavelength support, 100-hour battery life, InGaAs detector, and field-rugged handheld design makes it a versatile power meter for almost every fiber testing application.

Have a question to which you're seeking an answer ?

Type your question in the Search box , fill in your name, and email ID and press send.

We will respond with the answer. Rest assured that we respect your privacy, and your details will remain confidential.

Downloads

Product Datasheet

File Type: PDF File Size: 1.32 MB
View Download
