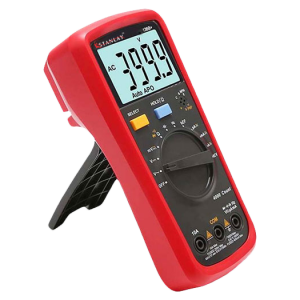

The Handheld digital Multimeter featured are true professional grade electrical test and measurement instrumentation products. Standard feature foremost include 2 RMS features auto ranging resistance, capacitance, and frequency. Apart from standard ACV, DCV and ACA, DCA measurement, choose between non data logging and data logging, versions medium resistance / capacity.
Multimeter Selection Guide :
|
Category |
Advanced |
Mid Range |
Economy |
|||||
|
Type |
Intelligent |
Intelligent |
Industrial |
Modern |
General |
Modern |
General |
General |
|
Features |
33A+/D+ |
|||||||
|
Display Count |
60000 |
40000 |
6000 |
4000/6000/22000 |
2000 |
4000 |
4000 |
2000/2000 |
|
Auto Range |
. |
. |
. |
. |
NA |
. |
NA |
./-- |
|
Bandwidths |
100kHz |
100kHz |
1kHz |
400Hz/3kHz/10kHz |
NA |
400Hz |
400Hz |
NA |
|
True RMS |
. |
. |
. |
--/./. |
NA |
NA |
NA |
NA |
|
Measurements |
|
|
|
|
|
|
|
|
|
DC Voltage |
1000V |
1000V |
1000V |
1000V |
1000V |
1000V |
1000V |
600V |
|
AC Voltage |
1000V |
1000V |
750V |
750V |
750V |
1000V |
750V |
600V |
|
DC Current |
10A |
10A |
20A |
10A |
20A |
10A |
10A |
10A |
|
AC Current |
10A |
10A |
20A |
10A |
20A |
10A |
10A |
10A/-- |
|
Resistance |
60MΩ |
40MΩ |
60MΩ |
40MΩ/60MΩ/220MΩ |
200MΩ |
40MΩ |
40MΩ |
200MΩ |
|
Capacitance |
60mF |
40mF |
60mF |
4000uF/4000uF/220mF |
100uF |
40mF |
10mF |
2mF/-- |
|
Conductance |
60nS |
NA |
NA |
NA |
NA |
NA |
NA |
NA |
|
Frequency |
60MHz |
400MHz |
40MHz |
10MHz/10MHz/200MHz |
NA |
40MHz |
1MHz |
NA |
|
Duty Cycle |
. |
. |
NA |
. |
NA |
NA |
NA |
NA |
|
Temperature |
1000°C |
1000°C |
1000°C |
NA |
NA |
NA |
1000°C |
NA |
|
Diode Test |
. |
. |
. |
. |
. |
. |
. |
. |
|
Transistor Test |
NA |
NA |
NA |
. /--/-- |
. |
. |
. |
NA |
|
Continuity Buzzer |
. |
. |
. |
. |
. |
. |
. |
. |
|
NCV |
NA |
NA |
NA |
. /--/-- |
NA |
. |
. |
--/. |
|
Data/Transmission |
|
|
|
|
|
|
|
|
|
MAX/MIN |
. |
. |
. |
. |
NA |
NA |
NA |
NA |
|
AVG |
. |
NA |
NA |
NA |
NA |
NA |
NA |
NA |
|
Relative |
. |
. |
NA |
. |
NA |
NA |
NA |
NA |
|
Peak Hold |
. |
NA |
. |
--/--/. |
NA |
NA |
NA |
NA |
|
Data Logging |
. |
. |
NA |
NA |
NA |
NA |
NA |
NA |
|
USB |
. |
. |
NA |
--/./. |
NA |
NA |
NA |
NA |
|
RS-232 |
NA |
NA |
NA |
--/./. |
NA |
NA |
NA |
NA |
|
Bluetooth® |
. |
. |
NA |
NA |
NA |
NA |
NA |
NA |
|
Display |
|
|
|
|
|
|
|
|
|
AC + DC |
. |
. |
NA |
NA |
NA |
NA |
NA |
NA |
|
Analog Bar |
. |
. |
NA |
. |
NA |
NA |
NA |
NA |
|
Data Hold |
. |
. |
NA |
. |
. |
. |
. |
./-- |
|
Auto Power Off |
. |
. |
. |
././-- |
. |
. |
. |
. |
|
LCD Backlight |
. |
. |
. |
. |
NA |
. |
. |
. |
|
Other Features |
|
|
|
|
|
|
|
|
|
4-20mA |
NA |
. |
NA |
NA |
NA |
NA |
NA |
NA |
|
Input Impedance |
≥10MΩ |
≥10MΩ |
NA |
≥10MΩ |
≥10MΩ |
≥10MΩ |
≥10MΩ |
≥10MΩ |
|
Category Safety Ratings |
CAT III 1000V CAT IV 600V |
CAT III 1000V CAT IV 600V |
CAT III 1000V CAT IV 600V |
CAT III 1000V CAT IV 600V |
CAT II 1000V CAT III 600V |
CAT II 1000V CAT III 600V |
CAT II 1000V CAT III 600V |
CAT II 600V |
|
CE Certiļ¬cation |
. |
. |
. |
. |
. |
– |
. |
-- |
