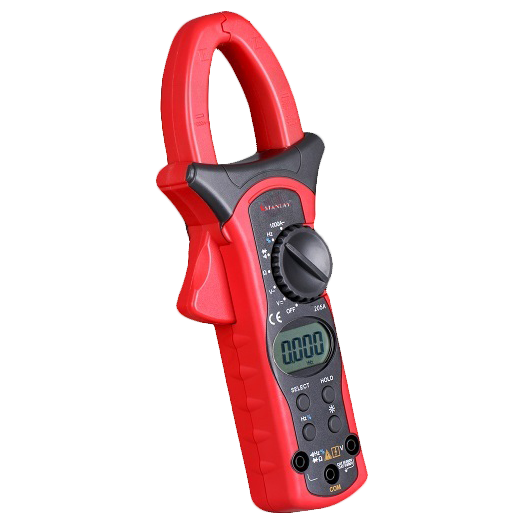

1000 A AC Digital Clamp Meter 205A

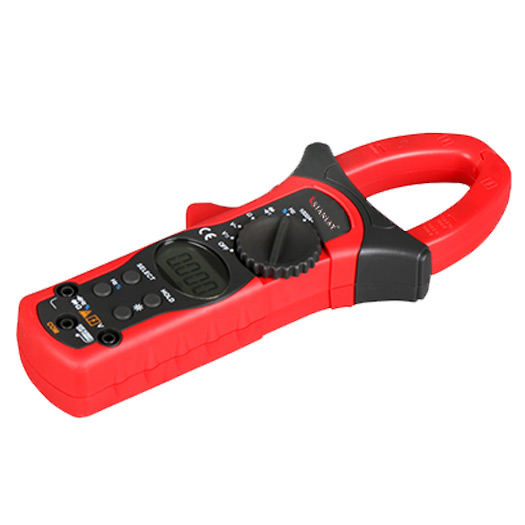

ST205A Digital Clamp Meter

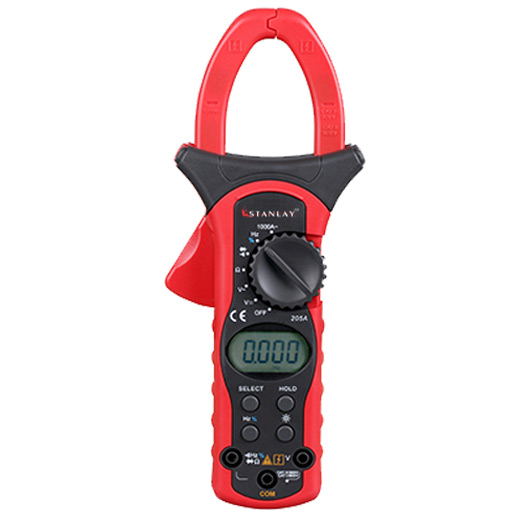

ST205A Digital Clamp Meter

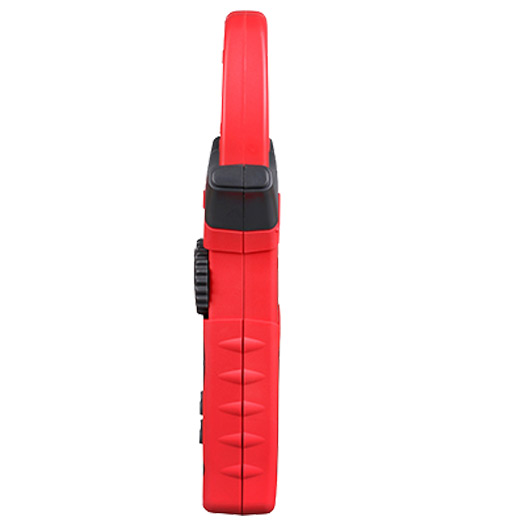

ST205A Clamp Meter
ST205A
1000 A AC Digital Clamp Meter 205A ST205A Digital Clamp Meter ST205A Digital Clamp Meter ST205A Clamp Meter ST205A

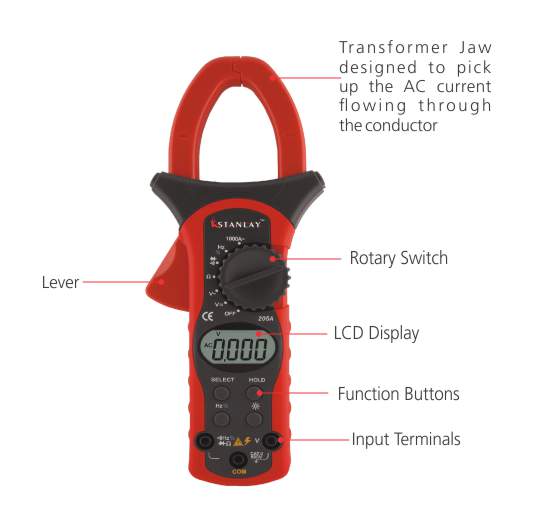

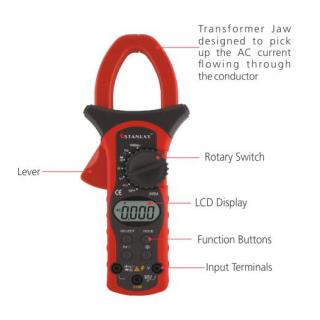

1000 A AC Digital Clamp Meter 205A

205A economy range clamp meter is a professional digital clamp meter with 40mm jaw. It is ergonomically designed, allowing better handling for users wearing electrical gloves. 205A is a great choice for electrical professionals in need of measuring up to 1000A AC current.

The meter is an ideal tool for maintenance in smelting, manufacturing, petroleum, electric power, chemical and other industries.

Request Quote
1000 A AC Digital Clamp Meter 205A
Features Specifications FAQ Downloads



Features
  • 1000A AC current,3/s sampling rate
  • 4000 Display count, Auto polarity indication
  • LCD Backlight, Duty cycle
  • Low battery indication
  • Data hold, Auto power off
Specifications

Auto Range

√

True RMS

-

Display Count

4000

Jaw Size

40mm

Measurements



Accuracy

AC Current (A)

1000A

± (1.5%+5)

AC Voltage (V)

600V

± (1.2%+5)

DC Voltage (V)

600V

± (0.8%+1)

Resistance (Ω)

40MΩ

± (1%+2)

Frequency (Hz)

10Hz~10MHz

± (0.1%+3)

Other Features

√

Duty Cycle

√

Diode Test

√

Auto Power Off

√

Continuity Buzzer

√

Low Battery Indication

√

Data Hold

√

LCD Backlight

√

Full Icon Display

√

Input Impedance for DCV (Around 10mΩ)

√

Category Safety Ratings

CAT III 300V, CAT II 600V

General Characteristics

Power

9V Battery (6F22)

Display

37mm x 18mm

Product Net Weight

350g

Product Size

236mm x 97mm x 40mm

Standard Accessories

Battery, Test Leads, Carrying Bag



FAQ

What is the SCM205A 1000A AC Digital Clamp Meter used for?

The SCM205A is designed for high-current AC electrical measurements up to 1000A, making it suitable for industrial maintenance, commercial electrical systems, HVAC, utilities, and power distribution applications.

What is the maximum AC current measurement range of SCM205A?

The SCM205A supports AC current measurement up to 1000A, enabling safe testing of heavy electrical loads and industrial power systems.

Does the SCM205A support AC voltage measurement?

Yes, the SCM205A supports AC voltage measurement up to 750V AC for industrial and commercial electrical diagnostics.

Can the SCM205A measure DC voltage?

Yes, the SCM205A supports DC voltage measurement up to 1000V DC.

What is the advantage of the 1000A current range in SCM205A?

The high current range allows technicians to measure industrial motors, generators, transformers, HVAC systems, and power distribution circuits without disconnecting conductors.

Does the SCM205A support True RMS measurement?

Yes, the SCM205A features True RMS technology, ensuring accurate readings on distorted and non-linear waveforms commonly found in industrial systems.

Why is True RMS important in industrial clamp meters?

True RMS provides accurate measurement on VFDs, UPS systems, motor drives, solar systems, and industrial automation equipment where standard meters may provide inaccurate readings.

What jaw opening size does the SCM205A provide?

The SCM205A features a large clamp jaw opening of approximately 42 mm, allowing easy measurement of thick industrial conductors and cables.

Why is a large jaw opening important in clamp meters?

A wide jaw opening enables safe and convenient measurement of large cables and high-current conductors without disconnecting the circuit.

Does the SCM205A include NCV (Non-Contact Voltage) detection?

Yes, the SCM205A includes NCV functionality for detecting live voltage without direct electrical contact.

How does NCV improve electrical safety?

NCV helps electricians identify energized circuits quickly and safely without touching exposed conductors.

What display type is used in the SCM205A?

The SCM205A features a large digital LCD display with backlight for clear visibility during industrial and field operations.

Does the SCM205A include a backlit display?

Yes, the backlit LCD display improves readability inside dark electrical panels, substations, and industrial workspaces.

What is the display count of SCM205A?

The SCM205A typically provides a 6000-count digital display for high-resolution measurement readings.

Does the SCM205A support auto ranging?

Yes, the SCM205A includes auto-ranging functionality for faster and more accurate measurements.

What is the benefit of auto ranging in SCM205A?

Auto ranging automatically selects the optimal measurement range, reducing manual adjustments and improving troubleshooting speed.

Does the SCM205A include Data Hold functionality?

Yes, the Data Hold feature allows users to freeze measurement readings on the display for easier recording and analysis.

Can the SCM205A measure resistance and continuity?

Yes, the SCM205A supports resistance measurement and audible continuity testing for electrical troubleshooting.

Does the SCM205A support capacitance and frequency measurement?

Yes, capacitance and frequency measurement functions are included for advanced electrical diagnostics.

Is the SCM205A suitable for industrial motor and VFD testing?

Yes, True RMS technology enables accurate measurements in motor drives, VFD-controlled systems, and industrial automation environments.

Can the SCM205A be used in HVAC applications?

Yes, capacitance, frequency, and AC current measurement functions make it suitable for HVAC diagnostics and maintenance.

Is the SCM205A suitable for electrical maintenance work?

Yes, the SCM205A is designed for industrial electrical maintenance, utility applications, field troubleshooting, and commercial electrical systems.

What are the major technical advantages of SCM205A?

Key advantages include 1000A AC measurement, True RMS accuracy, 42 mm jaw opening, NCV detection, 6000-count backlit LCD display, auto ranging, overload protection, and industrial-grade reliability.

What powers the SCM205A clamp meter?

The SCM205A is battery powered for portable operation in industrial and field environments.

Have a question to which you're seeking an answer ?

Type your question in the Search box , fill in your name, and email ID and press send.

We will respond with the answer. Rest assured that we respect your privacy, and your details will remain confidential.

Downloads

Product Datasheet

File Type: PDF File Size: 695.1 KB
View Download
