Hydraulic Anchor Load Cells

Hydraulic Anchor Load Cells

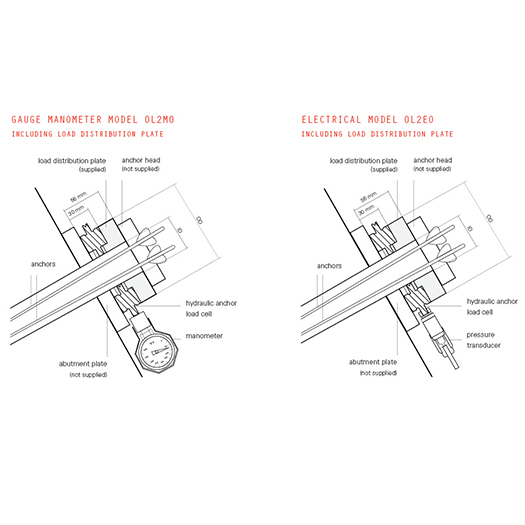

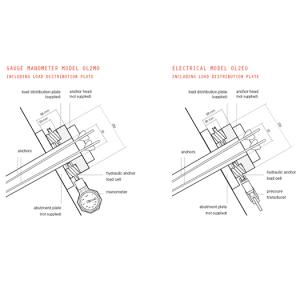

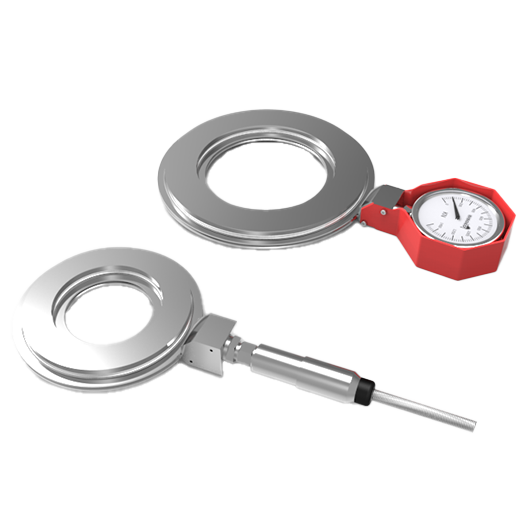

Sisgeo's Hydraulic Anchor Load Cells are designed for precise load monitoring in various geotechnical applications. These load cells feature a Bourdon manometer or optional pressure transducer for accurate measurements, ideal for challenging environments such as tunnelling, retaining walls, and deep excavations. Their rugged construction ensures reliability, even under harsh conditions.

Typically, the user should select bill of materials based on deployment scenario:

1.      Bourdon Manometer: For direct load measurement.

2.      Data Logging Interface: This is the interface that allows the load cells to connect with compatible data loggers for data collection and monitoring.

• MIND Portable Readout: A compact, multichannel readout unit for local readings of Sisgeo instruments.
• CRD-400 READOUT: CRD-400 is a new generation multipurpose readout designed to take readings of all instruments including vibrating wire.
• WR-Log Wireless Node: Wireless data transmission and remote monitoring through the node.
• OMNIAlog Datalogger: Centralized data collection for remote monitoring and analysis.

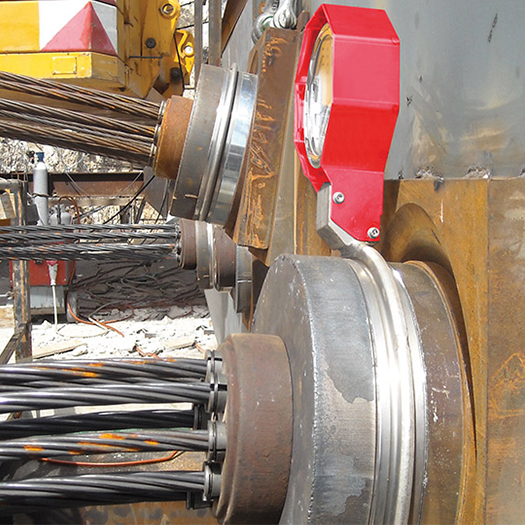

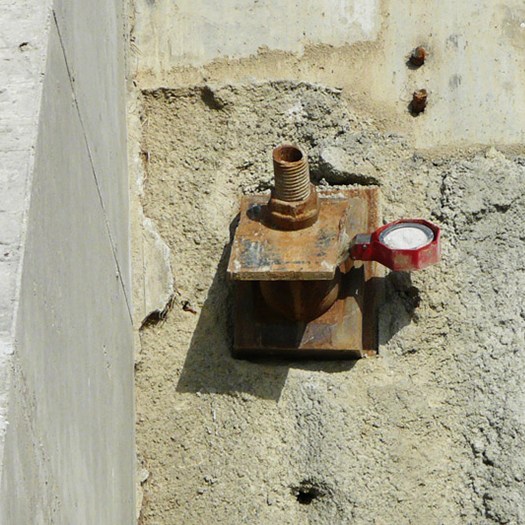

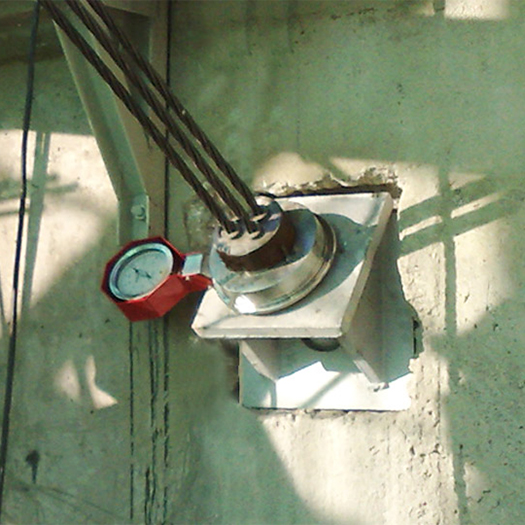

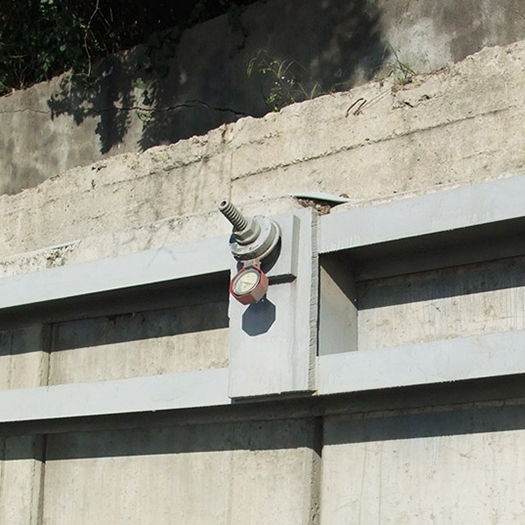

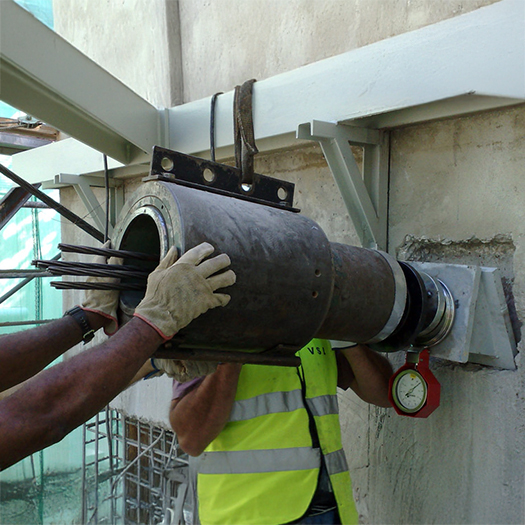

Applications of Hydraulic Anchor Load Cells:

• Retaining walls
• Deep excavations
• Tunnelling
• Diaphragm walls
• Tie-backs
• Struts
• Rock bolts
• Landslides
