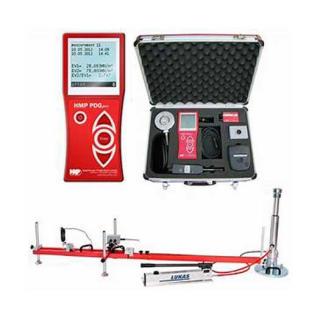

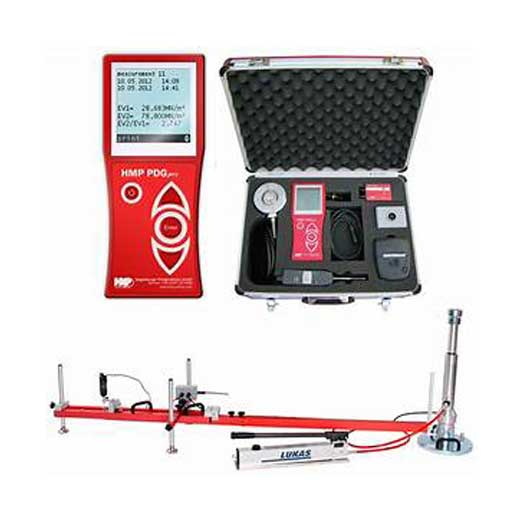

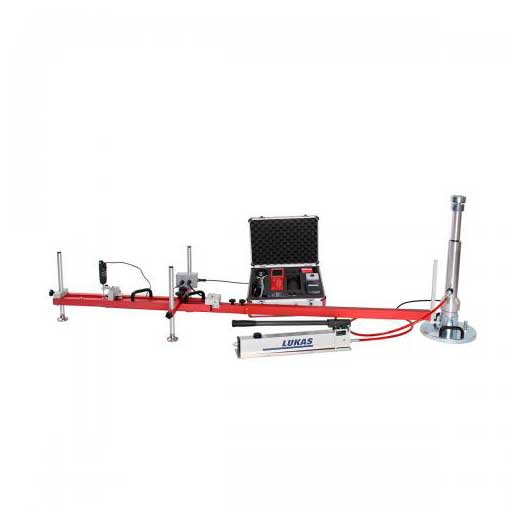

HMP PDG pro Digital Static Plate Load Tester

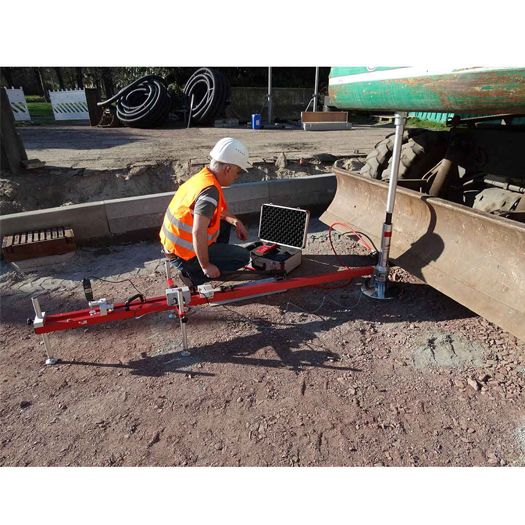

The HMP PDG Pro Static Plate Load Test to determine load settlement lines, to evaluate the deformability and the load capacity of the soil .It has huge application in earthworks and foundation engineering as well as road construction.

The static plate load test is indicated in DIN 18 134 and conforms to ASTM D1194/1195/1196. The modulus of deformation Ev is determined from the load settlement line of the first load (Ev1) and the second load (Ev2). Through the first loading a certain remaining deformation always obtains and therefore the proportion of the accordingly higher Ev2 value to the Ev1 value provides an indication to the attained compaction.

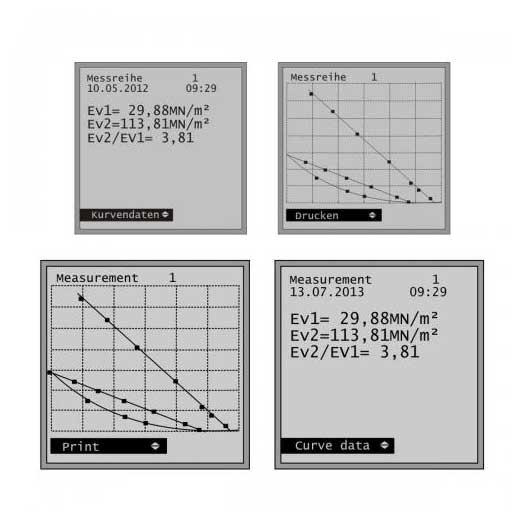

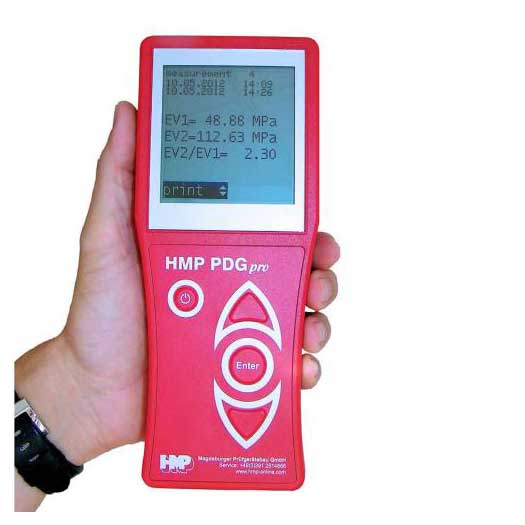

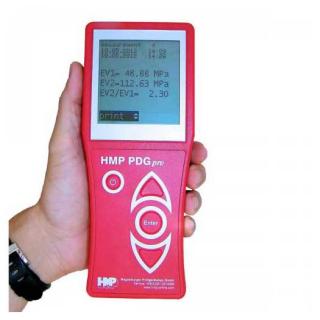

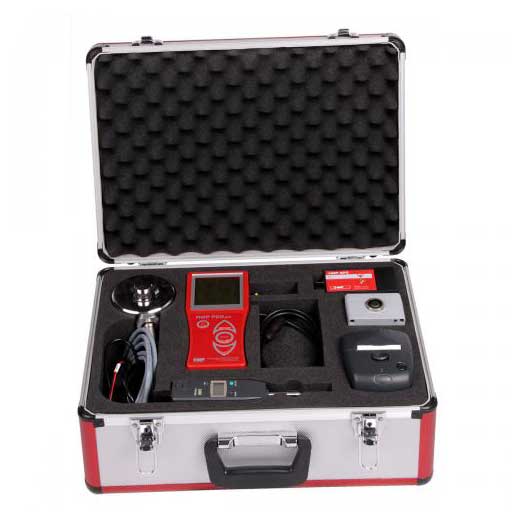

The load settlement lines can be read with the HMP PDG-K directly on the display.

The test results can be printed out immediately at the site via thermal printer or be revised later in the office on PC


  • State of art technology, reliable, precise, handy
  • Extra large 3.5 ‘display,non dazzling , illuminated
  • Intuitive menu navigation
  • Datasecure – error free automatic interpretation
  • Readout of the settlement curve on the display
  • USB interface for comfortable data transfer
  • Software for creation of professional test protocols
  • Highest flexibility due to modular design
Frequently Asked Questions (5 answered questions)
For changing result in negative settlement and possitive settlement.

Person name: Admin

Height should be atleast 65 cm between load and load plate.

Person name: Admin

Minimum 5Tonnes (Example:- Loaded Track, Road Roller)

Person name: Admin

Internal storage:- 200 measurement series External Storage on 4gb usb:- 200 measurement series

Person name: Admin

The load settlement line of the first load is called EV1 and second load is called EV2.

Person name: Admin
