R660 Integrated High Performance Rebar Detector

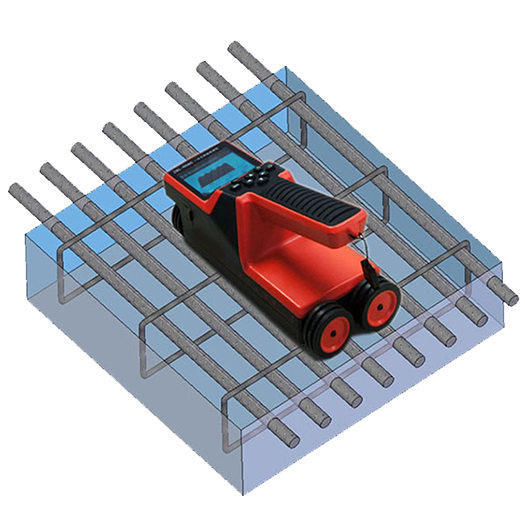

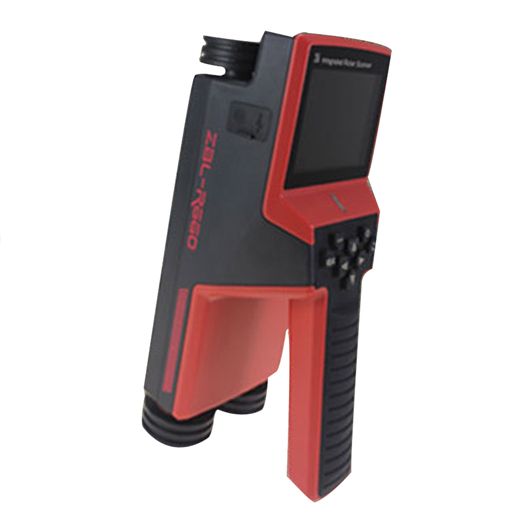

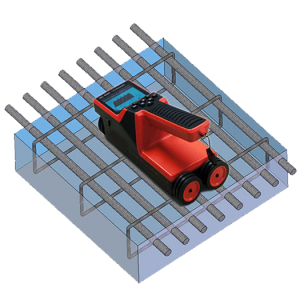

The R660 Integrated Rebar Detector is one of the most powerful and advanced rebar scanners ideal for large construction or retrofit jobs based on following key features: A unique 4 wheel design probe with built in encoder that allows rebar’s to be mapped with distance between adjacent rebar’s being measured in mm in real time allowing true survey of concrete structures.

Multi coil technology that allows rebar position to be located in real time accurately and fast. A built in algorithm allows measuring interface to provide the operator indication in real time that a rebar is being approached. In addition, multiple visual and LED indicators assist the operator utilize the instrument easily.

Multi-gear stirrup spacing correction function to enable more accurate measurement of cover thickness. A press of a button allows the operator to ascertain the rebar diameter when on top of rebar.

The R660 is IDEAL For use on Larger Structures : Upton 65 Meter of reinforced concrete surface can be scanned in one go, allowing FAST acquisition of rebar data including: Rebar location, cover, spacing between rebar & rebar dia on structures such as Bridges, Large Commercial or Industrial Buildings amongst others. The R660 is based on lithium ion rechargeable batteries with > 12 Hours operating time allowing full day usage at site without recharging.

Read more »
Request Quote
R660 Integrated High Performance Rebar Detector
Features
  • Rebar Position.
  • Spacing between rebars in mm automatically calculated, based on built in encoder.
  • Cover thickness.
  • Diameter Detection: Estimate Rebar diameter at the touch of a button.
  • Large 3.2'' LCD Color display screen.
  • During acquisition, approaching or adjacent rebar position is estimated and displayed on display in real time – Indicated by a Measuring data interface sign and an indicator LED light – both at the same time allowing operation by any level of operator to become quick and easy.
  • Three methods to confirm device is directly above rebar : When the device is directly above the rebar, centre line and targeting box coincide , a red indicator light is illuminated accompanied by a buzzing sound indicator.
  • Storage and Data transfer : The R660 Instrument also contains Large Data Storage upto 3584 Objects and Data transfer capability via USB or Bluetooth.
Specification
Rebar diameter range (in mm) ɸ6 ～ ɸ50
 >Protective layer thickness range range (mm) cover >First Range >2～100
  Second Range  2～200
Estimated error for protective layer ±1 (mm)
±2 (mm)
±3 (mm)
±4 (mm)
±5 (mm)
±6 (mm)		 2～60
61～80
81～90
91～133
134～169
170～200
Test accuracy (mm) 0.1
Three dimensional imagingü √
Rebar diameter measurement √
Precise scan √
Profile scan √
Grid scan √
Picture scan √
Three dimensional imaging √
Scan range Borderless
Data storage Upto 3584 objects
Data transfer USB & Bluetooth transmission
Screen 320 X 240, Color LCD Screen
Battery Operating Time >= 12 Hours
Size (mm) 240 x 93 x110
Weight (kg) 0.67
Probe Integrated
  Item Code: ST-R660A



FAQ

  • Is the instrument scan and display the bar on the screen

    Yes the instrument scan and display the bar on the screen

  • Is it show the center of the rebar for core extraction

    Yes, it shows spacing between rebar in mm automatically calculated, based on built in encoder and shows the center of the rebar.

  • Is it shows the diameter of the rebar.

    shows Rebar dia estimation.

  • Is it has Area scan future.

    Yes it has area scan, where you can scan both X and Y direction for Rebar and stirrups.

  • What cover depth it can achieve?

    up to 200mm.

Downloads
Title File Type File Size Downloads View Last Uploaded
Product Datasheet application/pdf 1.28 MB Download View May 27 2019 14:29:38
